Features
- Intel® Core™ i5-7300U 2.6 GHz/i3-7100U 2.4 GHz & Celeron® 3965U 2.2 GHz
- Supports 2 COM, 2 GbE LAN and 4 USB 3.0
- One swappable 2.5" HDD drive bay
- 2 HDMI with dual-view supported
- AMS.AXView intelligent remote monitoring software for IIoT
- Ultra-compact enclosure design
- Trusted Platform Module 1.2 (TPM 1.2)
Introduction

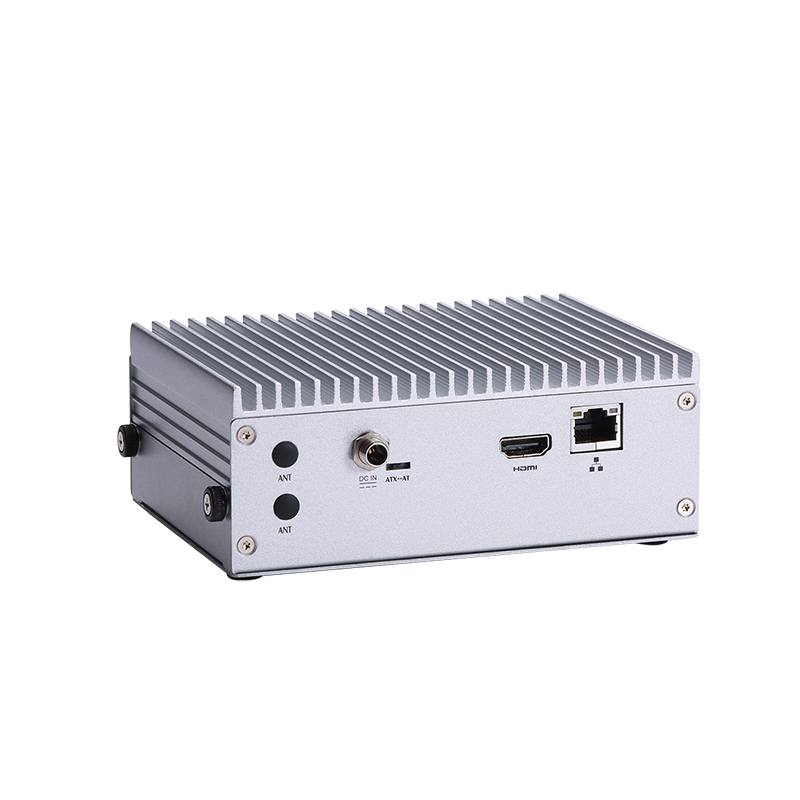

The eBOX560-512-FL is powered by the Intel® Core™ i5-7300U/i3-7100U or Celeron® 3965U processor. To enhance system efficiency, the embedded box PC supports one 260-pin DDR4-2133 SO-DIMM socket with up to 16 GB system memory. Two HDMI ports with up to 4K resolution are supported for dual independent display applications. The palm-sized fanless embedded system is dedicated to smart factory automation, thin clients, industrial controller system, digital signage and retail equipment. Axiomtek's eBOX560-512-FL was designed to operate reliably in industrial and embedded application environments. It is enclosed in IP40-rated heavy-duty aluminum extrusion and steel enclosure and offers a wide operating temperature range from -10°C ~ +50°C (+14°F ~ +122°F) and up to 3G vibration endurance.
