- Intel® Pentium® processor N4200/Celeron® processor N3350
- 1 DDR3L SO-DIMM, up to 8GB
- 2 USB 2.0 and 2 USB 3.0 ports
- PCI Express Mini Card with mSATA supported

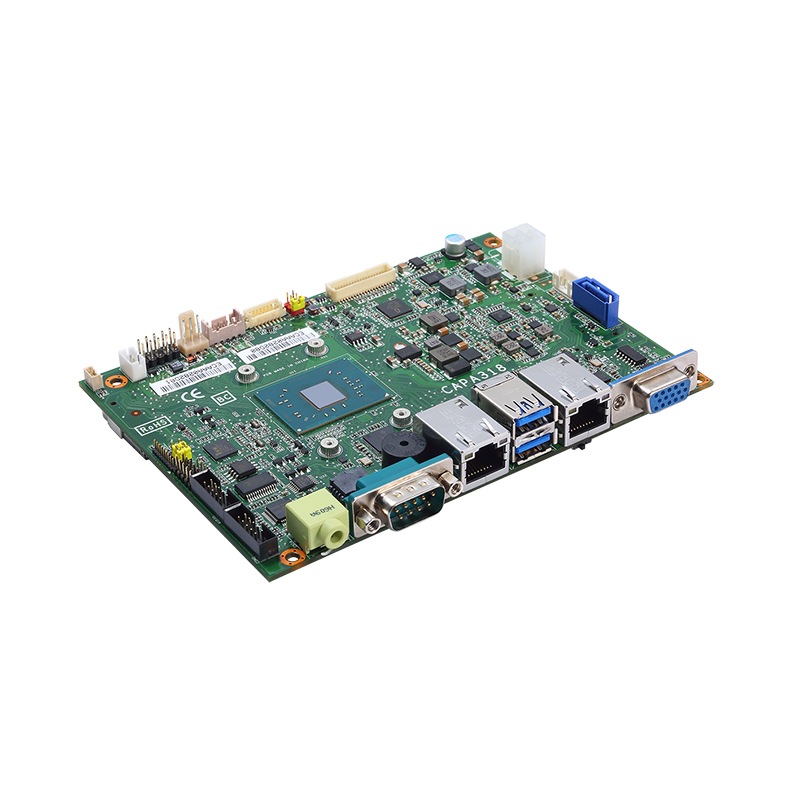

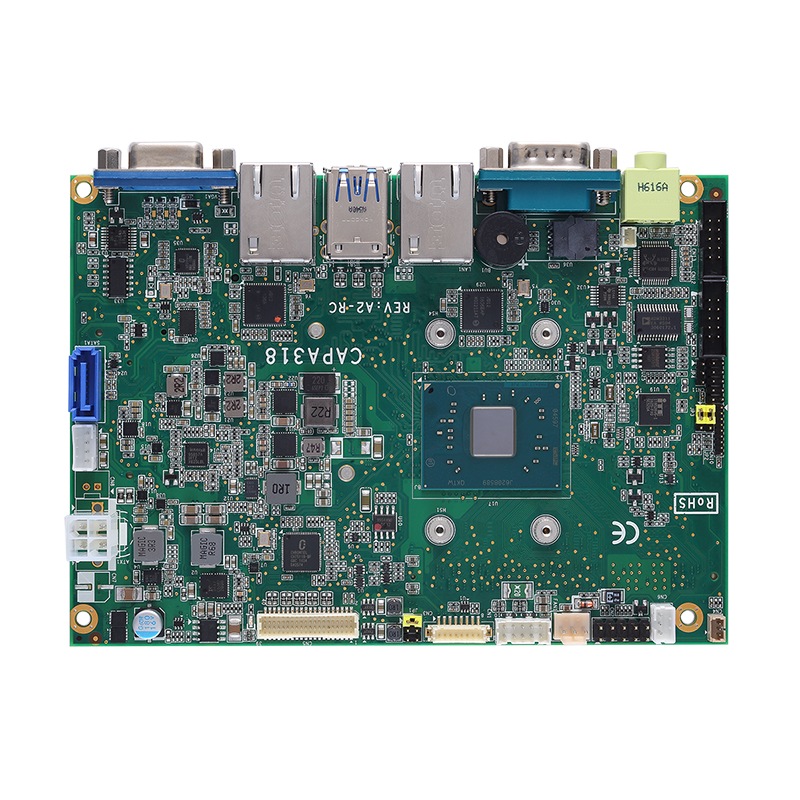

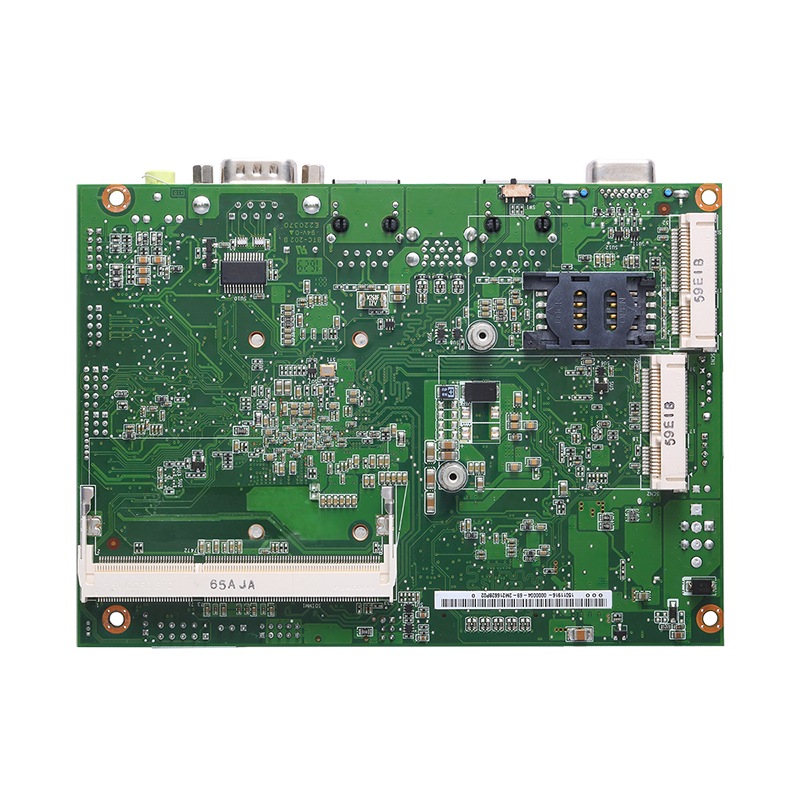

The CAPA318 features the Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake) with low power consumption. The integrated 3.5-inch embedded board is highly expandable and customizable. It comes with RS-232 ports, USB 3.0 ports, USB 2.0 ports, IN/OUT digital I/O ports, VGA port, LVDS port, and Gigabit Ethernet ports with Intel® i211AT Ethernet controller. For storage needs, the CAPA318 provides one SATA-600 socket and one mSATA interface. Additionally, Its compact and fanless design makes it perfect for use in space constricting environments. Additionally, the 3.5” single board computer can handle a wide operating temperature range from -20°C to +70°C (-4°F to +158°F) and requires +12V DC power input to ensure operational stability in a variety of harsh environments. This cost-effective 3.5” embedded motherboard is suitable for IoT/M2M related applications, industrial control, self-service terminals, digital signage, POS/kiosk displays, just name a few.
