- Intel® Atom™ E3845 1.91 GHz quad-core SoC
- 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
- Fanless operation design with full feature I/O
- 2 RS-232/422/485 and 2 RS-232 ports
- One 2.5” SATA drive bay, 1 CFast™ slot and mSATA
- Supports 8 channel programmable DI/DO and 2 PCI Express Mini Card slots
- Supports VGA and HDMI dual display

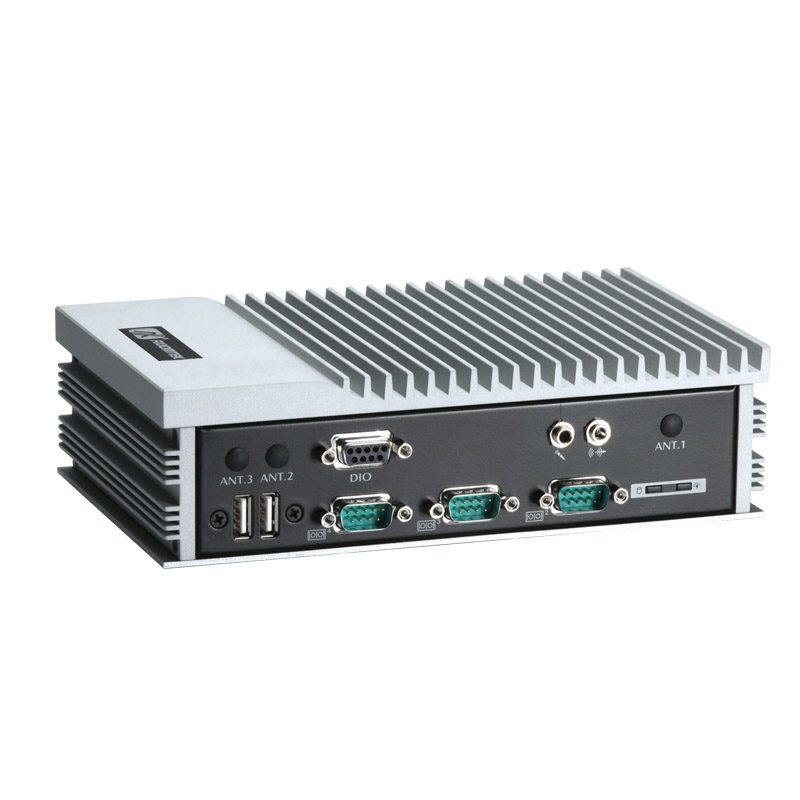

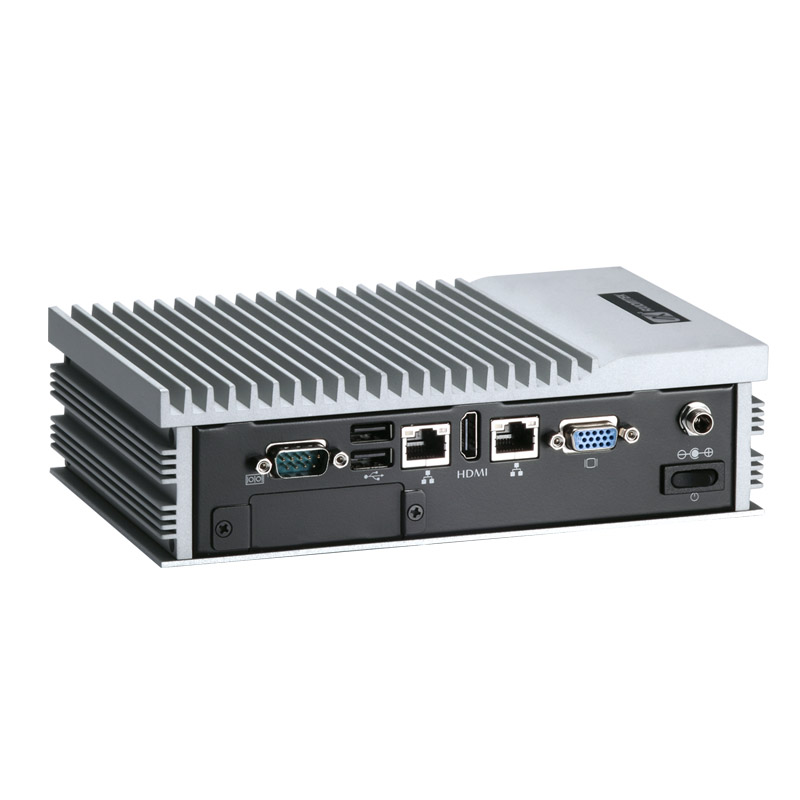

The eBOX620-841-FL supports the latest 22nm quad core Intel® Atom™ E3845 processor. The eBOX620-841-FL is rugged and designed to offer reliable operation in extreme temperature ranging from -40°C to +60°C (-40⁰F to +140⁰F). Its IP40-rated, rugged aluminum cold-rolled steel enclosure allows it to withstand operations in harsh environments and vibration of up to 3 Grms (with CFast™). The industrial grade embedded platform has full power protection with OVP, OCP, SCP and is CE certified.
