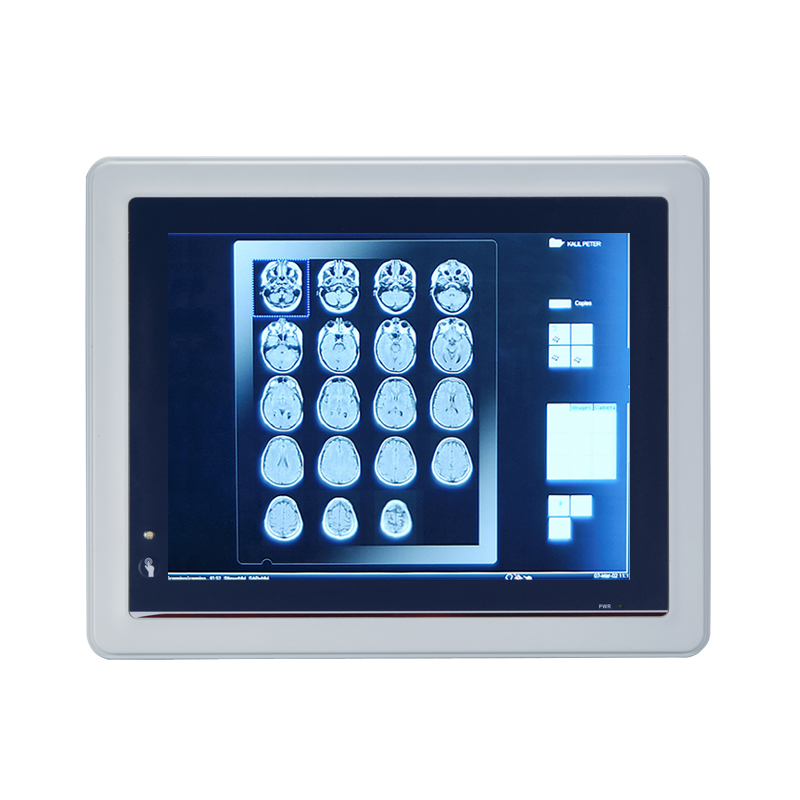

Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is pleased to announce the arrival of its latest medical touch panel computer, the MPC152-845. The versatile 15-inch fanless medical touch panel computer is certified with EN 60601-1 for use in medical applications, which includes integration with nursing carts and medical devices as a point-of-care terminal or health facility infotainment terminal.
The MPC152-845 adopts a 15” XGA TFT LCD display with a resistive touchscreen and 420 nits of brightness. It is powered by the low-power dual-core Intel® Celeron® processor N3060. The fanless design prevents the circulation of dust and microbes and provides a noiseless and quiet operation in noise-sensitive environments. This 15-inch medical-grade touch panel computer offers two PCI Express Mini Card slots for RFID, 3G, Bluetooth or Wi-Fi connection, enabling real-time patient data access and processing.
With a slim and light design, the EN 60601-1 certified MPC152-845 comes with rich I/O interfaces including one RS-232 port, one RS-232/422/485 port, two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one 8-bit DIO, and one audio (Line-out). It supports operating temperature ranges of 0°C to 40°C and up to 2G of vibration to withstand harsh operating conditions. Its IP65-rated spill/dust-resistant front bezel can protect it from damage due to spilled liquids. Additionally, it has a convenient, on/off single-touch button on the front panel to disable the touch screen function for quick cleaning and other shut down purposes.
Axiomtek's MPC152-845 has one 204-pin DDR3L-1600 SO-DIMM socket for up to 8GB of system memory. It also features one 2.5” SATA HDD and one mSATA for storage. The compact fanless medical touch panel computer provides a choice of two types of power input: a medical-grade AC/DC power adapter with a screw-type connector, and a DC power input with a terminal block connector. It can be run on Windows® 10, Windows® 8.1, Windows® 7, WES 7 and WE8S. The Mounting ways include panel mount, wall mount, VESA arm, and desktop stand.
Axiomtek's 15" EN 60601-1 certified fanless medical touch panel PC, the MPC152-845, is going to be available in February 2018. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at firstname.lastname@example.org.
- 15" XGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor N3060 (codename: Braswell)
- Two Gigabit LAN ports, four USB ports, and two COM ports (adjust RS-232/422/485 setting via BIOS)
- Plastic and IP65-rated front bezel
- Supports RFID (optional)
- External AT/ATX mode selection switch
- Easy access storage design
- Supports optional panel mount/wall mount/VESA arm/desktop stand
- EN 60601-1, CE and FCC certified
