eBOX800-841-FL

Status : Available

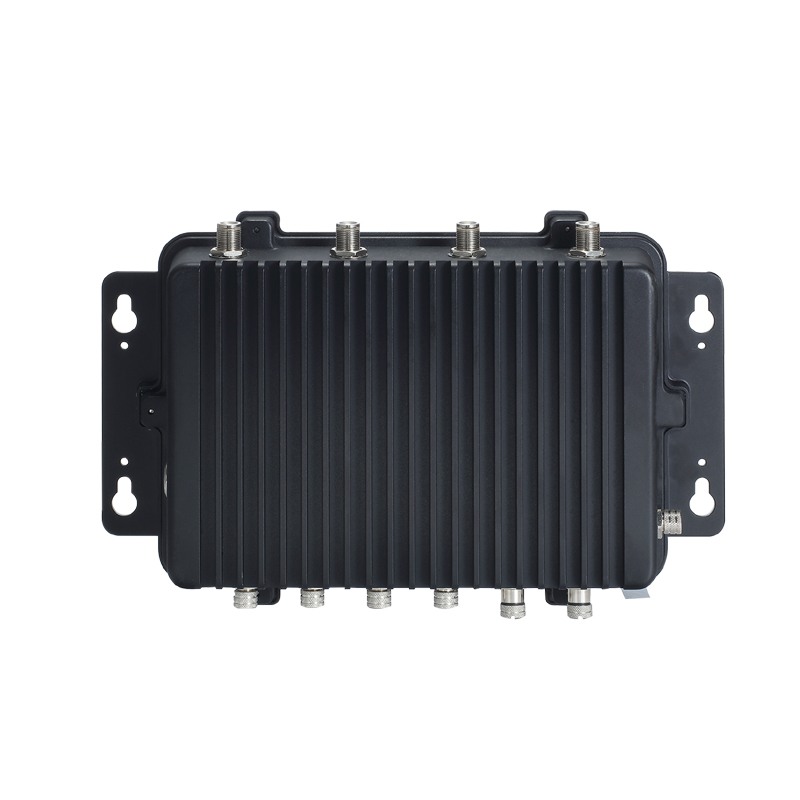

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX800-841-FL
eBOX800-841-FL
eBOX800-841-FL
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • IP67-rating for outdoor use
  • Intel® Atom® processor E3845 onboard

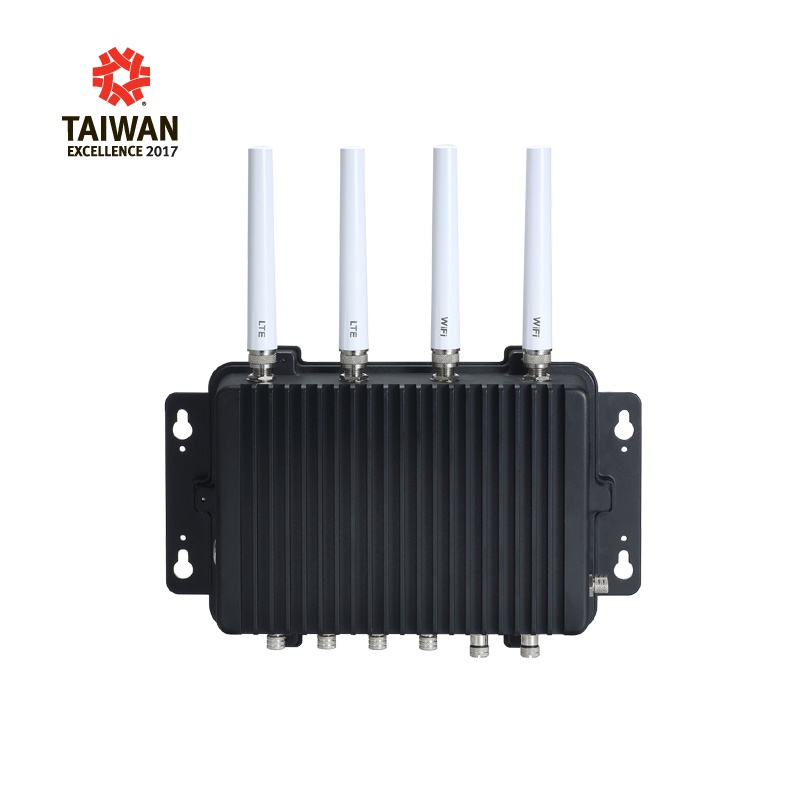

  • 4 N-jack antenna openings with waterproof design
  • -30°C to +60°C operating temperature range
  • 9 to 36 VDC wide range power input

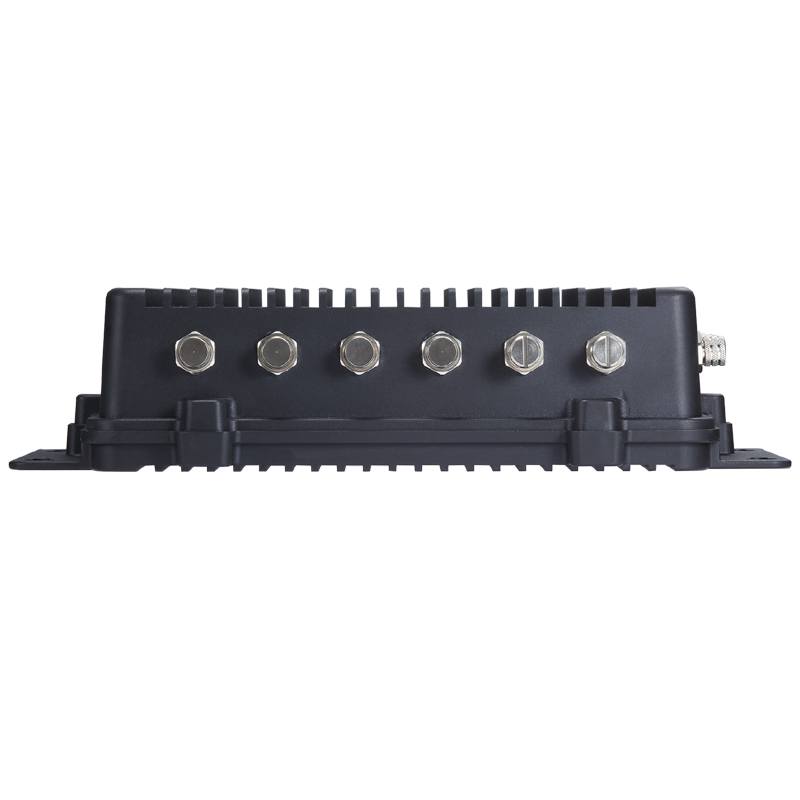

  • Features M12 lockable I/Os
  • Trusted Platform Module 1.2 (TPM 1.2)

Specifications

CPU
  • Intel® Atom™ processor E3845 1.91 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (M12)
USB
  • 2 x USB 2.0 (M12)
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, M12)
Display
  • 1 x VGA (M12)
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5” HDD drive bay (max. up 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
  • 1 x CFast™
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x 9 to 36 VDC power input (M12)
  • 1 x ATX power switch with indicator
  • 4 x N-jack antenna opening with water proof design
  • TPM 1.2 supported
Power
  • 9 to 36 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F) (with E3845, W.T. SSD/DRAM)
Relative Humidity
  • 10% to 95% , non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Shock
  • N/A
Dimensions<br>(W x D x H)
  • 210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)
  • 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, WE8S, WES7, Linux
Software Support
  • N/A
Mounting
  • Wall mount
  • VESA mount

Ordering Information

  • eBOX800-841-FL-DC (P/N-E36K800100)
    Rugged IP67-rated fanless embedded system with Intel® Atom® E3845 1.91 GHz, VGA, 2 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC
  • 2.5” SATA HDD (W.T.)
    80GB or above
  • 2.5” SATA SSD (W.T.)
    100GB or above
  • DDR3L SO-DIMM (W.T.)
    2GB to 8GB
  • CFast™
    64GB or above
  • mSATA
    64GB or above
  • 3G/LTE module
  • 594B8122100E
    RS-232 serial cable, 180 cm
  • 594B8152710E
    LAN cable, 180 cm
  • 50966224010E
    24V 90W M12 power adapter
