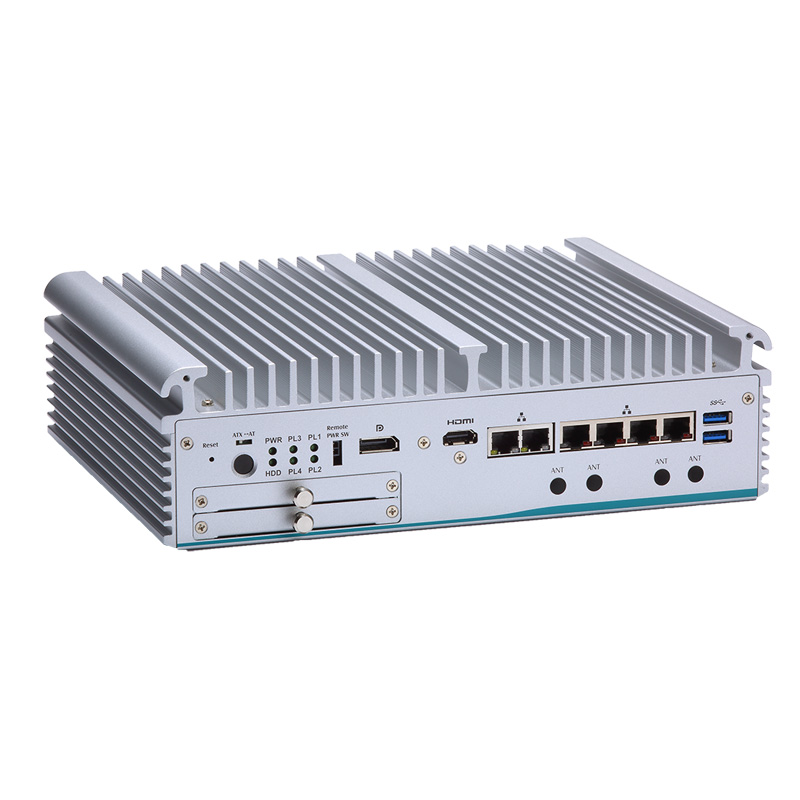

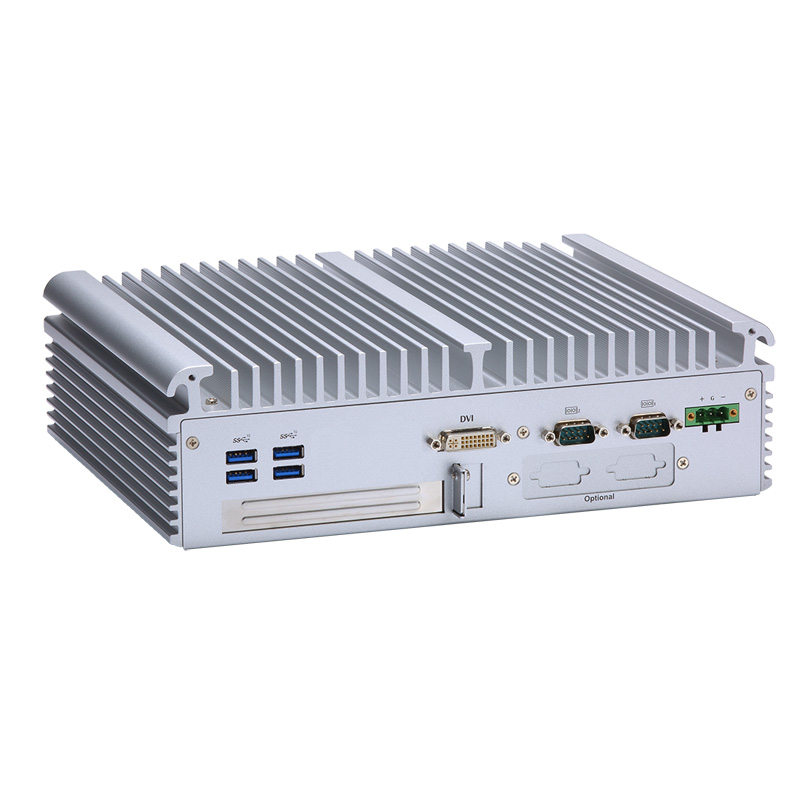

eBOX710-521-FL

Status : Available

Fanless Embedded System with LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® C246, ECC/Non-ECC, and 1 PCIe x4 Slot

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX710-521-FL
eBOX710-521-FL
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

Low Power

Low Power

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor
  • 2 DDR4 ECC/non-ECC memory supported, up to 64GB
  • Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
  • DVI-I, HDMI, and DisplayPort with triple-view supported
  • 6 GbE LAN, 6 USB 3.1 and 1 PCIe x4 slot
  • Flexible I/O window supported

Specifications

CPU
  • LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor (CPU TDP max. up to 35 W)
Chipset
  • Intel® C246
System Memory
  • 2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB (ECC memory available with Intel® Xeon® and Core™ i3 processors)
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.1 Gen2
  • 4 x USB 3.1 Gen1
Ethernet/PoE
  • 6 x 10/100/1000 Mbps Ethernet (5 x Intel® I210-IT & 1 x Intel® I219-LM)
Display
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x DVI-I
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 2 x 2.5" HDD drive bay (max. up 9.5 mm height & RAID 0,1)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
  • 1 x PCIe x4 slot
  • 2 x SIM slot
Others
  • TPM 2.0
  • 1 x Phoenix type VDC power input connector
  • 1 x AT/ATX quick switch
  • 1 x ATX power switch
  • 1 x Reset switch connector
  • 1 x Remote switch
  • 1 x Flexible I/O window (Default : 2 x DB9 half-cut bracket)
  • 4 x SMA-type antenna connector
Power
  • 24 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)(with W.T. DRAM & SSD)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine, 11 ms duration)
Dimensions<br>(W x D x H)
  • 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)
  • 4.8 kg (10.58 lb)/5.6 kg (12.34 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 10 IoT, Win 11 IoT, Linux
Software Support
  • Axiomtek EAPI
Mounting
  • Wall mount kit
  • DIN-rail kit

Ordering Information

  • eBOX710-521-FL-PCIEDC (P/N-E36K710100)
    Fanless embedded system with LGA1151 Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® C246, ECC/non-ECC memory, 1 PCIe x4 slot, and 24 VDC
  • 2.5" SATA HDD
    80GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • mSATA
    64GB or above
  • 8816K6718A0E
    Wall mount kit
  • 886K671A0A0E
    DIN-rail kit
  • Wi-Fi/LTE module
  • 509000001500
    24V 120W adapter
  • Power cord
  • AX92903 (P/N-E392903102)
    CANBus PCI Express Mini module
  • AX92902 (P/N-E392902103)
    LAN PCI Express Mini module
  • 59406392140E
    RS-232 cable, L=200 mm for optional 2x COM port (COM3/4)
  • 592000000100
    DIO cable,DB9(F) for optional 8-CH DIO (4in/4out)
  • E392905103
    3.5 mm audio I/O & half PCI Express Mini module
  • AX92905 (P/N-E392905103)
    Audio PCI Express Mini module
  • AX92918 (P/N-E392918103)
    Dual LAN PCI Express Mini module
