iHPC300

Status : Available

4U Rackmount GPU Workstation with 3rd Generation Intel® Xeon® Scalable Processor and Multiple Accelerator Cards

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
iHPC300
iHPC300
iHPC300
GPU

GPU

RAID

RAID

TPM

TPM

Ubuntu

Ubuntu

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA4189 socket Intel® Xeon® Scalable processor, up to 270W, 40 cores
  • Six DDR4-3200 R-DIMM ECC memory, up to 384GB
  • 3 PCIe x16 and 3 PCIe x8, supporting up to six accelerator cards
  • Supports M.2 Key M 2280
  • TPM 2.0 supported (optional)

Specifications

CPU
  • LGA4189 socket Intel® Xeon® Scalable CPU up to 270W, 40 cores (code name: Ice Lake-SP)
Chipset
  • Intel® C621A
Graphics
  • AST2510
System Memory
  • 6 x DDR4-3200 R-DIMM ECC memory, up to 384GB
BIOS
  • AMI
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Drive Capacity
  • Exposed: 3 x 5.25" HDD drive bay and 1 x 3.5" HDD drive bay
  • Internal: 3 x 3.5" HDD drive bay or 2 x 3.5" or 1 x 2.5"
Expansion
  • Slot1: PCIe x8
  • Slot2: PCIe x16 (Gen 4)
  • Slot3: M.2 key M 2280 (signal: x4)
  • Slot4: PCIe x16 (Gen 4)
  • Slot5: PCIe x8 slot (signal: x0 or x8)
  • Slot6: PCIe x16 (signal: x16 or x8)
  • Slot7: PCIe x8
Storage
  • 6 x SATA3 with RAID 0/1/5/10
  • 1 x NVMe M.2 M Key 2280 (PCIe x4)
Ethernet
  • 2 x GbE with Intel® I210-AT
COM
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.1 Gen 1 (rear I/O)
  • 2 x USB 3.1 Gen 1 (internal box header)
  • 6 x USB 2.0 (internal box header)
  • 1 x USB 2.0 (180D Type A)
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Digital I/O
  • 8 channels programmable
PS/2
  • 1 x PS/2 keyboard and mouse
Display
  • 1 x VGA
SMBus
  • System Management Bus for advanced monitoring/control
TPM
  • TPM 2.0 module (optional)
Construction
  • Heavy-duty steel
Power Supply
  • 1200W
  • AC Input voltage: 100 to 240V
  • 2000W
  • AC Input voltage: 200 to 240V
Cooling
  • 1 x 12cm PWM front fan
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions (W x D x H)
  • 430 x 515 x 174.8 mm (16.9" x 20.3" x 6.9")
Weight (net/gross)
  • 17.15 kg (37.8 lbs)/21.78 kg (48 lbs)
Certifications
  • CE/FCC
OS Support
  • Windows Server 2019
  • Linux: Ubuntu 20.04
Mounting Type
  • Rackmount

Ordering Information

  • iHPC300-C621A-BA (P/N-E26W300100)
    4U rackmount GPU workstation with Intel® Xeon® Scalable processor, 1200W, and 3 PCIe x16
  • iHPC300-C621A-BB (P/N-E26W300101)
    4U rackmount GPU workstation with Intel® Xeon® Scalable processor, 2000W, and 3 PCIe x16
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.1 Gen1 cable with bracket, L=400 mm
  • E393242100
    AX93242-RC HD audio converter kit
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 594G5208010E
    SATA 3.0 cable 180D with B. sleeve L50 cm x1
  • 713WFB30000E
    LGA-4189 CPU cooler for iHPC300 (support up to 270W TDP)

Download

Drivers

Date Description Version Download File
2021/10/12 LAN Driver V1.0
2021/10/12 Audio Driver V1.0
2021/10/12 Chipset Driver V1.0
2021/10/12 Graphic Driver V1.0

Software

Manual

Date Description Version Download File
2025/06/02 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/04/21 UKCA Declaration of Conformity
2022/04/21 FCC Verification
2022/04/21 CE EMC Verification
2022/04/21 CE LVD Verification
2022/04/21 CE-Conformity DeclarationA1

Frequently Asked Questions

You Might Also Like

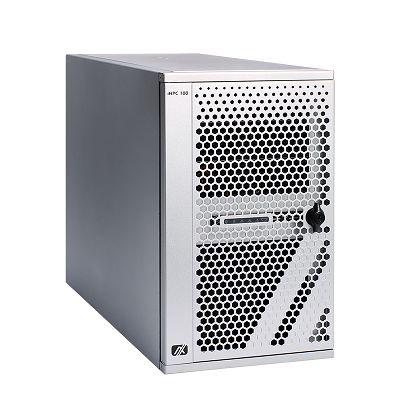

Picture of iHPC100
