MPC241G

Status : Coming Soon

24-inch Medical-Grade Panel PC with MXM GPU Expansion and Intel® Core™ Ultra 5/7 Processors for AI-Accelerated Advanced Medical Computing

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MPC241G
MPC241G
MPC241G
AI Computing

AI Computing

IP65 Rating

IP65 Rating

Medical Grade

Medical Grade

PCAP

PCAP

PCIe Expansion

PCIe Expansion

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

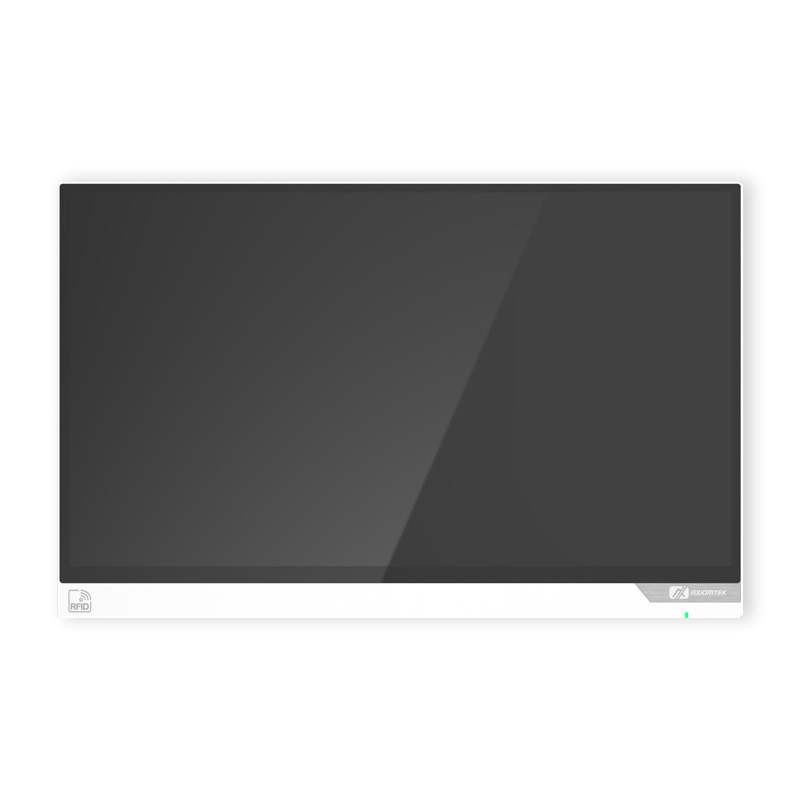

  • 24" full HD display with multi-touch P-CAP control screen
  • AI acceleration with Intel® Core™ Ultra 5 or Ultra 7 processor
  • 2 DDR5-5600 SO-DIMM, up to 96GB memory
  • Advanced computing ability integrated with MXM GPU module
  • IP65 front bezel and IPX1 full enclosure design
  • Optional cable trays for effortless cable routing
  • RFID reader and COM port integration (optional)

Specifications

LCD Panel
  • 24" FHD LCD
  • 350 nits
  • 1920 x 1080 pixcel
CPU
  • Intel® Core™ Ultra 7/5 Processor (Series 1), up to 45W
Chipset
  • SoC integrated
System Memory
  • 2 x DDR5-5600 SO-DIMM, up to 96 GB
BIOS
  • AMI

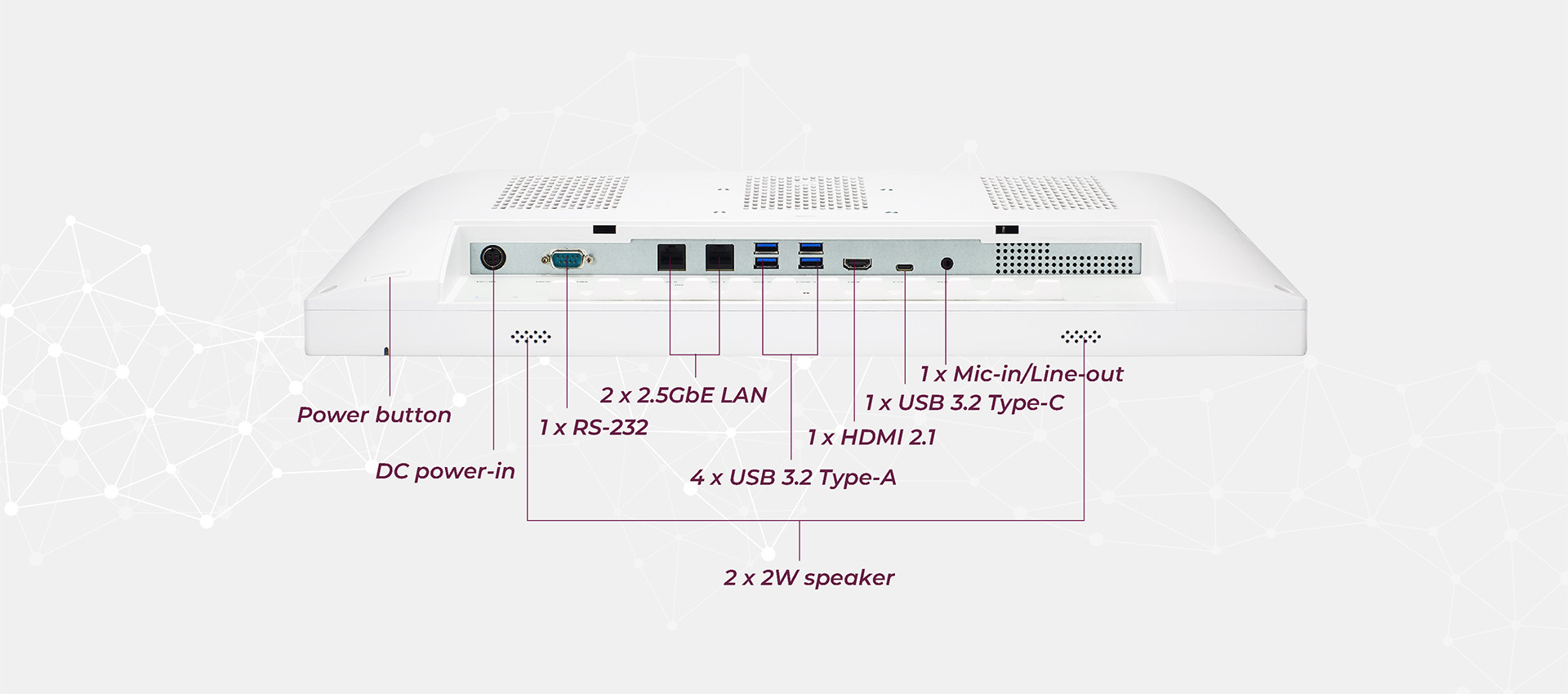

COM
  • 1 x COM (RS-232) with 1.5kV isolation (optional)
USB
  • 4 x USB 3.2 Type-A
  • 1 x USB Type-C, supports PCIe Gen 3 x4 lanes/USB 3.2/PD 15W/DP Alt mode
Ethernet
  • 2 x 10/100/1000/2500 Mbps Ethernet (1.5kV isolation, Intel® I226-LM)
Display
  • 1 x HDMI 2.1
Audio
  • 2 x audio (2W speakers, HD codec audio with Mic-in/Line-out using Realtek ALC888s)
Storage
  • 2 x M.2 Key M 2280 support NVMe SSD
Expansion
  • 1 x PCIe Gen 4 x4 (x16 slot) for MXM GPU module
  • 1 x M.2 Key E 2230 for Wi-Fi 6E/BT5.2
Others
  • TPM 2.0
  • 1 x RFID card reader (optional)
Touchscreen
  • Projected capacitive 10-point multi-touch
Front Bezel
  • IP65 front bezel and IPX1 full enclosure design
Power Consumption
  • N/A
Power Supply
  • 24V DC input with medical-grade 250W PSU
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +40 °C (+32°F to +104°F)
Vibration
  • N/A
Relative Humidity
  • Operating humidity: 10% to 95% @ +40°C (+104°F)
  • Storage humidity: 95% @ +40°C (+104°F)
Dimensions<br>(W x D x H)
  • 548 x 349.4 x 61.7 mm (21.57" x 13.75" x 2.43")
Weight (net/gross)
  • < 8kg
Certifications
  • CE, FCC Part 18
  • IEC 60601-1 Edition 3.2 compliant
EOS
  • Windows® 10 IoT Ent, Windows® 11 IoT Ent
Mounting

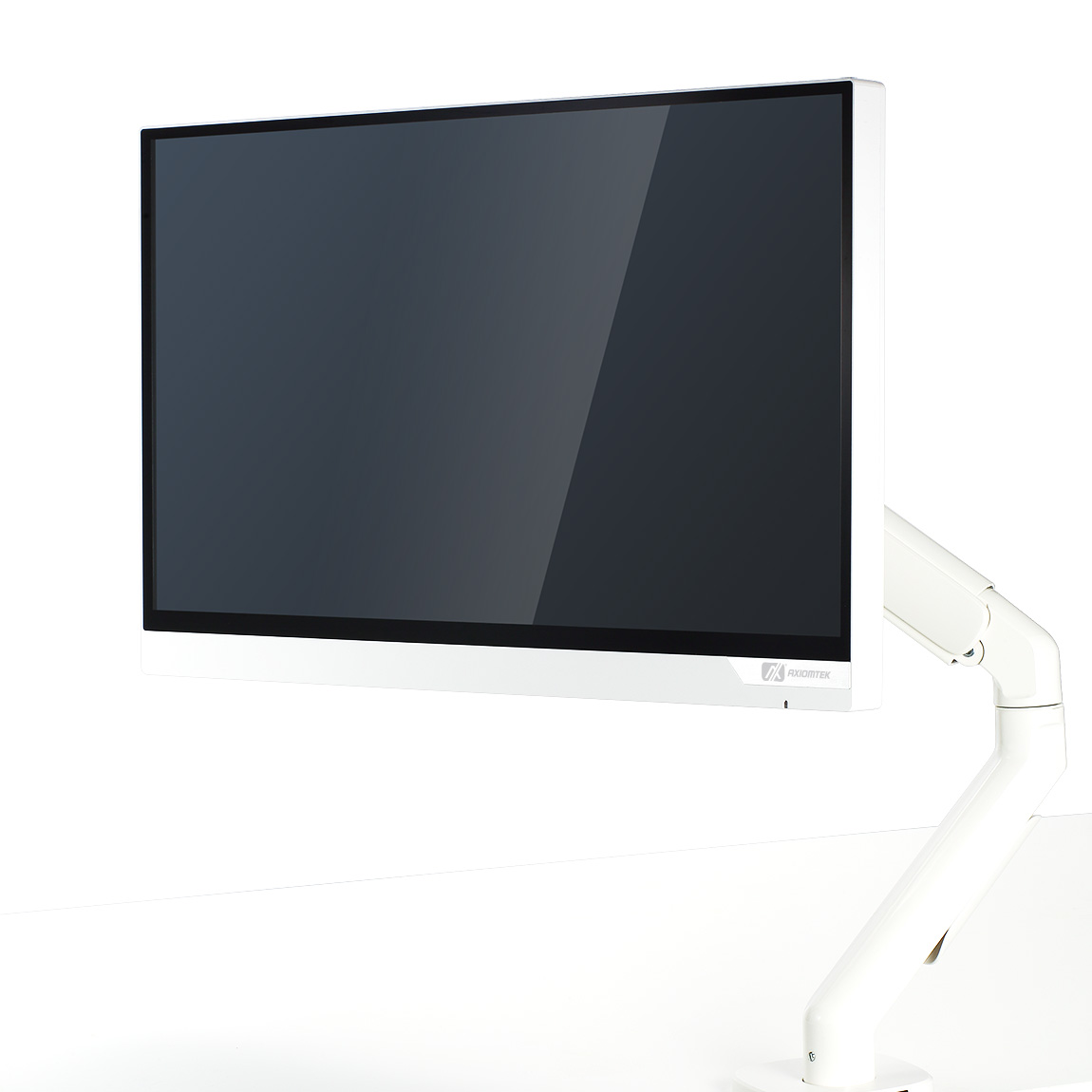

  • VESA arm
  • Panel mount
  • Desktop stand
  • Wall mount

Ordering Information

  • MPC241G
    24" medical panel PC with Intel® Core™ Ultra 5/7 processor, 4 USB 3.2 Type-A, 1 USB 3.2 Type-C, 1 HDMI 2.1, two 2.5GbE LAN, dual 2W speakers, and optional RFID module or MXM GPU module
