GOT810-316

Status : Available

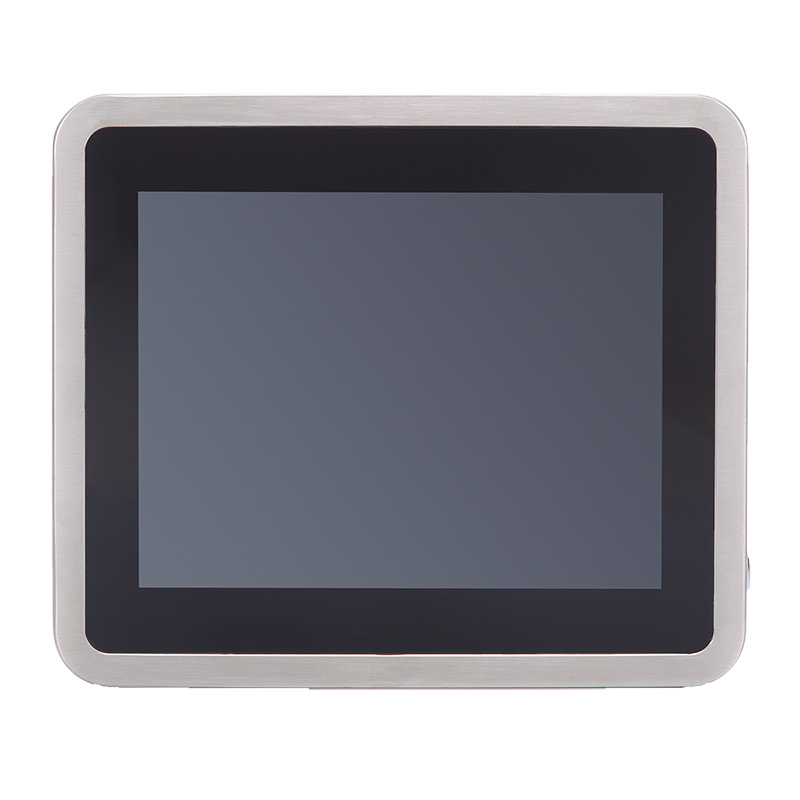

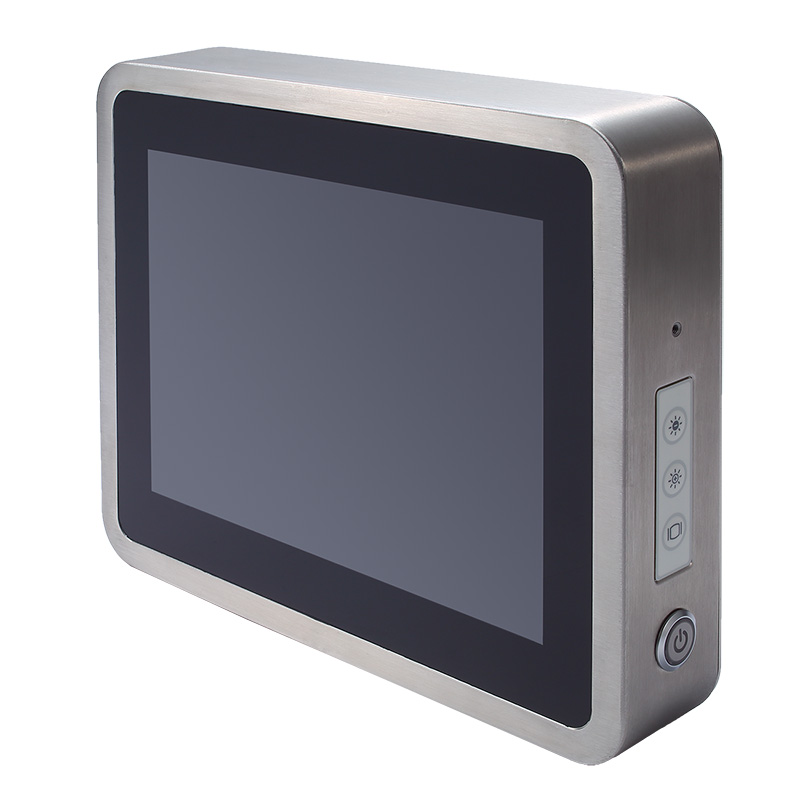

10.4" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Celeron® N3350 and Flat Bezel Design (0°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT810-316
GOT810-316
GOT810-316
Fanless

Fanless

IP66 & IP69

IP66 & IP69

Low Power

Low Power

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 10.4" XGA TFT LCD flat bezel projected capacitive touch
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • 0°C to +50°C wide operating temperature range
  • Fanless design with Intel® Celeron® N3350

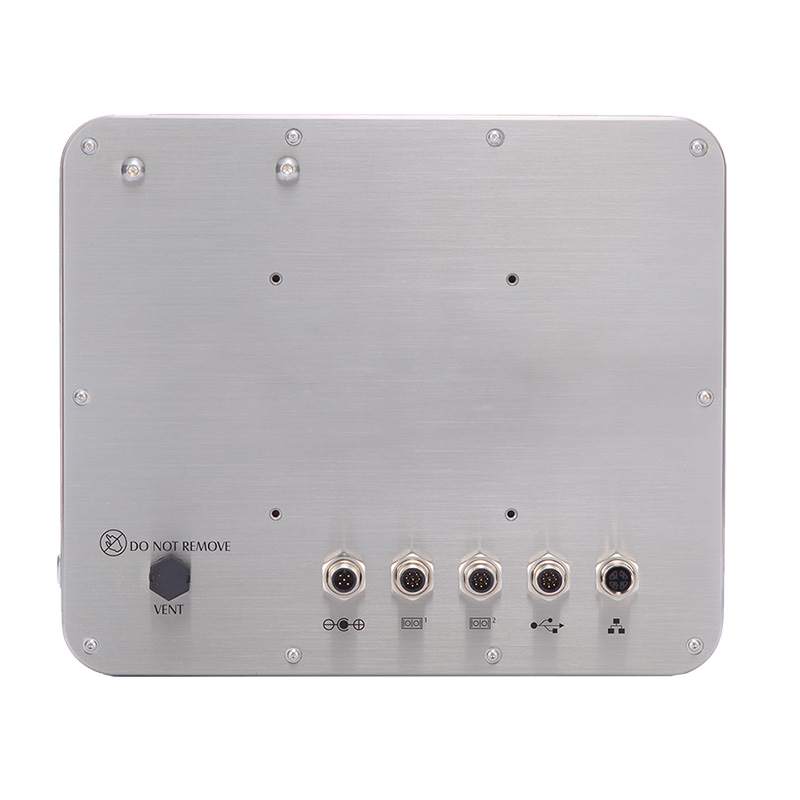

  • M12 type I/O connectors for harsh environments

Specifications

LCD Panel
  • 10.4" XGA TFT LCD
  • 450 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor N3350 2 cores (up to 2.4GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232, M12 A-coded)
  • 1 x RS-232 (M12 A-coded)
USB
  • 2 x USB 2.0 via M12 connector
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (M12 X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x mSATA
  • 1 x 2.5" SATA HDD (9.5 mm height)
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x DC power connector (M12)
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless type 316
Power Supply
  • 12 VDC or 19 to 24 VDC in cable M12 female 5P
Power Comsumption
  • 36W
Watchdog Timer
  • 255 levels, 1 to 255 sec
Operating Temperature
  • 0°C to +50°C (32°F to +122°F)
Relative Humidity
  • 20% - 90% @40°C; non-condensing
Vibration
  • 2G, 5 - 500Hz, random for SSD
Dimensions (W x D x H)
  • 283.1 x 239.5 x 55.2 mm (11.15" x 9.43" x 2.17")
Weight (net/gross)
  • 3.47 kg (7.65 lb)/5.18kg (11.42 lb)
Certifications
  • CE
EOS
  • Windows® 10
Mounting
  • Suspension
  • VESA mount

Ordering Information

  • GOT810-316-C (P/N-E22B810107)
    10.4" IP66 & IP69K stainless steel touch panel computer with projected capacitive touch, Intel® Celeron® N3350 onboard, XGA 450 nits LCD, and water-proof power cable (1.8 m)
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B8122820E
    USB cable M12-8P-F/2 x type A (1.8 m)
  • 594B8152710E
    Water-proof LAN cable (1.8 m)
  • 50966224010E
    Adapter 24V 90W, M12 A-code 5P FSP090AAAN3
  • 594B8120B30E
    DC in cable M12 female 5P 180cm w/o ACC

Download

Drivers

Software

Manual

Date Description Version Download File
2022/09/15 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/08/05 UKCA Declaration of Conformity
2022/08/05 CE-Conformity Declaration
2022/08/05 FCC Verification
2022/08/05 CE EMC Verification
