GOT5120T-834

Status : Available

12.1" XGA/SVGA TFT Fanless Touch Panel with Intel® Celeron® Processor J1900

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

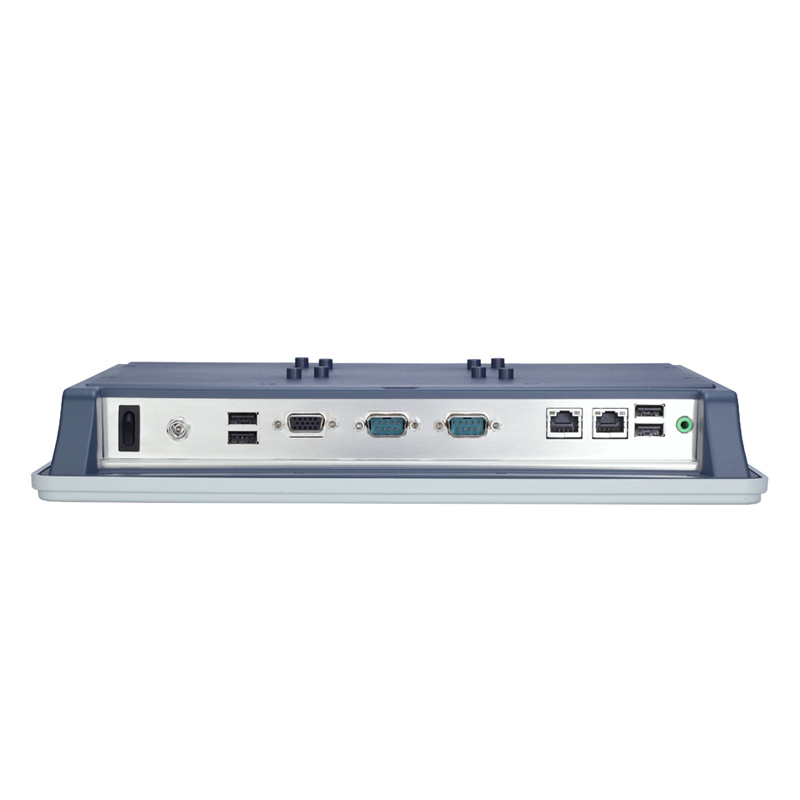

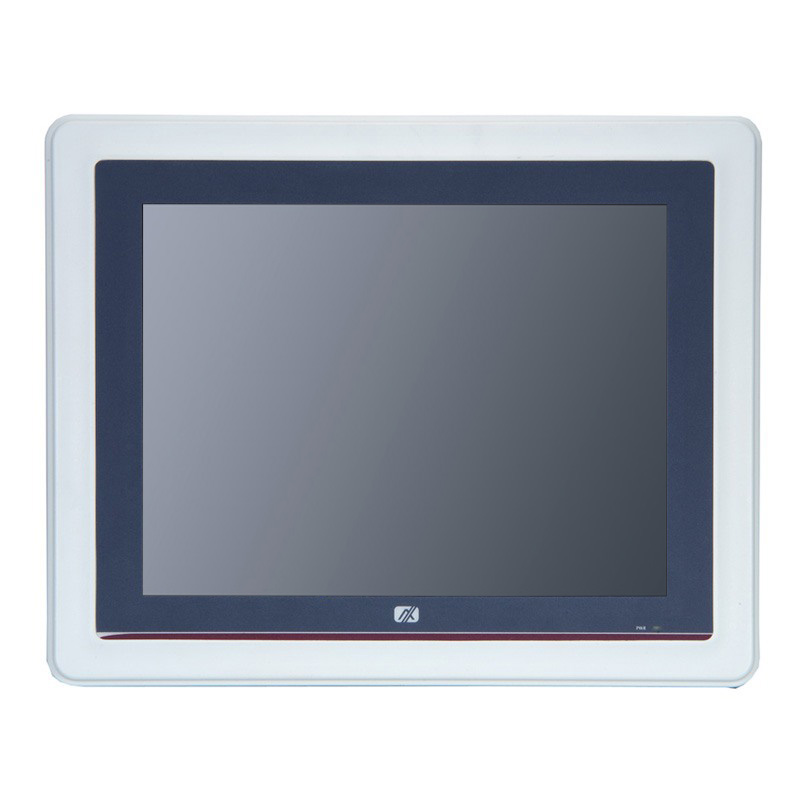

GOT5120T-834
GOT5120T-834
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 12.1" XGA/SVGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor J1900
  • WLAN module and internal antenna
  • 2 GbE LAN, 4 USB, and 2 COM
  • PCI Express Mini Card slots for easy expansion
  • Supports panel mount/wall mount/VESA arm
  • Supports speakers (optional)
  • Plastic and IP65-rated front bezel

Specifications

LCD Panel
  • 12.1" XGA/SVGA TFT LCD with LED backlight
  • 500 nits (XGA)
  • 500 nits (SVGA)
  • 1024 x 768 (XGA)
  • 800 x 600 (SVGA)
CPU
  • Intel® Celeron® processor J1900
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-IT)
Display
  • 1 x VGA
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" 7/9.5mm SATA HDD
  • 1 x CFast™ or mSATA
Expansion
  • 1 x Full-Size Mini PCI Express Mini Card with mSATA
  • 1 x Full-Size Mini PCI Express Mini Card with SIM
Others
  • Built-in WLAN antenna
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 9 to36 VDC with over-current protection fuse
  • AC version: 100 to240 V AC-DC, 60W power adapter
Power Comsumption
  • 32W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to+50°C (+32°F to+122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0°C to+45°C (+32°F to+113°F) (with W.T. DRAM/HDD)
Relative Humidity
  • 20% to90 % @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 to 500Hz, random for CFast™
Dimensions<br>(W x D x H)
  • 327.5 x 52.5 x 261.8 mm (12.9" x 2.07" x 10.3")
Weight (net/gross)
  • 2.48 kg (5.46 lb)/ 3.84 kg (8.46 lb)
Certifications
  • CE
EOS
  • Windows 10 IoT Enterprise, Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5120T-834-XGA-J (P/N-E225120124)
    12.1" XGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class B
  • GOT5120T-834 N-XGA-DC (P/N-E225120127)
    12.1" XGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen and 9 to 36 VDC power input (terminal block connector), and no logo version
  • Wi-Fi + Bluetooth kit
  • Speaker kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit

Download

Drivers

Date Description Version Download File
2018/12/18 Win10 driver VA1.8
2018/12/18 Win8.1 driver VA1.8
2018/12/18 Win7 driver VA1.8

Software

Manual

Date Description Version Download File
2018/12/18 GOT5120T-834 User's Manual VA2_07-13-2016 VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/22 CE LVD Verification
2022/09/22 UKCA Declaration of Conformity
2022/09/22 FCC Verification
2022/09/22 CE-Conformity Declaration
2022/09/22 CE EMC Verification
2017/07/04 CB Certificate
2017/07/04 CCC Certificate
