GOT5103W-845

Status : Available

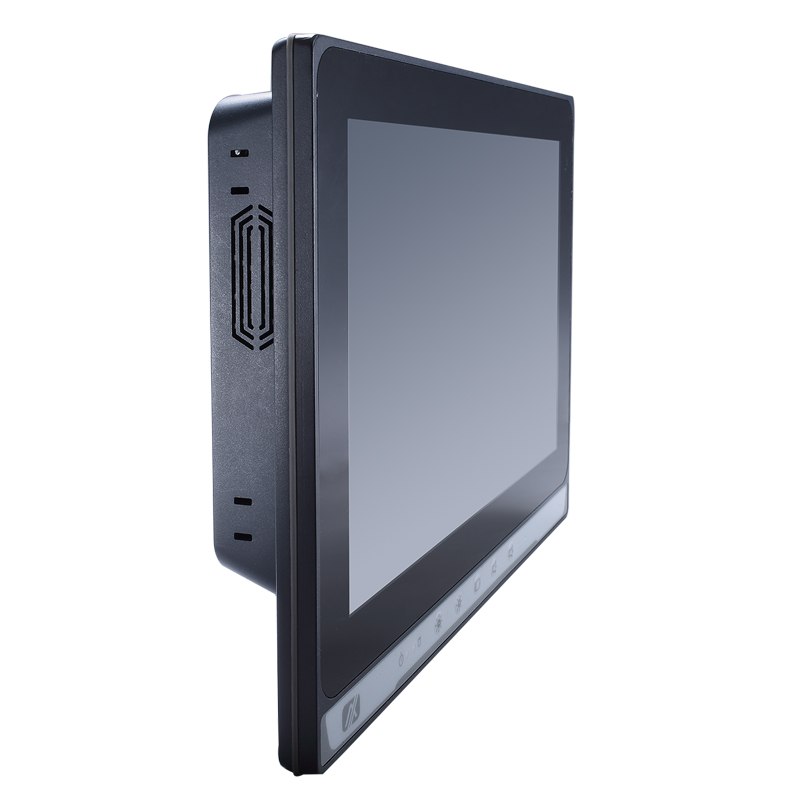

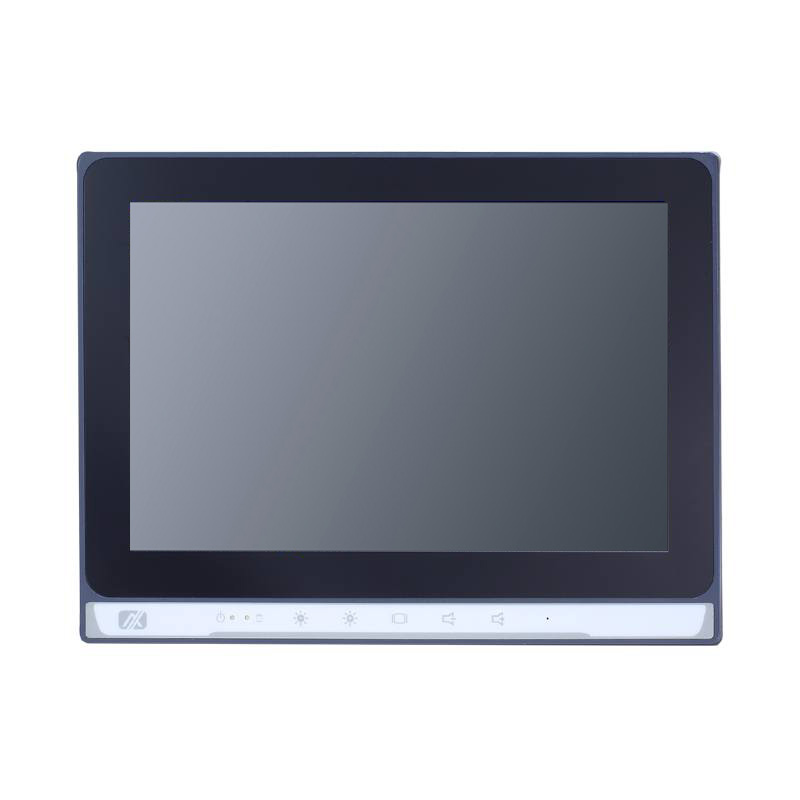

10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5103W-845
GOT5103W-845
GOT5103W-845
GOT5103W-845
GOT5103W-845
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

PCAP

PCAP

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 10.1" WXGA wide screen TFT LCD display with LED backlight
  • Projected capacitive multi-touch
  • Fanless design with Intel® Celeron® N3060 processor or Intel® Pentium® N3710 processor
  • 1 mSATA and 1 half-slim SATA SSD (optional)
  • 2 GbE LAN, 4 USB, 2 COM, 2W speakers, and Mic-in (optional)
  • IP65-rated front bezel and IPX1 full enclosure design
  • Supports panel mount, wall mount, VESA arm, and desktop stand
  • External AT/ATX mode selection switch

Specifications

LCD Panel
  • 10.1" WXGA TFT LCD
  • 350 nits
  • 1280 x 800 pixels
CPU
  • Intel® Celeron® processor N3060 (up to 2.48 GHz)
  • Intel® Pentium® processor N3710 (up to 2.56 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS
  • AMI

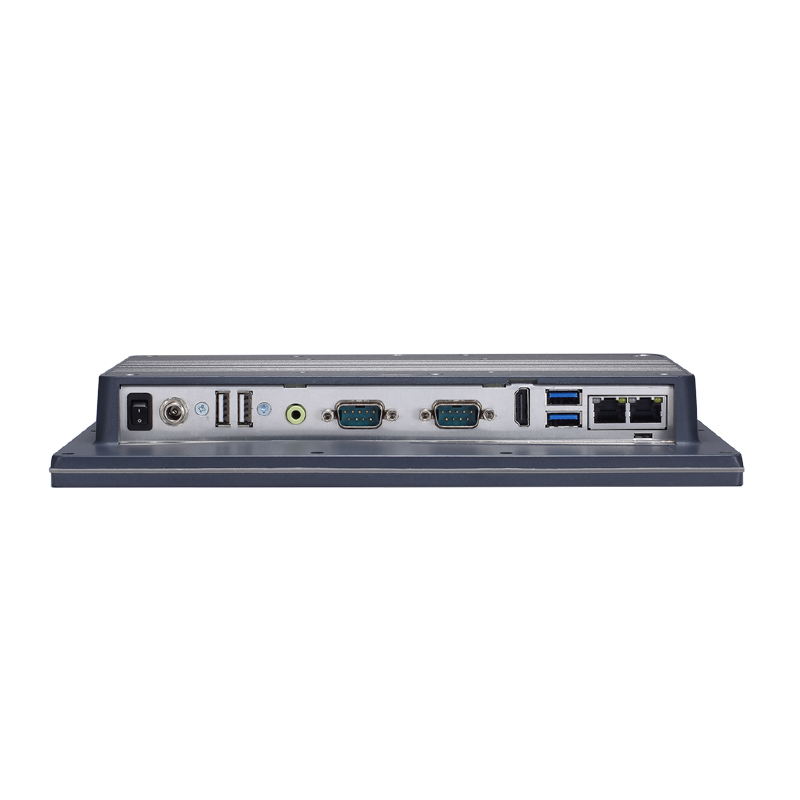

COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x Half-slim SATA SSD (only for GOT5103W-845-PCT-J)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA
  • 1 x Full-size PCI Express Mini Card with SIM slot
Others
  • 2 x Speaker
  • WLAN antenna
  • 1 x Switch for power On/Off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65, plastic front bezel
Power Supply
  • AC version: 100 to 240 VAC-DC, 60W power adapter
Power Comsumption
  • 38.4W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ 40°C; non-condensing
Shock/Vibration
  • 2G, 10 to 500Hz, random for SSD
Dimensions<br>(W x D x H)
  • 260.8 x 38 x 194.1.1mm (10.27" x 1.50" x 7.65")
Weight (net/gross)
  • 1.08 kg (2.38 lb)/2.18 kg (4.8 lb)
Certifications
  • CE, FCC, UL60950-1
EOS
  • Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • Wall mount

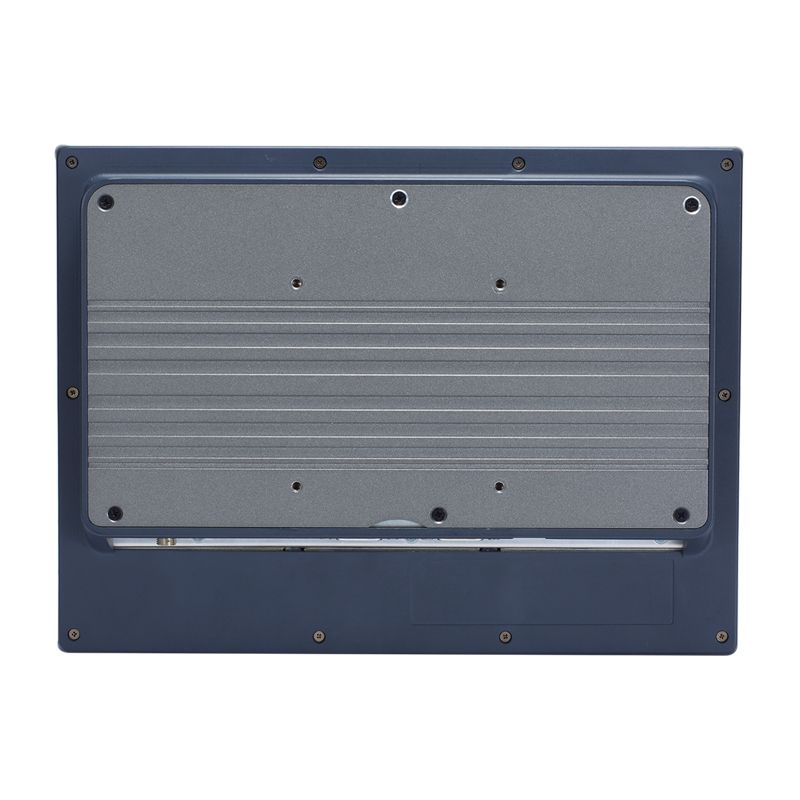

  • VESA arm

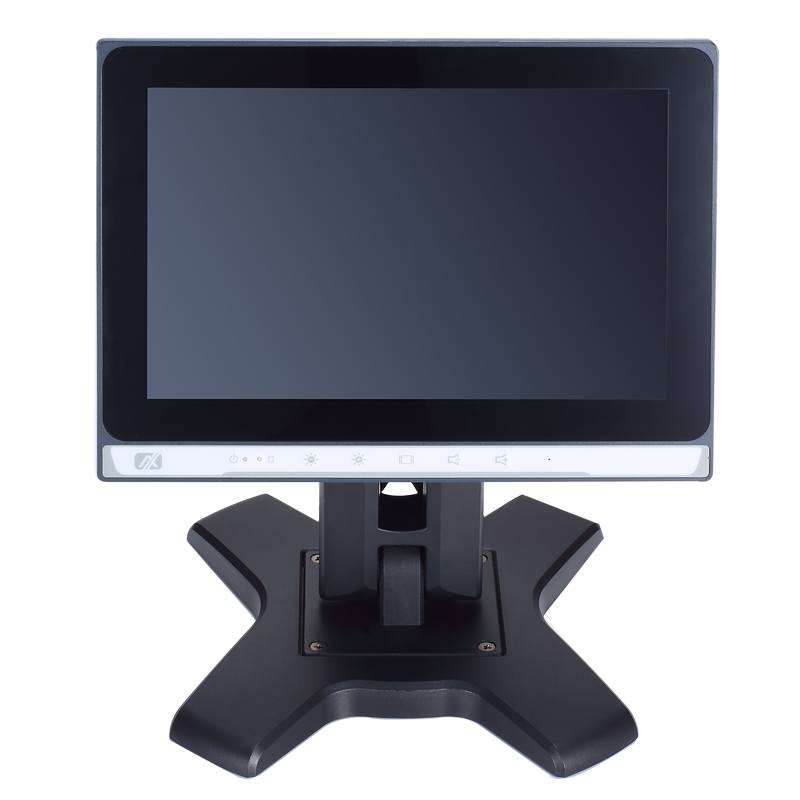

  • Desktop stand

Ordering Information

  • GOT5103W-845-PCT-J (P/N-E225103100)
    10.1" WXGA fanless touch panel computer with Intel® Celeron® processor N3060, projected capactive multi-touch screen, AC-DC 60W power adapter (screw type connector), and EMI class A
  • Wi-Fi + Bluetooth kit
  • RFID kit
  • E29R131104
    Panel mount kit
  • E29R131103
    Wall mount kit
  • E226171119
    Stand kit
  • Half slim SSD kit SFP (AC Version only)

Download

Drivers

Date Description Version Download File
2017/04/20 Step8 Penmount Touch Driver- Only for Resistive VA1.1
2017/04/20 Step7 Volume Sync (Only for GOT5103-845) VA1.1
2017/04/20 Step6 Intel USB 3.0 Driver VA1.1
2017/04/20 Step5 HD Audio VA1.1
2017/04/20 Step4 LAN VA1.1
2017/04/20 Step3 TXE VA1.1
2017/04/20 Step2 Graphic VA1.1
2017/04/20 Step1 Chipset VA1.1

Software

Date Description Version Download File
2017/04/20 PCT TOUCH Calibration (For GOT5103) VA1.1
2017/04/20 AX-USB30-Utility VA1.1

Manual

Date Description Version Download File
2017/04/20 GOT5103W-845 User's Manual VA3_08-23-2016 VA1.1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/03/22 CE EMC Verification
2022/03/30 CE-Conformity DeclarationA1
2020/06/02 FCC Verification
2019/02/11 UL Certificate
2018/02/26 CE LVD Verification
