ROBOX500

Status : Available

ROS 2 AMR Controller for Navigation and Control Solutions

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
ROBOX500
ROBOX500
ROBOX500
ROBOX500
ROBOX500
Fanless

Fanless

GMSL

GMSL

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Certified for IEC 60721-3-5 5M3
  • 13th/12th gen Intel® Core™ i7 processor (Alder Lake-P), 28W/15W TDP
  • 4-channel GMSL camera
  • 4 RS-232/422/485 and 2 CAN 2.0A/B
  • Supports Wi-Fi/Bluetooth/5G/LTE
  • Wide operating temperature from -40°C to +70°C
  • Wide voltage input from 9 to 60 VDC
  • Supports Linux Ubuntu 22.04 LTS
  • Supports Axiomtek AMR Builder Package

Specifications

CPU
  • 13th/12th gen Intel® Core™ i7 processor, 28W/15W TDP
System Memory
  • 2 x DDR4 SO-DIMM slot, up to 64GB
Ethernet
  • 2 x M12 X-code GbE Ethernet
  • 1 x RJ-45 GbE Ethernet
USB
  • 4 x M12 A-code USB 3.2 Gen1x1 & USB 2.0
  • 1 x USB 2.0 (Type A)
  • 1 x USB 3.2 Gen1x1 (Type A)
COM
  • 4 x 4-Wire RS-232/422/485
DIO
  • 1 x DIO with isolation, 16-CH DI, 8-CH DO, 2-CH SSR
GMSL
  • 4 x GMSL camera interface (FAKRA universal type)
CAN
  • 2 x CAN 2.0 A/B with isolation
Display
  • 1 x HDMI (4K x 2K @30Hz)
Storage
  • 1 x M.2 Key M 2280 for NVMe
Audio
  • 1 x Mic-in
  • 1 x Line-out
Expansion Interface
  • 1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth module
  • 1 x M.2 Key B 3052 slot for 5G module
  • 1 x M.2 Key M 2242 slot for AI module
  • 1 x SIM slot
Others
  • 4 x Antenna opening
Power Supply
  • 9 to 60VDC, typical 24V or 48V battery
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Humidity
  • 10% to 95%, non-condensing
Vibration Endurance
  • 5 Grms (5 to 500Hz, X, Y, Z directions)
Dimensions
  • 289 x 106.5 x 161.7 mm (11.38" x 4.19" x 6.37")
Shock
  • IEC 60721-3-5 5M3 shock operating
Weight (net/gross)
  • 3.87 kg (8.53lb)
OS Support
  • Linux Ubuntu 20.04 LTS
Software Support
  • Axiomtek AMR Builder Package
  • Intel® OpenVINOTM
  • ROS/ROS 2
Certifications
  • CE, FCC Class A, UKCA

Ordering Information

  • ROBOX500-AD-174 (P/N-E27V500100)
    Fanless AMR controller Intel® Core™ i7-1265UE 15W TDP, 3 LAN, 6 USB, four 4-wire RS-232/422/485, 2 CAN, 16 DI, 8 DO, 4 GMSL, HDMI, Mic-in/Line-out, and 9 to 60 VDC
  • ROBOX500-AD-274 (P/N-E27V500101)
    Fanless AMR controller Intel® Core™ i7-1270PE 28W TDP, 3 LAN, 6 USB, four 4-wire RS-232/422/485, 2 CAN, 16 DI, 8 DO, 4 GMSL, HDMI, Mic-in/Line-out, and 9 to 60 VDC
  • ROBOX500-RP-274 (P/N-E27V500102)
    Fanless AMR controller Intel® Core™ i7-1370PE 28W TDP, 3 LAN, 6 USB, four 4-wire RS-232/422/485, 2 CAN, 16 DI, 8 DO, 4 GMSL, HDMI, Mic-in/Line-out, and 9 to 60 VDC
  • 590000030900
    CAN and DO cable L=3M
  • 590000031100
    RS-232 cable L=3M
  • 590000031000
    RS-422/485 cable L=3M
  • 590000030800
    DI cable L=3M
  • 590000031300
    FAKRA for GMSL camera cable L=3M
  • Power cord
  • LTE module
  • DDR memory
    DDR4 SO-DIMM 8GB or above
  • M.2 NVMe
    128GB or above
  • Wi-Fi/LTE/5G module kit

Download

Drivers

Software

Manual

Date Description Version Download File
2024/09/30 ROBOX500 User's Manual VA2_09-19-2024 VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/06/21 CE LVD Verification
2024/06/21 UKCA Declaration of Conformity
2024/06/21 CE-Conformity Declaration
2024/06/21 FCC Verification
2024/06/21 CE EMC Verification

Frequently Asked Questions

You Might Also Like

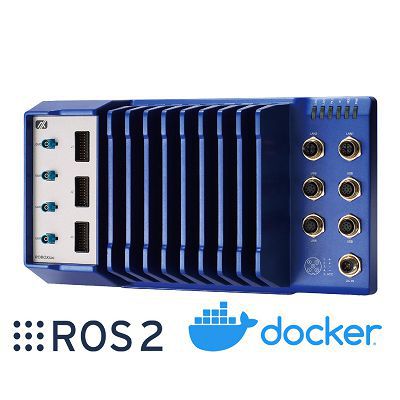

Picture of AMR Builder Package

AMR Builder Package

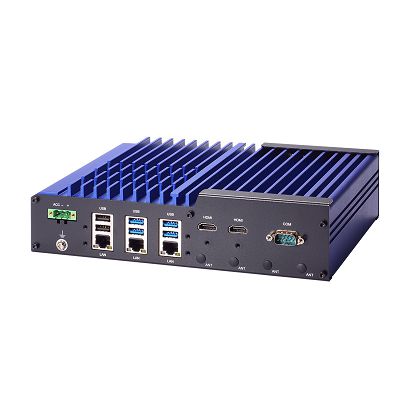

Picture of ROBOX300
