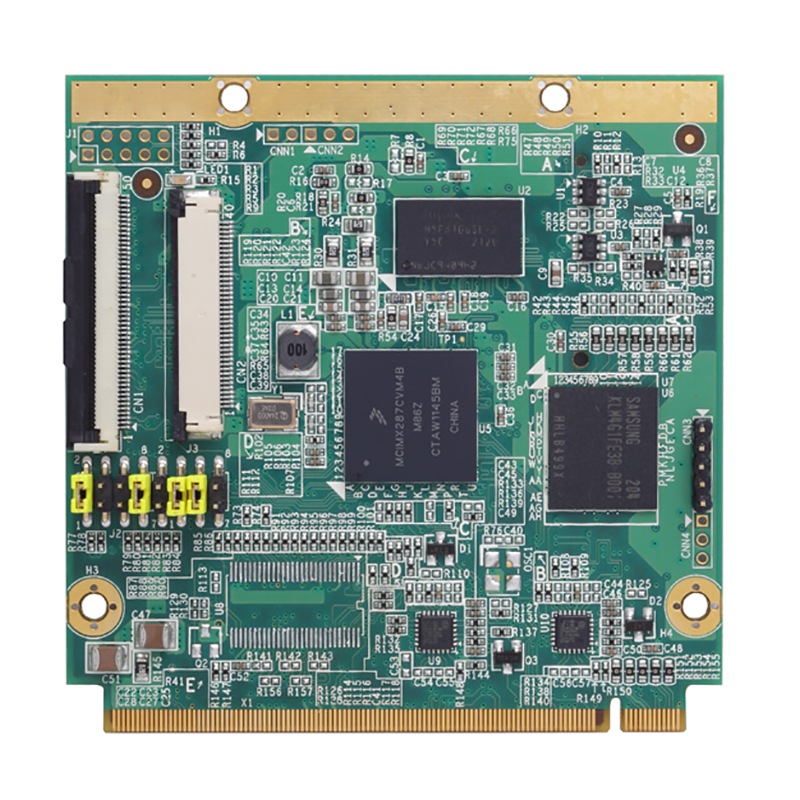

Q7M100

Status : Available

Qseven v1.2 SoM with i.MX287 454 MHz (Industrial) SoC, 128MB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Q7M100
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Ultra low power consumption ARM9
  • High flexibility Qseven v1.2 compliant design
  • 2 CANBus 2.0B compliant ports
  • 24-bit TTL LCD
  • Dual 10/100 Base-T Ethernet
  • Audio

Specifications

CPU
  • Freescale iMX-28 Series SoC with 287 ARM926EJ-S CPU running @ 454MHz
Chipset
  • SoC integrated
System Memory
  • Onboard DDR2-667, up to 128MB
BIOS
  • N/A
COM
  • 4 x COM with TX/RX/RTS/CTS (1 with 3.3V TTL level)
  • 1 x Console port
USB
  • 1 x OTG client
  • 1 x host
Ethernet
  • 2 x 10/100 Mbps
Display
  • LCD supported, up to 24-bit TTL RGB modes and 24-bit system mode
Audio
  • Mic-in/Line-out
I2C
  • 2 x I2C
GPIO
  • 8 interfaces, up to 400 kbps
CAN
  • 2 x CANBus 2.0B
Storage
  • 1 x eMMC flash 4 GB
  • 1 x SDHC interface
SPI
  • 1 channel for 2 chip select
Expansion
  • N/A
Others
  • N/A
Battery
  • Battery on the Baseboard is required
Power Requirement
  • +5V ± 5% @ 800mA
Watchdog Timer
  • N/A
Hardware Monitoring
  • N/A
Operating Temperature
  • -40ºC ~ 85ºC (-40ºF ~ 185ºF)
Relative Humidity
  • 10% ~ 95%, non-condensing
Dimensions
  • 70 x 70 mm
Board Thickness
  • 1.2 mm
Certifications
  • CE

Ordering Information

  • Q7M100-287
    Q7M100 with Freescale iMX-287 SoC, 128MB memory, 4GB eMMC and 1 GbE LAN, audio and CAN
  • Q7M100-100-EVK
    Evaluation kit board

Download

Drivers

Software

Manual

Date Description Version Download File
2017/05/04 Q7M100 manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity

You Might Also Like

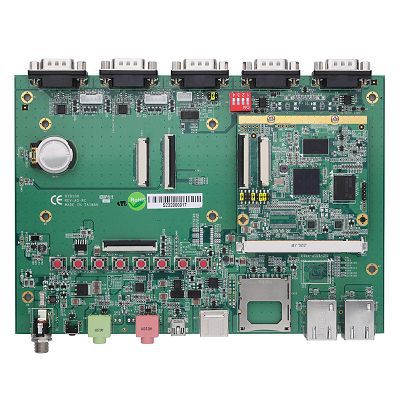

Picture of Q7M100-100-EVK
