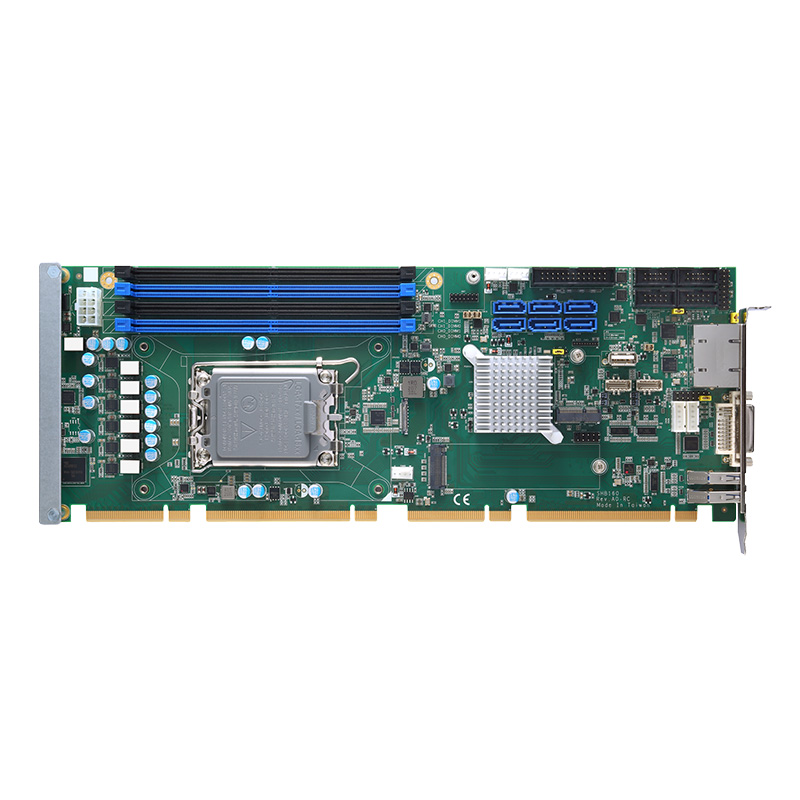

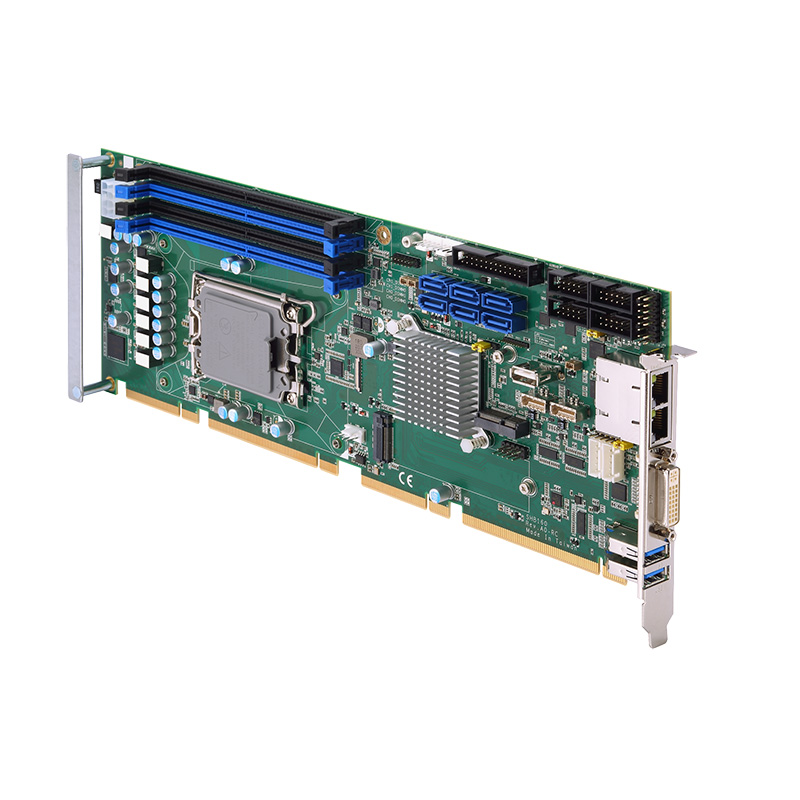

SHB160

Status : Available

PICMG 1.3 Full-size CPU Card with LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E/H610E, SATA 3.0, M.2 Key E/M, USB 3.2 Gen 1/Gen 2, Dual 2.5GbE LAN, and DVI-I

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SHB160
SHB160
2.5G LAN

2.5G LAN

DDR5

DDR5

PCIe Expansion

PCIe Expansion

TPM

TPM

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
  • Intel® R680E/H610E chipset
  • DDR5-4400 ECC (for R680E)/non-ECC U-DIMM, up to 192GB
  • Supports Intel® AMT and vPro (R680E)
  • Supports TPM 2.0 (optional)
  • Supports dual 2.5GbE LAN
  • Supports LPT port
  • Supports M.2 Key M and Key E
  • Supports PCIe 4.0 via the gold fingers

Specifications

CPU
  • LGA1700 14th/13th/12th gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® R680E/H610E
System Memory
  • 4 x DDR5-4400 ECC or non-ECC U-DIMM, up to 192GB (R680E)
  • 2 x DDR5-4400 non-ECC U-DIMM, up to 64GB (H610E)
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485 with mode selection controlled via software
USB
  • 2 x USB 3.2 Gen2x1 (rear I/O)
  • 4 x USB 3.2 Gen2x1 (internal box header); H610E supports only 2
  • 3 x USB 2.0 (2 via internal pin headers and 1 with a 180D Type-A connector). Note that the H610E does not include the 180D Type-A
  • 4 x USB 2.0 via SHB connector-C golden fingers
Ethernet
  • 1 x 2.5GbE (Intel® I226-LM; Intel® AMT with Intel vPro®)
  • 1 x 2.5GbE (Intel® I226-V)
Display
  • 1 x DVI-I (co-lay VGA by project)
  • 1 x DisplayPort (internal header)
Digital I/O
  • N/A
Audio
  • 1 x HD Codec audio as Mic-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage
  • M.2 Key M 2280 with PCIe 4.0 x4 support (R680E only)
  • 6 x SATA-600, support RAID 0/1/5/10 (R680E)
  • 4 x SATA-600 (H610E)
Expansion
  • 1 x PCIe Gen 4 x16
  • 1 x PCIe Gen 3 x4 or 4 x PCIe Gen 3 x1
  • 4 x 32-bit PCI bus master
  • 1 x M.2 Key E 2230
Others
  • 1 x PS/2 keyboard internal connector
  • 1 x PS/2 mouse internal connector
  • 1 x LPT
  • 1 x Smart CPU fan
  • 2 x Smart system fan
  • TPM 2.0 module (optional)
Battery
  • Lithium 3V/220 mAH
Power Requirements
  • Intel® Core™ i5-12400 with 32GB 4 x DDR5-4400, +12V_CPU @5.2A , +5V @4.64A, +3.3V @1.76A
Watchdog Timer
  • 225 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 338 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • SHB160-R680E-DGG PCIex4 (P/N-E38C160100)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® R680E, ECC, DVI-I, 2.5GbE LAN, 6 SATA, and PCIe x4 BIOS
  • SHB160-H610E-DGG PCIex4 (P/N-E38C160101)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® H610E, DVI-I, 2.5GbE LAN, 4 SATA, and PCIe x4 BIOS
  • SHB160-R680E-DGG PCIex1 (P/N-E38C160102)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® R680E, ECC, DVI-I, 2.5GbE LAN, 6 SATA, and PCIe x1 BIOS
  • SHB160-H610E-DGG PCIex1 (P/N-E38C160103)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® H610E, DVI-I, 2.5GbE LAN, 4 SATA, and PCIe x1 BIOS
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 59401502800E
    1 x Dual USB 3.2 (Gen2x1) cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500mm
  • E393242100
    AX93242-RC HD audio converter kit
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 594826A0010E
    DVI-I to DVI-D+VGA Y cable
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 83987091000E
    DisplayPort kit
  • 711000001500
    2U special cooler kit for SHB160, compatible, 125W
  • 711000001400
    1U special cooler kit for SHB160, compatible, 65W
  • 711000003800
    1U special cooler with blower fan for SHB160

Download

Drivers

Date Description Version Download File
2025/02/26 ME Driver VA1.0
2025/02/26 RST Driver VA1.0
2025/02/26 Graphic Driver VA1.0
2025/02/26 Chipset Driver VA1.0
2025/02/26 Serial IO Driver VA1.0
2025/02/26 LAN Driver VA1.0
2025/02/26 Audio Driver VA1.0

Software

Manual

Date Description Version Download File
2024/09/11 User's Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/01/17 CE-Conformity Declaration
2024/01/17 UKCA Declaration of Conformity

Frequently Asked Questions

You Might Also Like

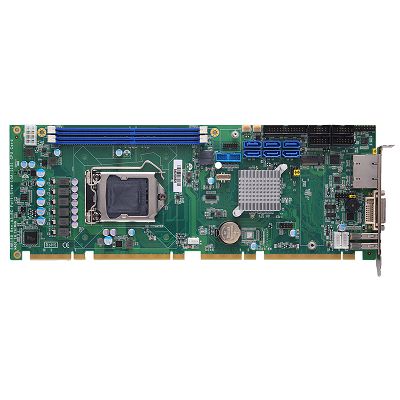

Picture of SHB150R
