KIWI310

Status : Available

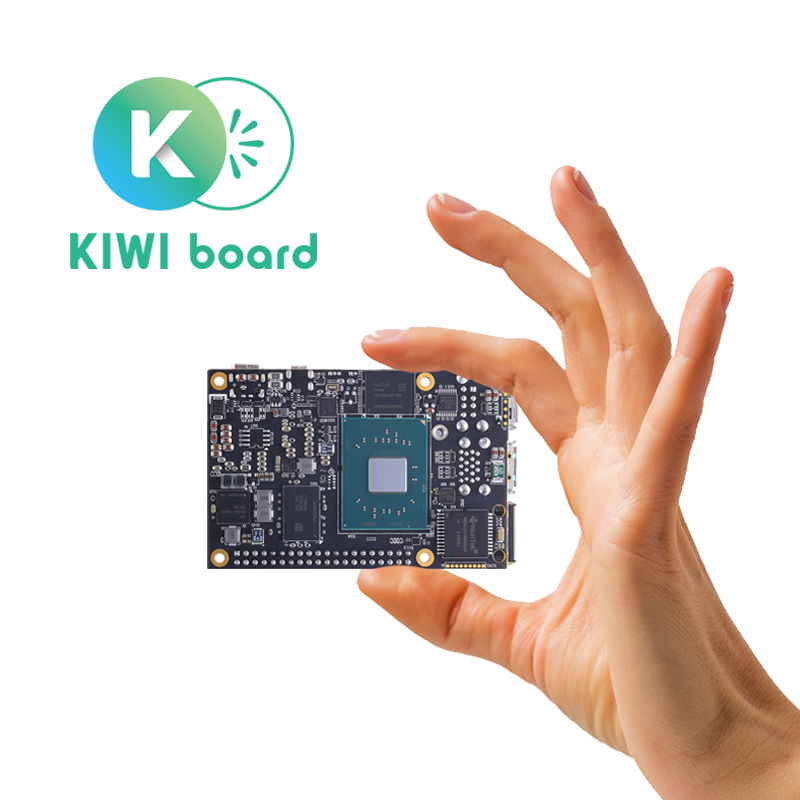

1.8" SBC with Intel® Celeron® Processor N3350 or Pentium® Processor N4200, Micro HDMI, 1 GbE LAN, 2 USB 3.2, and 40-pin GPIO

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
KIWI310
KIWI310
KIWI310
KIWI310
KIWI310
Fanless

Fanless

Low Power

Low Power

LPDDR

LPDDR

Solid CAP

Solid CAP

USB Type C

USB Type C

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Ultra-compact 1.8-inch form factor for space-constrained applications
  • Low-power edge computing capability
  • USB Type-C power delivery support
  • Flexible industrial I/O and control interfaces

Specifications

CPU
  • Intel® Celeron® processor N3350 or Pentium® Processor N4200
Chipset
  • SoC integrated
System Memory
  • Onboard LPDDR4, up to 4GB
BIOS
  • AMI
COM
  • N/A
USB
  • 2 x USB 2.0
  • 2 x USB 3.2
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (REALTEK RTL8111)
Display
  • 1 x Micro HDMI
GPIO
  • 40-pin GPIO including UART, I2C, SPI, GPIO, and Pulse-width Modulation (PWM)
Audio
  • N/A
Storage
  • eMMC, up to 64GB
Expansion
  • 1 x M.2 Key E 2230 (USB 2.0, PCIe)
Others
  • N/A
Battery
  • Lithium 3V/220 mAh
Power Input
  • USB power delivery, supporting USB Type-C PD, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
Power Consumption
  • DC-in 12V input
  • Idle: 1.2W
  • Max. load: 12.0W
  • USB Type-C 20V input
  • Idle: 3.1W (with adapter loss)
  • Max. load: 13.1W (with adapter loss)
  • Note: Power consumption measured under Windows 10 Enterprise, Intel® Celeron® processor N3350, LPDDR4 4GB, eMMC 64GB, with 100% CPU/2D/GPGPU/RAM/Disk loading.
Watchdog Timer
  • 255 levels, 1 to 255 sec
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32° F to 140° F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 85mm × 56mm
Operating System
  • Windows, Linux
  • Android (by request.)
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis

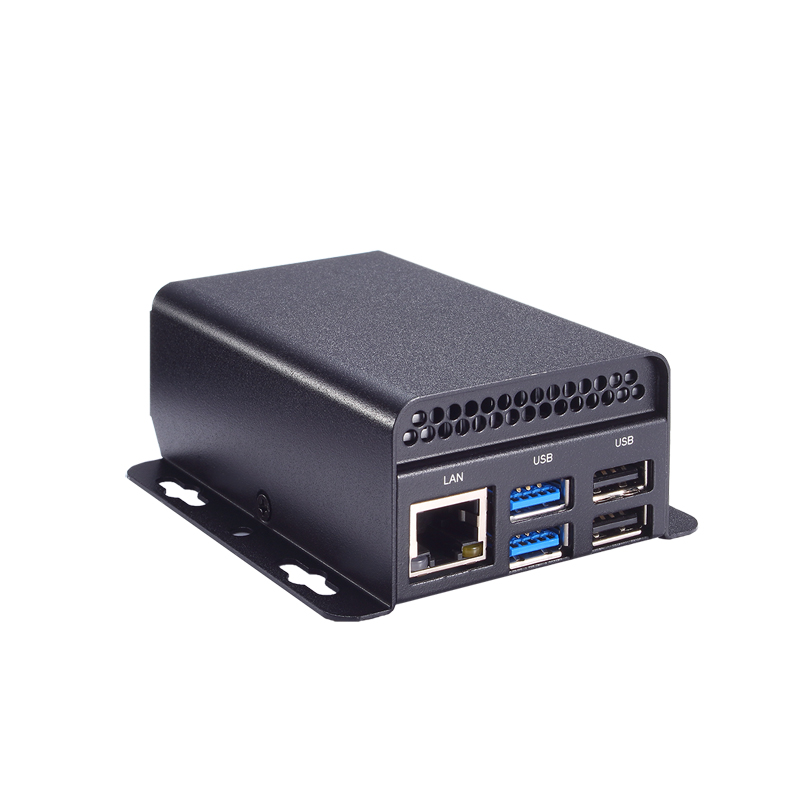

  • APC208: Fanless embedded chassis for KIWI310
  • SBC Option: KIWI310-J2C-H (P/N: E3D0310101)
  • I/O: 1 x GbE LAN, 2 x USB 3.2, 2 x USB 2.0, 1 x micro HDMI, 1 x USB Type-C power input
  • Dimensions: 60 x 96 x 37 mm (2.36" x 3.78" x 1.46)
  • Operating Temperature: 0°C to +40°C (+32° F to 104° F)

Ordering Information

  • KIWI310-J2C-H (P/N-E3D0310101)
    1.8" SBC with Intel® Celeron® processor N3350, 4GB LPDDR4, 64GB eMMC, Micro HDMI, 1 GbE LAN, 2 USB 3.2, and 2 USB 2.0
  • APC208-4G-64G (P/N-E27P208101)
    APC208 with Intel® Celeron® processor N3350, 4GB LPDDR4 & 64GB eMMC, and 65W PD adaptor
  • 509000000100
    USB Type-C power delivery adaptor, FSP065-A1BR3
  • 59902000030E
    Power cord
