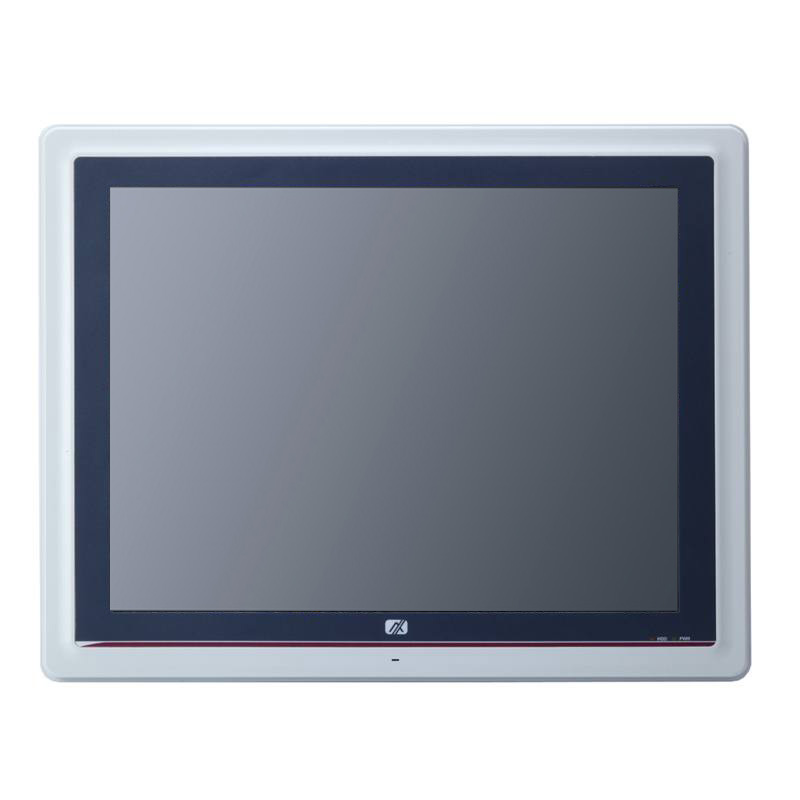

GOT5152T-845

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 15" XGA TFT LCD display with LED backlight
    • Fanless cooling system with Intel® Celeron® processor N3060
    • WLAN module and internal antenna
    • 2 Gigabit LANs, 4 USB and 2 COM ports
    • PCI Express Mini Card for easy expansion
    • Supports optional panel mount/wall mount/desktop stand
    • Supports RFID (optional)
    • Plastic and IP65-rated front bezel

    Introduction

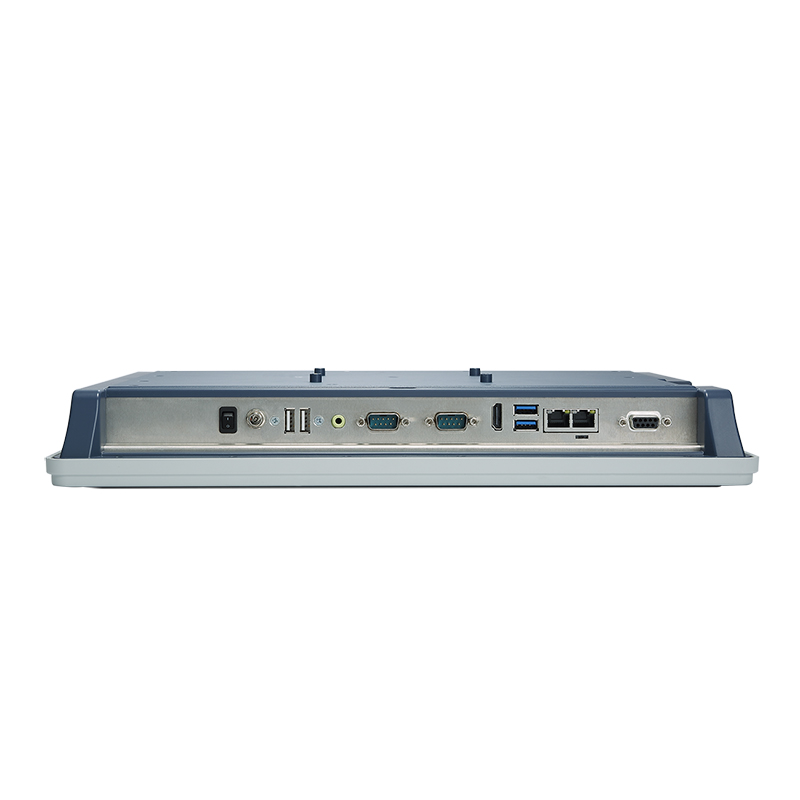

    The GOT5152T-845 is powered by the Intel® Celeron® processor N3060 and features 15" XGA TFT LCD display with LED backlight and 450 nits brightness. With a thickness of 54.6 mm, the budget-friendly 15-inch touch panel computer comes with one RS-232 port, one RS-232/422/485 port, two USB 2.0 ports, two USB 3.0 ports, two Gigabit LAN ports (Intel® i211AT Ethernet controller), one 8-bit DIO port, one HDMI port, and one audio port (Line-out). There is also an easily accessible external switch for AT/ATX mode selection. Besides, one 2.5” SATA HDD and one mSATA are available for additional storage expansion. Other highlights include two full-size PCI Express Mini Card slots and a built-in WLAN antenna for wireless network connectivity options. Various mounting kits such as panel mount, wall mount and desktop stand are supported. With an IP65-rated protection, light weight and ultra slim design, the GOT5152T-845 provides low power, reliable quality, rich features and cost-effectiveness for self-service kiosk and various smart automation applications.

  • LCD Panel
    • 15" XGA TFT LCD with LED backlight
    • 450 nits
    • 1024 x 768
    CPU
    • Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz)
    Chipset
    • SoC integrated
    System Memory
    • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
    BIOS
    • AMI
    COM
    • 1 x RS-232
    • 1 x RS-232-422-485 (default RS-232)
    USB
    • 2 x USB 2.0
    • 2 x USB 3.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i211AT)
    Display
    • 1 x HDMI
    Audio
    • Line-out
    Storage
    • 1 x 2.5" SATA HDD
    • 1 x mSATA
    Expansion
    • 1 x full-size PCI Express Mini Card with mSATA
    • 1 x full-size PCI Express Mini Card with SIM slot
    Others
    • 1 x 8-bit DIO port (programmable, DB9)
    • 1 x switch for power on/off
    • 1 x AT/ATX mode selection switch
    Touchscreen
    • 5-wire resistive touch
    Front Bezel
    • IP65, NEMA 4 rugged protection, plastic front bezel
    Power Supply
    • DC version: 24 VDC overcurrent protection fuse
    • AC version: 100 ~ 240 V AC-DC, 60W power adapter
    Power Comsumption
    • 32 W
    Watchdog Timer
    • 255 levels, 0 ~ 255 sec.
    Operating Temperature
    • 0°C ~ +50°C (+32°F ~ +122°F)
    Relative Humidity
    • 20% ~ 90% @ +40°C; non-condensing
    Vibration
    • 2G, 10 ~ 500Hz, random for SS
    Dimensions
    (W x D x H)
    • 387.9 x 54.6 x 307.7 mm (15.27" x 2.14" x 12.11")
    Weight (net/gross)
    • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
    Certificate
    • CE
    EOS
    • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
    Mounting
    • Panel mount
    • Wall mount
    • VESA arm
    • Desktop stand
    • GOT5152T-845-24VDC
      15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)
    • GOT5152T-845-J
      15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector), and EMI class B
    • Wi-Fi + Bluetooth kit
    • Panel Mount kit
    • Wall Mount kit
    • Stand kit
    • Speaker kit
    • RFID kit
  • Drivers

    Software

    Date Description Version Download File
    2017/07/11 Wifi Module.part1 VA1.0 716,800KB
    2017/07/11 Wifi Module.part2 VA1.0 513,855.8KB
    2017/07/11 AX-USB30-Utility VA1.0 856.9KB
    2017/07/11 PCT TOUCH Calibration (For GOT5103) VA1.0 16,037KB

    Manual

    Date Description Version Download File
    2017/07/11 GOT5152T-845 User's Manual_VA1_06-08-2017 VA1.0 2,953.5KB
