Rugged Marine HMI Solutions for Reliable Vessel Control
|
|
| |
Reliable vessel control is essential for ensuring the safety of crew, cargo, and mission-critical operations at sea. Marine environments are harsh and unpredictable, with fluctuating power, strong vibrations, and limited visibility at night. To maintain safe and efficient operations, vessels require HMI solutions that can withstand these conditions while providing consistent control and monitoring.
|
|
|
| |
|
The customer, a global technology partner with expertise in marine and offshore applications, faced the task of implementing a next-generation data control and monitoring system for marine vessels. The solution had to ensure safe night-time visibility and stable performance under fluctuating power, while offering rugged durability against shocks and vibrations—all in full compliance with strict marine standards.
|
| |
| Main Requirements |
- 0.3nits min brightness, 1–100% dimming for night use
- Metal Mesh PCT for IEC 60945 EMI compliance
- 1.5kV isolated 24V DC power input
- Shock 23G (20ms), vibration 0.7g for marine durability
|
| |
|
Axiomtek GOT307-C for Reliable Vessel Control
|
|
| |
|
In collaboration with a shipbuilder, the customer integrated Axiomtek's GOT307-C panel PC into its HMI system to enhance vessel control and monitoring. Built for demanding marine environments, the GOT307-C delivers clear visibility at night, EMI-compliant reliability, secure vibration-resistant connections, and an operating range of 0°C to +45°C. Its rugged construction ensures continuous, dependable operation even under harsh sea conditions.
|
 |
| |
|
Data Control and Monitoring for Marine
|
| |
|
The GOT307-C panel PC provides reliable vessel control and monitoring even in the most challenging marine conditions. Its 7-inch WXGA display offers ultra-low 0.3-nit brightness with full 1-100% dimming for safe night-time operation, while the 1.5kV isolated 24V DC input stabilizes power under fluctuating conditions. Designed to endure 23G shocks and 0.7g vibrations, the system delivers consistent performance and durability at sea.

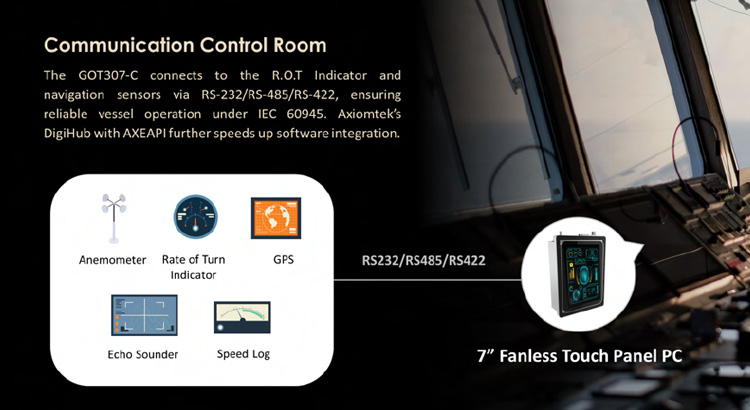

The system interfaces with the R.O.T. indicator and navigation sensors via RS-232/RS-485/RS-422, integrating through the communication server to provide safe and dependable vessel operations in full compliance with IEC 60945 standards. Additionally, Axiomtek’s DigiHub, featuring AxEAPI, streamlines software integration, helping customers save time and accelerate deployment.
|
 |
| |

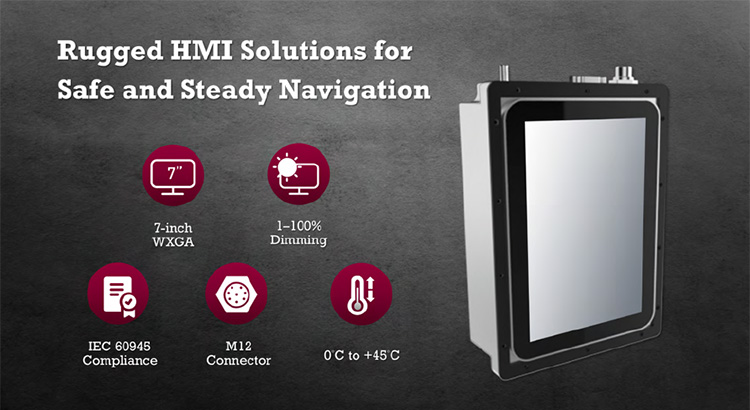

| GOT307-C: Lightweight 7” Fanless Touch Panel PC |
- Intel® N50 processor with 8GB LPDDR5 memory
- 7” WXGA anti-glare display with metal mesh PCT, 425 nits, 1–100% dimming
- Connectivity: LAN, USB 2.0, DB9, grounding stud, battery hatch
- IEC 60945 EMI compliant for marine use
- 24V DC isolated power via M12 connector
- Operating temperature: 0°C to 45°C
|
| |
|
|
| |
|
Axiomtek helps customers achieve reliable and safe vessel operations in the most demanding marine environments. Its solutions ensure clear night-time visibility, stable performance under fluctuating power, and rugged durability against shocks and vibrations—all fully compliant with marine standards. This allows customers to confidently operate critical control and monitoring systems, safeguarding both vessels and mission-critical operations at sea.
What impressed us most about the GOT307-C was how purpose-built it is for maritime environments. From its ultra-low brightness for night operations to its EMI compliance and power isolation, every feature is designed to address specific challenges we face on the water. It integrated seamlessly with our system, and our crews immediately noticed the difference in reliability and usability.
|
| |
|
|
|
