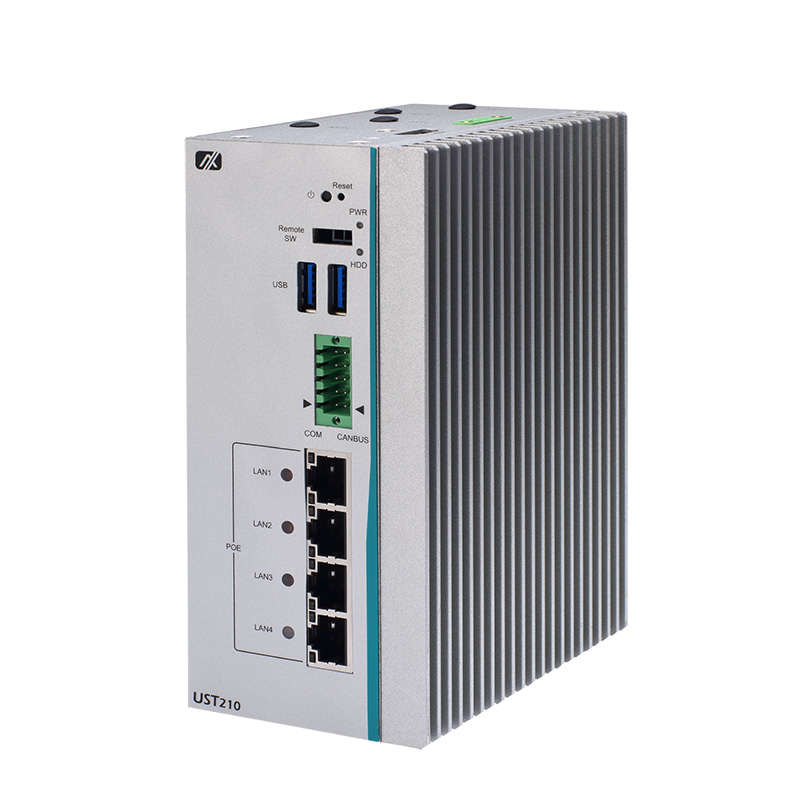

Features
- CE, FCC and E-Mark certified
- Intel Atom® x5-E3940 processor
- Extreme cost-effective with fanless and cableless design
- Wide operating temperature range from -40°C to +70°C
- Supports typical 12V and 24V DC in-vehicle power input
- Smart Ignition for power on/off schedule, vehicle battery protection, and different power modes
- Supports COM, CAN, USB, and GbE PoE LAN
- 8-bit programmable DIO for IoT gateway applications
Introduction
The IMB530 is powered by the LGA1200 socket 11th/10th generation Intel® Core™ i9/i7/i5/i3, Intel® Xeon® W, Intel® Pentium® or Intel® Celeron® processor with the Intel® W480E chipset. The ATX motherboard is designed to deliver unrivaled performance, multiple connectivities, and stunning graphical performance for system developers in designing a multifunctional system. The IMB530 supports two PCIe x16 slots, three PCIe x4 slots, one PCIe slot and one PCI slot for a diverse range of configurations including GPU cards, AI accelerators and frame grabber cards. Other expansion option includes M.2 Key M 2280 NVMe SSD for increased read/write performance. In addition, the industrial ATX motherboard is integrated with the Intel® HD Graphic, which enables three simultaneous 4K displays via DisplayPort++, VGA, DVI-D, and HDMI. The IMB530 is aimed at AI-integrated systems, iHPC, video surveillance, industrial automation, machine vision, and more.
