DSP311

Status : Available

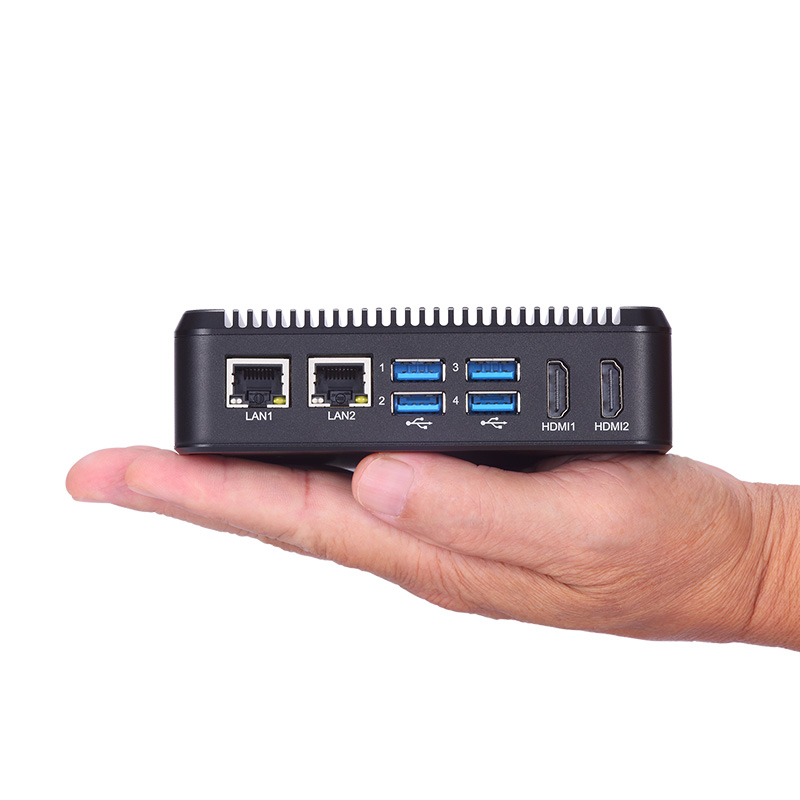

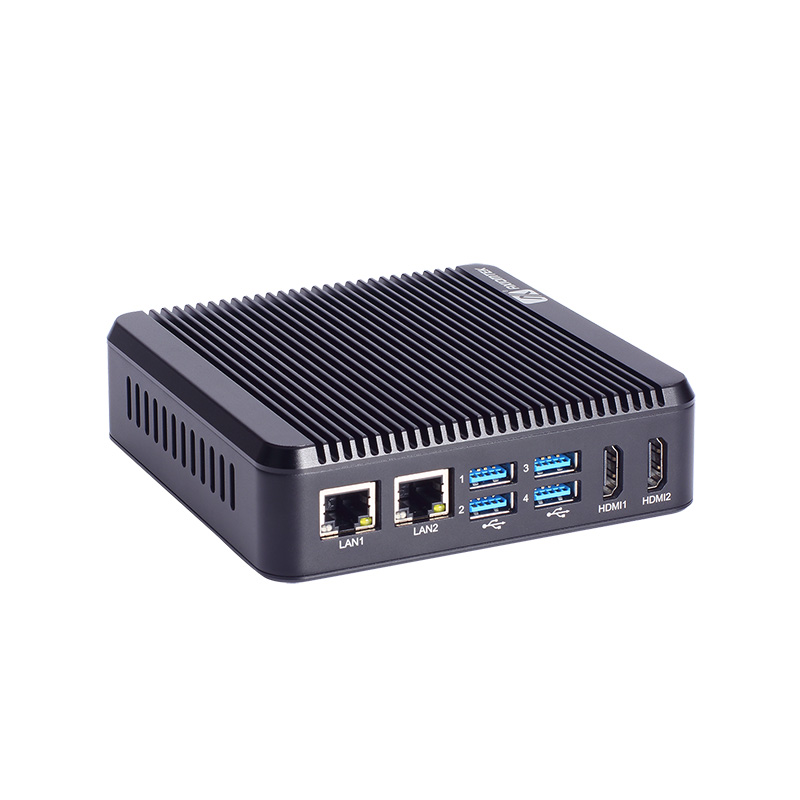

Digital Signage Player with Intel® Processor N97, 2 HDMI 2.0, 2 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
DSP311
DSP311
DSP311
4K

4K

Compact

Compact

Fanless

Fanless

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® processor N97
  • 1 DDR4 SO-DIMM, up to 16 GB
  • 2 HDMI 2.0, up to 4096 x 2160 @ 60Hz
  • 2 GbE LAN
  • 4 USB 3.2
  • Fanless design

Specifications

CPU
  • Intel® Processor N97
Chipset
  • SoC Integrated
System Memory
  • DDR4 8GB 260-pin SO-DIMM (Default)
Watchdog Timer
  • 255 levels, 5 to 255 minutes
COM
  • 2 x RS-232 (DB9)
USB
  • 4 x USB 3.2
Ethernet
  • 2 x RJ-45 LAN 10/100/1000M (Realtek 8111H)
Display
  • 2 x HDMI
Audio
  • 1 x Mic-in
  • 1 x Speaker-out
Storage
  • 1 x PCI Express Mini Card slot, supporting mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot for WiFi/BT/3G/4G (PCIe x1, USB 2.0 signal)
Others
  • 1 x Power switch
TPM
  • Supports Intel® PTT
Power Supply
  • +12V DC-in
Vibration Endurance
  • N/A
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions<br>(W x D x H)
  • 137 x 127 x 41 mm (5.39" x 5" x 1.61")
Weight (net/gross)
  • 0.5 kg (1.1 lb)/1 kg (2.2 lb)
Mounting
  • Wall mount
EOS Support
  • Win11, Linux
Software Support
  • N/A
Certifications
  • CE

Ordering Information

  • DSP311
    Digital signage player with Intel® Processor N97, 2 HDMI, and 2 LAN

Download

Drivers

Date Description Version Download File
2026/03/11 Audio Driver VA1.0
2026/03/11 LAN Driver VA1.0
2026/03/11 CSME Driver VA1.0
2026/03/11 Graphic Driver VA1.0
2026/03/11 Chipset Driver VA1.0

Software

Manual

Date Description Version Download File
2026/03/11 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Frequently Asked Questions

You Might Also Like

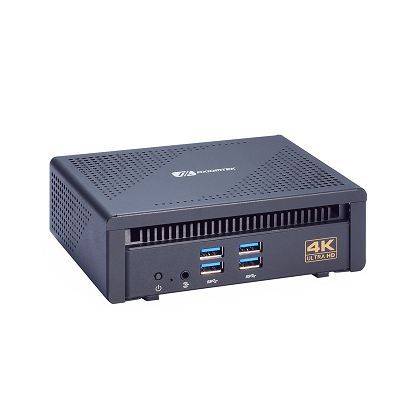

Picture of DSP302
