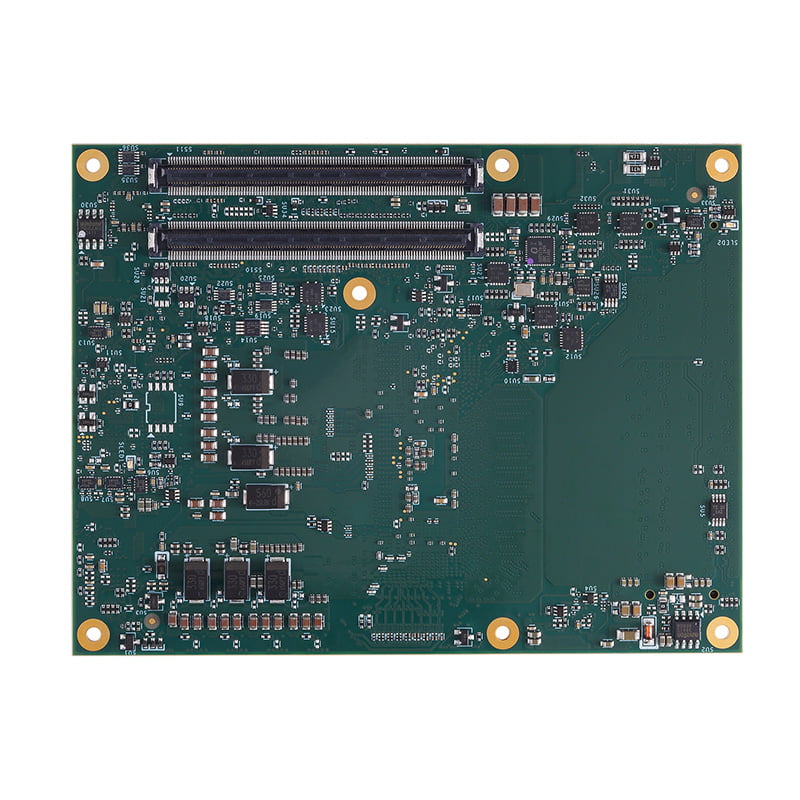

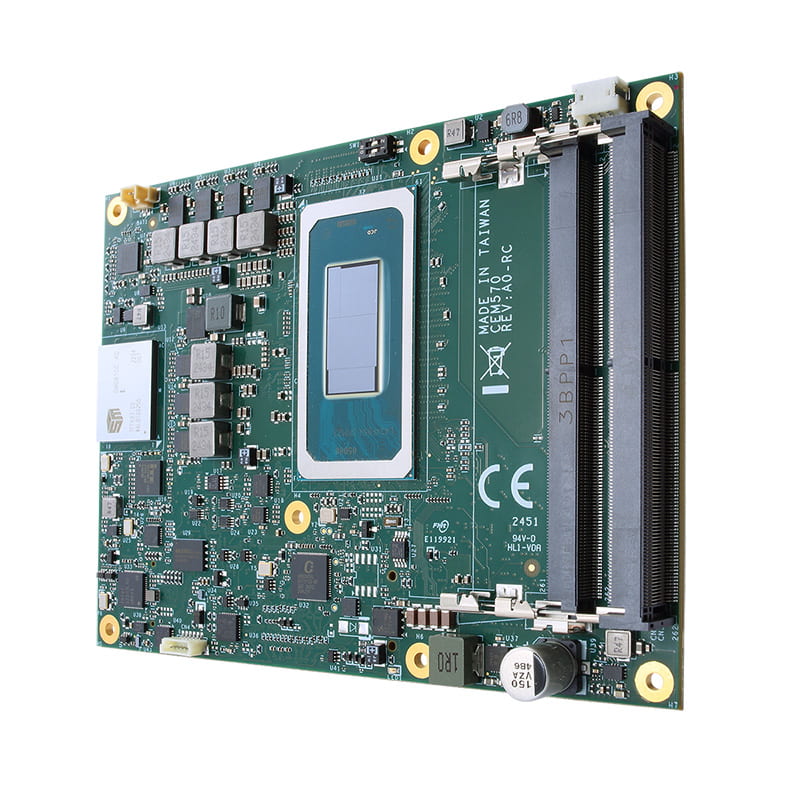

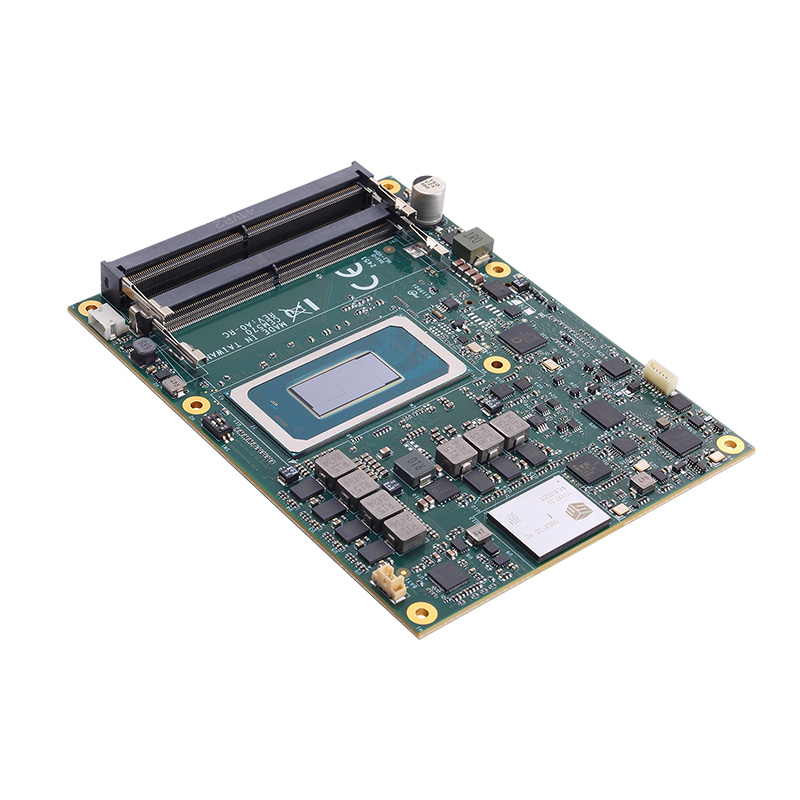

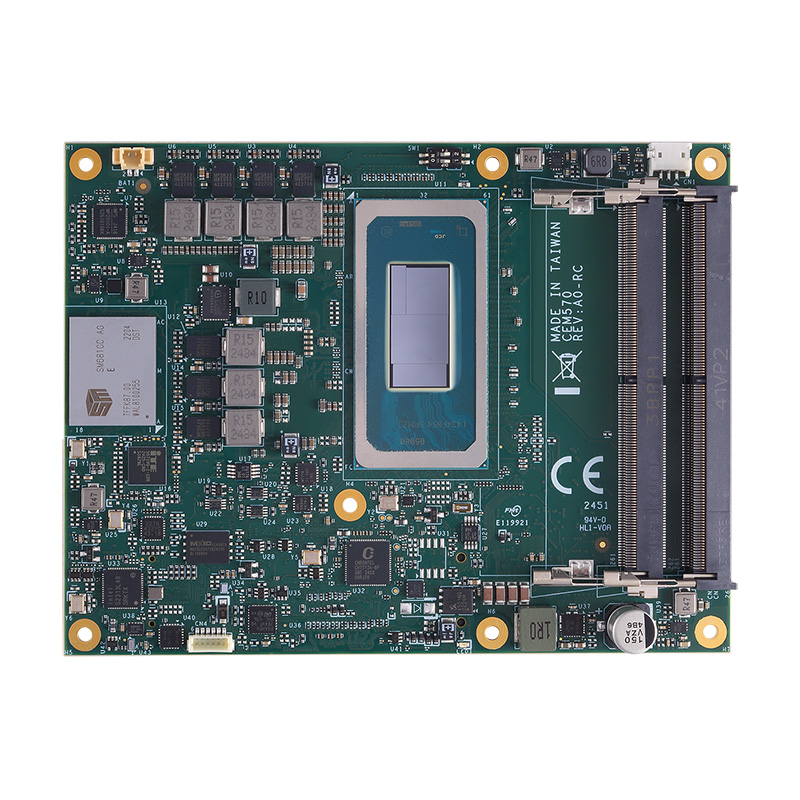

What is the CEM570 designed for? + The CEM570 is a COM Express Type 6 Basic module designed for Edge AI, machine vision, robotics, medical imaging, transportation, defense, and other high-performance embedded applications requiring AI acceleration and long-term reliability.
What processors power the CEM570? + It is powered by Intel® Core™ Ultra processors (Meteor Lake U/H series), offering up to 14 cores and 20 threads for advanced edge computing workloads.
How does the CEM570 accelerate AI applications? + The module integrates Intel® Graphics and a dedicated NPU, enabling efficient AI inference and multitasking directly at the edge without requiring discrete GPU accelerators.
What memory capabilities does the CEM570 offer? + It supports dual-channel DDR5-5600 SO-DIMM memory with capacities of up to 96GB, providing high bandwidth for AI and data-intensive applications.
How much expansion flexibility does the CEM570 provide? + The module offers up to 20 PCIe lanes, enabling integration of high-speed peripherals, AI accelerators, frame grabbers, and other expansion devices.
What storage options are available? + It supports onboard NVMe storage up to 512GB, along with dual SATA 3.0 interfaces for additional storage flexibility.
What connectivity features are included? + The CEM570 provides up to four USB 3.2 Gen 2 ports, eight USB 2.0 ports, and integrated 2.5GbE Ethernet based on the Intel® I226 controller.
Is the CEM570 suitable for machine vision and sensor-rich applications? + Yes, its high-bandwidth architecture supports synchronized data transmission from multiple cameras and sensors while maintaining low-latency system responsiveness. Its standardized COM Express Type 6 Basic design allows customers to reuse existing carrier boards, reducing redesign effort and significantly accelerating product development.
How durable is the CEM570 for industrial deployments? + It supports an optional operating temperature range from -40°C to +85°C and vibration resistance up to 3.5 Grms, making it suitable for harsh environments.
Does the CEM570 include security features? + Yes, it supports TPM 2.0 for hardware-based security and trusted platform protection.
What lifecycle support does the CEM570 offer? + The module is backed by Axiomtek’s long-term support program, providing product availability and support for approximately 7 to 10 years.
Why choose the CEM570 for Edge AI deployments? + The combination of Intel® Core™ Ultra processors, integrated NPU acceleration, DDR5 memory, extensive I/O, and COM Express compatibility makes the CEM570 a scalable and future-ready platform for next-generation Edge AI applications.
