CEM511

Status : Available

COM Express Type 6 Compact Module with 7th Gen Intel® Core™ & Celeron® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

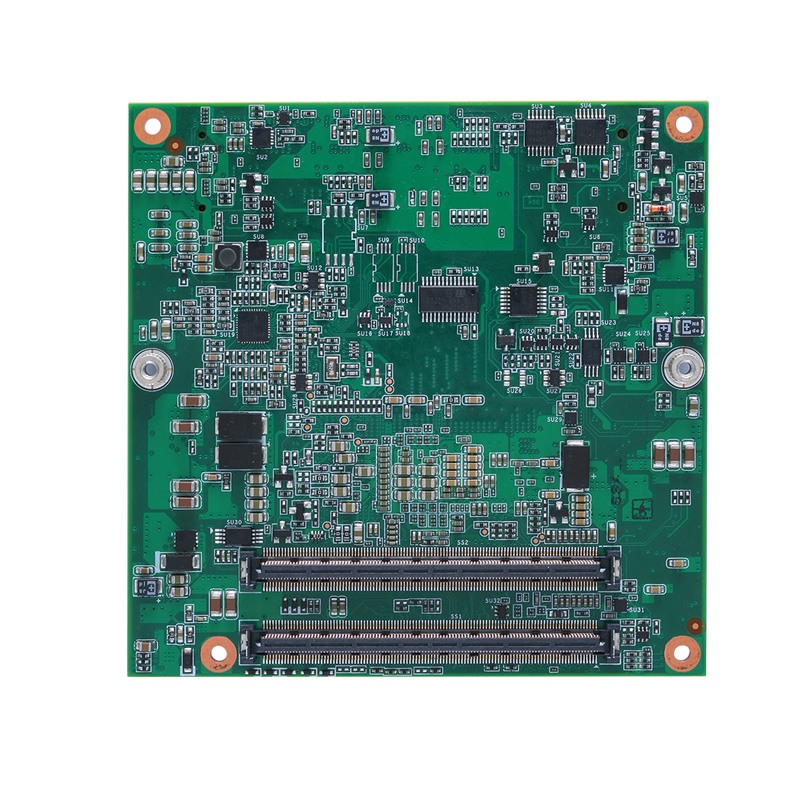

CEM511

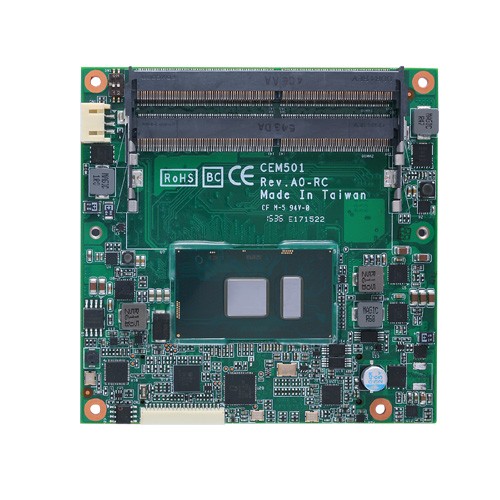

CEM511

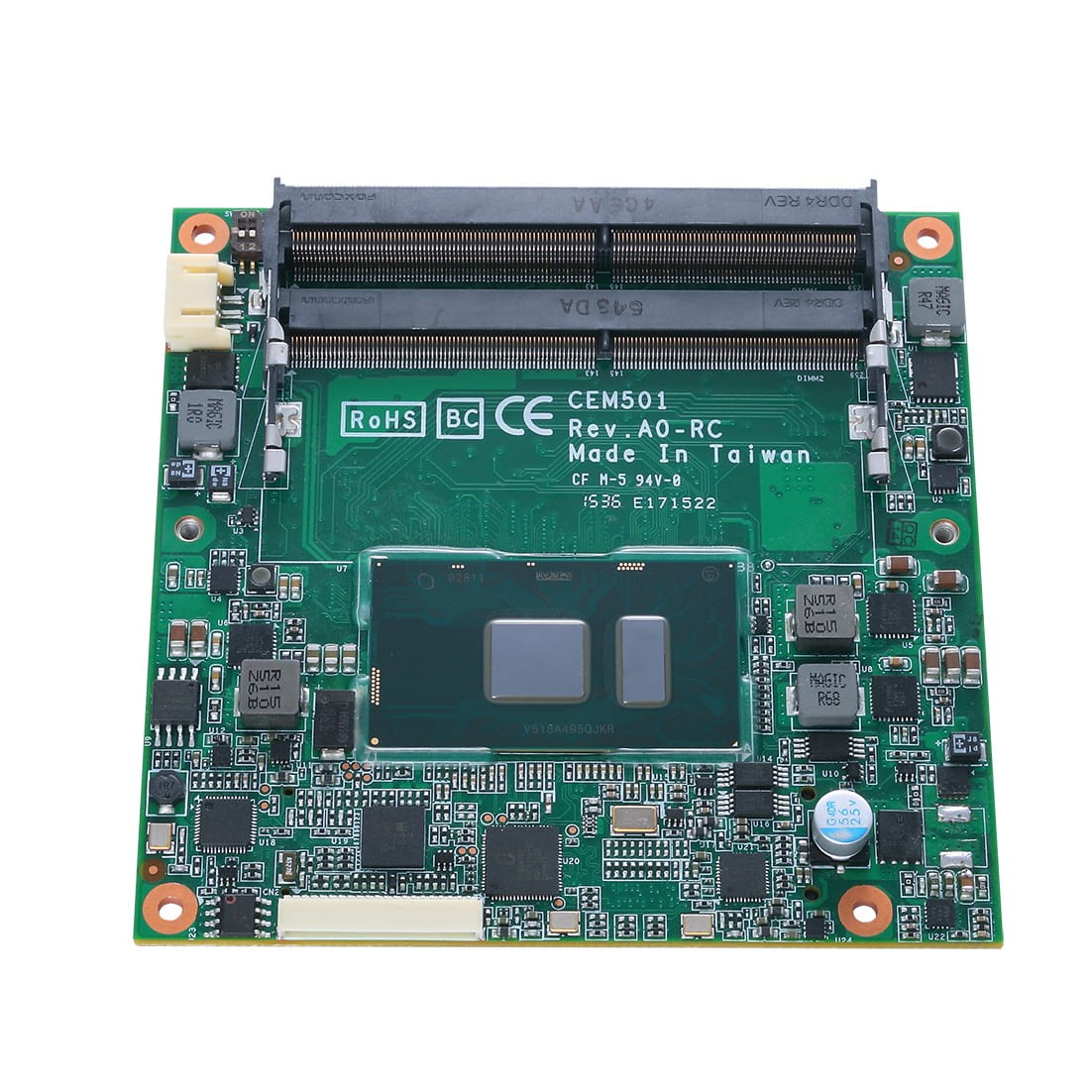

CEM511
Low Power

Low Power

Solid CAP

Solid CAP

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 7th gen Intel® Core™ i7/i5/i3 and Celeron® processors (Kaby Lake-U)
  • 2 DDR4-2133 SO-DIMM for up to 32GB of memory
  • Max. up to 6 lanes of PCI Express
  • 3 SATA-600
  • 4 USB 3.0 and 8 USB 2.0
  • TPM 1.2 supported
  • AXView 2.0 intelligent remote management software

Specifications

CPU
  • Intel® Core™ i7-7600U/i5-7300U/i3-7100U processor (Kaby Lake-U) & Intel® Celeron® processor 3965U
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin SO-DIMM DDR4-2133, up to 32GB
BIOS
  • AMI
Serial
  • 2 x TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219-LM)
Display
  • 2 x DDI (DP/HDMI/DVI)
  • 1 x LVDS (eDP optional)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • 3 x SATA-600
Expansion
  • 6 lanes of PCI Express Gen. 3.0
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C interface
  • Vibration 3.5 Grms
  • TPM 1.2
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM511PG-i7-7600U (P/N-E38D511102)
    COM Express Type 6 Compact module with Intel® Core™ i7-7600U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM511PG-i5-7300U (P/N-E38D511101)
    COM Express Type 6 Compact module with Intel® Core™ i5-7300U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM511PG-i3-7100U (P/N-E38D511100)
    COM Express Type 6 Compact module with Intel® Core™ i3-7100U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM511PG-Cel-3965U (P/N-E38D511103)
    COM Express Type 6 Compact module with Intel® Celeron® 3965U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEB94011 (P/N-E394011100)
    COM Express Type 6 application board
  • 7108D511000E
    CEM511 heat sink with fan
  • 5078D501200E
    CEM511 heat spreader

Download

Drivers

Date Description Version Download File
2017/07/11 Audio Driver V1.1
2017/07/11 LAN Driver V1.1
2017/07/11 ME Driver V1.1
2017/07/11 Graphic Driver V1.1
2017/07/11 Chipset Driver V1.1

Software

Manual

Date Description Version Download File
2018/11/14 Quick Manual V2.0
2018/11/14 User's Manual V2.0

Design Guide

Date Description Version Download File
2018/08/17 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/07 UKCA Declaration of Conformity

Frequently Asked Questions

You Might Also Like

Picture of CEM501

CEM501

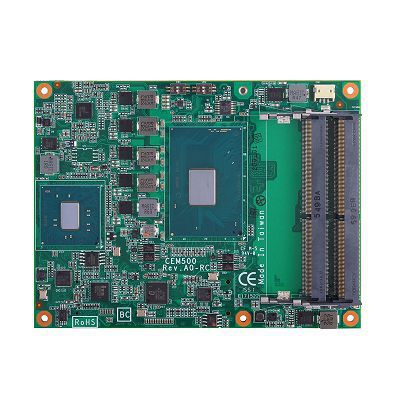

Picture of CEM500
