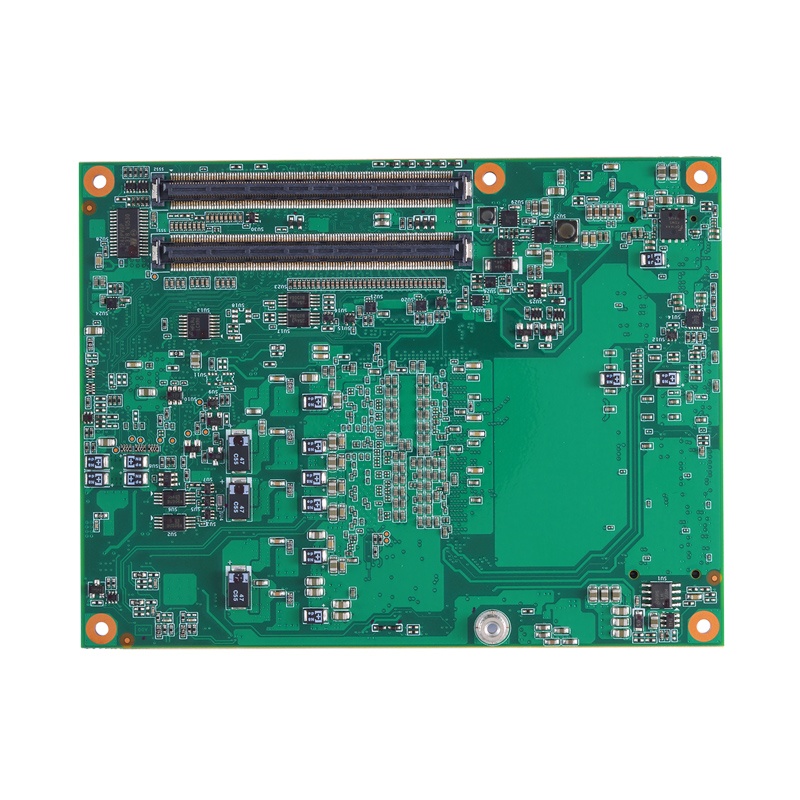

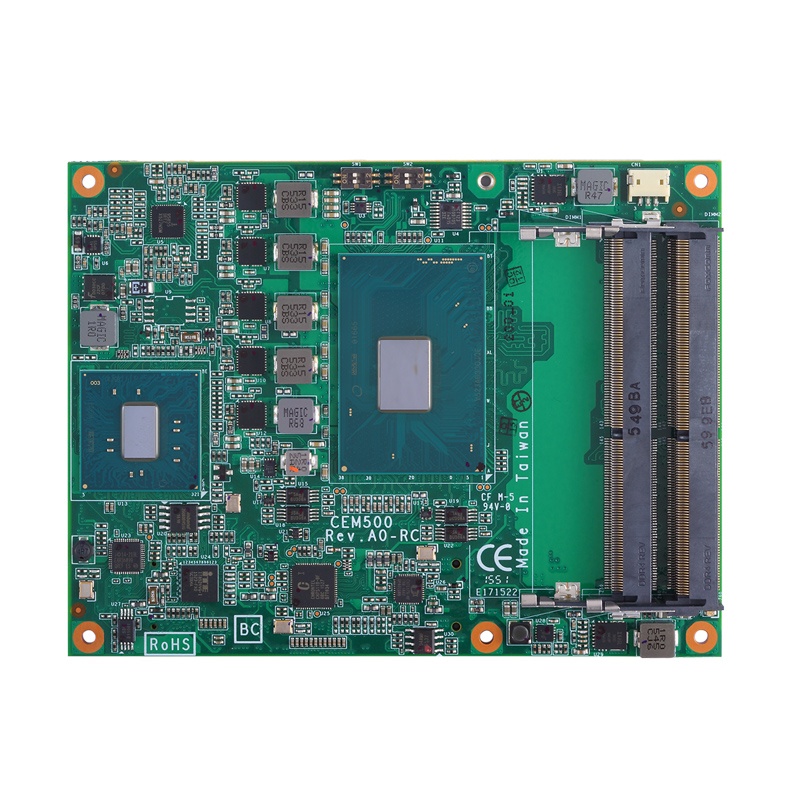

CEM510

Status : Available

COM Express Type 6 Basic Module with Intel® Xeon® E3/7th Gen Intel® Core™ i7/i5/i3 Processors and Intel® CM238/QM175/HM175

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM510
CEM510
AMT

AMT

Solid CAP

Solid CAP

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Xeon® E3 and 7th gen Intel® Core™ i7/i5/i3 processors (Kaby Lake-H)
  • Intel® CM238/QM175/HM175 chipset
  • 2 DDR4-2133 SO-DIMM slots, up to 32GB ECC or non-ECC
  • 1 PCIe x16 and 8 PCIe x1 (Gen3)
  • 4 SATA-600 with RAID 0/1/5/10
  • 4 USB 3.0 and 8 USB 2.0
  • Intel® AMT 11.0 and TPM 2.0 function supported

Specifications

CPU
  • Intel® Xeon® E3 and 7th gen Intel® Core™ i7/i5/i3 processors (Kaby Lake-H)
Chipset
  • Intel® CM238/QM175/HM175
System Memory
  • 2 x DDR4-2133 SO-DIMM, up to 32GB
BIOS
  • AMI
Serial
  • 2 x TX/RX serial interface
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 1 x LVDS ;18/24-bit single/dual channel (default), optional with eDP
  • 1 x VGA up to 1920 x 1200 @60Hz (default)
  • 2 x DDI (DP/HDMI/DVI)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16 Gen 3.0
  • 8 x PCIe x1 Gen 3.0
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C interface
  • TPM 2.0
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB; AT: +12V
Watchdog Timer
  • 65536 levels, 0 ~ 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC ~ +85ºC (-40ºF ~ +185ºF)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Vibration
Dimensions
  • 125 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM510-E3-1505M v6+CM238 (P/N-E38D510100)
    COM Express Type 6 basic module with Intel® Xeon® E3-1505MV6, CM238, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM510-I7-7820EQ+QM175 (P/N-E38D510102)
    COM Express Type 6 basic module with Intel® Core™ i7-7820EQ, QM175, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM510-i5-7440EQ+QM175 (P/N-E38D510103)
    COM Express Type 6 basic module with Intel® Core™ i5-7440EQ, QM175, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM510-I3-7100E+QM175 (P/N-E38D510104)
    COM Express Type 6 basic module with Intel® Core™ i3-7100E, QM175, DDI/LVDS, GbE LAN, USB 3.0 and TPM

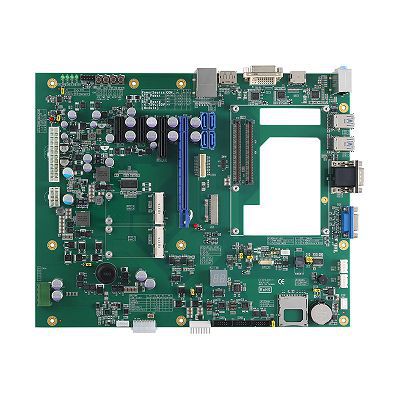

  • CEB94011 (P/N-E394011100)
    CEB94011 COM Express Type 6 evaluation board
  • TS008-CEM500 (P/N-E39J008100)
    CEM500 heat sink with fan
  • TS006-CEM500 (P/N-E39J006100)
    CEM500 heat spreader

Download

Drivers

Date Description Version Download File
2022/05/03 QM_HM_175-04.Intel Network Driver VA1.2
2022/05/03 QM_HM_175-03.Intel Management Engine Firmware VA1.2
2022/05/03 QM_HM_175-02.Intel Graphics Driver VA1.2
2022/05/03 QM_HM_175-01.Intel Chipset Software Installation Utility VA1.2
2022/05/03 CM238-04.LAN VA1.2
2022/05/03 CM238-03.Intel Management Engine Firmware VA1.2
2022/05/03 CM238-02.Intel Graphics Driver VA1.2
2022/05/03 CM238-01.Intel Chipset Software Installation Utility.zip VA1.2

Software

Manual

Date Description Version Download File
2018/11/14 Quick Manual VA1
2018/11/14 User Manual VA1

Design Guide

Date Description Version Download File
2018/08/17 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2022/05/03 CEM520 CE-Conformity Declaration_20190918 VA1.0
2021/12/08 UKCA Declaration of Conformity
