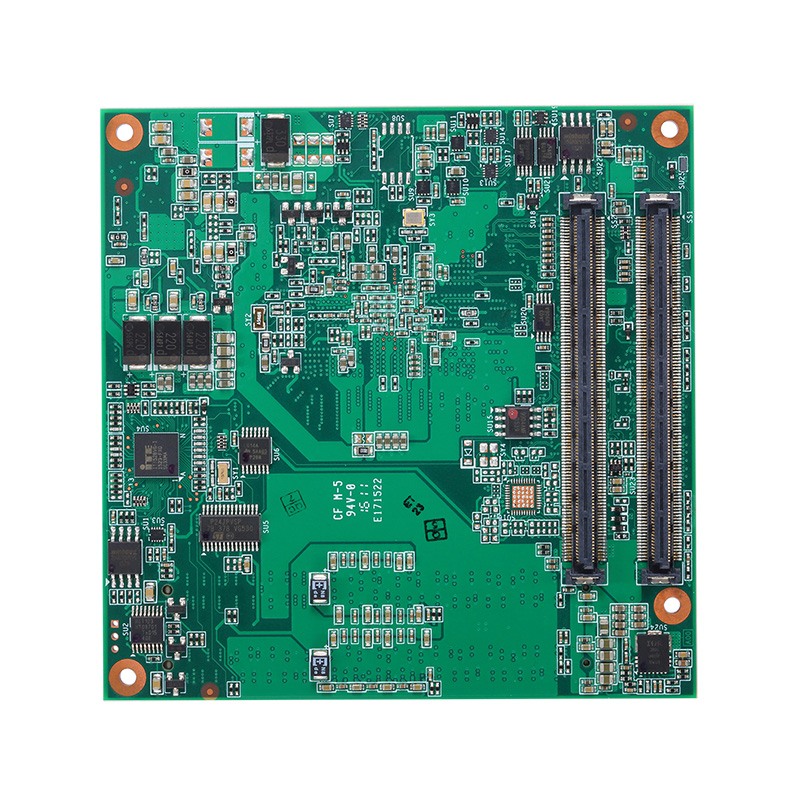

CEM312

Status : Available

COM Express Type 6 Compact Module with Intel® Atom® x5 and x7 Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM312
CEM312
Dual-View

Dual-View

Low Power

Low Power

Solid CAP

Solid CAP

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® x5 and x7 processors (Apollo Lake)
  • 2 DDR3L-1600 SO-DIMM for up to 8GB of memory
  • Max. up to 4 lanes of PCI Express
  • 2 SATA-600
  • 4 USB 3.0 and 8 USB 2.0
  • AXView 2.0 intelligent remote management software
  • TPM 1.2 supported (optional)

Specifications

CPU
  • Intel® Atom® x7-E3950 (2.0 GHz)
  • Intel® Atom® x5-E3940 (1.8 GHz)
  • Intel® Atom® x5-E3930 (1.8 GHz)
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
Serial
  • 2 x TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • 2 x DDI (DP, HDMI, DVI); VGA optional
  • 1 x LVDS (eDP option)
GPIO
  • 4-CH in & 4-CH out
Audio
  • HD link interface to baseboard for Codec
Storage
  • 2 x SATA-600
  • eMMC 5.0 64GB (optional)
Expansion
  • 4 x PCIe (3 lanes while internal LAN is connected)
Others
  • 1 x LPC
  • 1 x SPI
  • TPM 1.2 (optional)
Battery
  • N/A
Power Input
  • ATX: 12V, +5VSB
  • AT: 12V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM312PG-E3950 (P/N-E38D312100)
    COM Express Type 6 Compact module with Intel® Atom® x7-E3950, DDI, LVDS, USB 3.0 and GbE LAN
  • CEM312PG-E3940 (P/N-E38D312101)
    COM Express Type 6 Compact module with Intel® Atom® x5-E3940, DDI, LVDS, USB 3.0 and GbE LAN
  • CEM312PG-E3930 (P/N-E38D312103)
    COM Express Type 6 Compact module with Intel® Atom® x5-E3930, DDI, LVDS, USB 3.0 and GbE LAN
  • CEB94011 (P/N-E394011100)
    COM Express Type 6 evaluation board
  • 7128D312000E
    CEM312 heatspreader
  • 7118D312000E
    CEM312 heatshink
