CEB94000

Status : Available

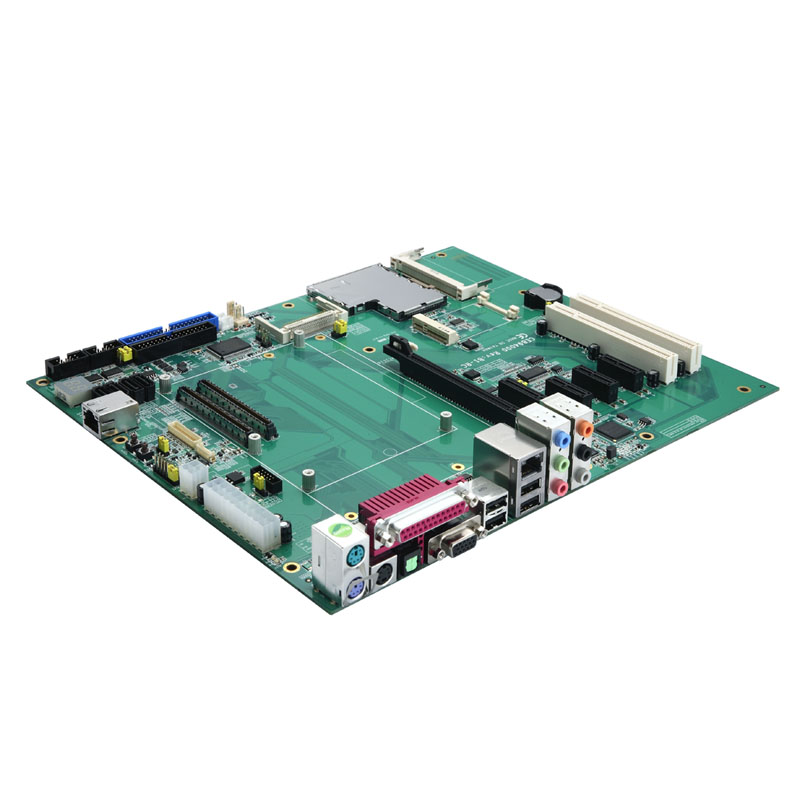

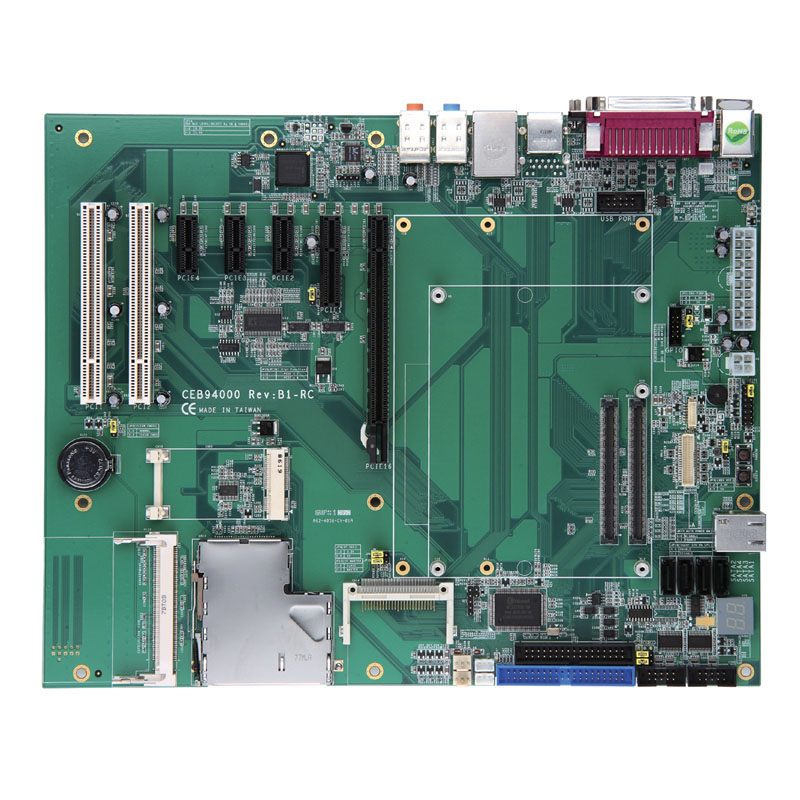

COM Express™ Type 2 Development Baseboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEB94000
CEB94000
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Standard ATX form factor for development purpose
  • 1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots
  • 1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI

Specifications

CPU
  • COM Express™ type 2 basic or extended module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module; optional socket on the baseboard
Serial
  • 1 x RS-232 (COM 2)
  • 1 x RS-232 (COM 1)
USB
  • 6 x USB 2.0
Ethernet
  • 1 x 10/100/1000Mbps
Display
  • 1 x S-Video (depending on CPU module)
  • 1 x LVDS LCD interface
  • 1 x CRT D-Sub connector
GPIO
  • N/A
Audio
  • Line-in/line-out/MIC-in and SPIF
Storage
  • 4 x SATA
Expansion
  • 1 x PCIe x16 for graphics and SDVO ADD2+ card
  • 1 x PCIe x4 or 3 x PCIe x1
  • 2 x 32-bit/33MHz PCI
  • 1 x ExpressCard
  • 1 x PCI Express Mini Card
  • 1 x MiniPCI type-III
Others
  • 1 x IDE; PATA-100
  • 1 x FDD
  • 1 x PS/2 keyboard & mouse
  • 1 x LPT; with SPP/EPP/ECP supported
  • 1 x IrDA
  • 1 x SMBus
  • Port 80 display
Battery
  • Lithium 3V/196 mAH
Power Input
  • TBD
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0° ~ +60°C (32°F ~ 140°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • CEB94000VEA (P/N- E394000100)
    COM Express™ baseboard with ExpressCard, PCI Express Mini Card, MiniPCI, 1 x RJ-45 and multiple I/O features
  • CEM850VG
    COM Express™ baseboard with socket P and 10/100/1000Mbps
  • CEM830VG
    COM Express™ SoM with socket M and 10/100/1000Mbps
  • CEM820VG
    COM Express™ SoM with socket 478 and 10/100/1000Mbps
  • CEM831VG
    COM Express™ SoM with Intel Atom processor N270 and 10/100/1000Mbps
  • PK95300
    LVDS-to-TTL 18-bit LCD converter for Hirose DF9-31P-1V
  • PK95301
    LVDS-to-TTL 18-bit LCD converter for Hirose DF9-41P-1V
  • AX93221
    LVDS-to-DVI converter
  • AX93218L
    ADD2+ card for LVDS LCD
  • AX93218D
    ADD2+ card for DVI-D

Download

Drivers

Date Description Version Download File
2017/05/22 Audio driver VA1.3
2017/05/22 LAN driver VA1.3

Software

Manual

Date Description Version Download File
2018/11/14 Quick Manual VA3
2017/05/22 User's manual VA1.3

Design Guide

Date Description Version Download File
2023/03/14 COM-Express-Technical-Manual_Design-Guide_V3 v3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
