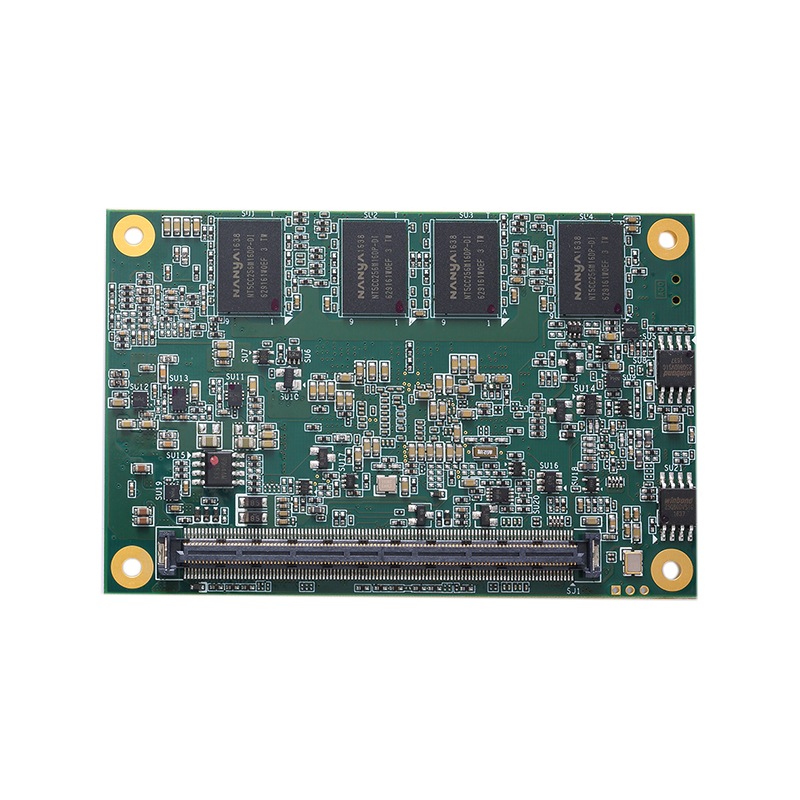

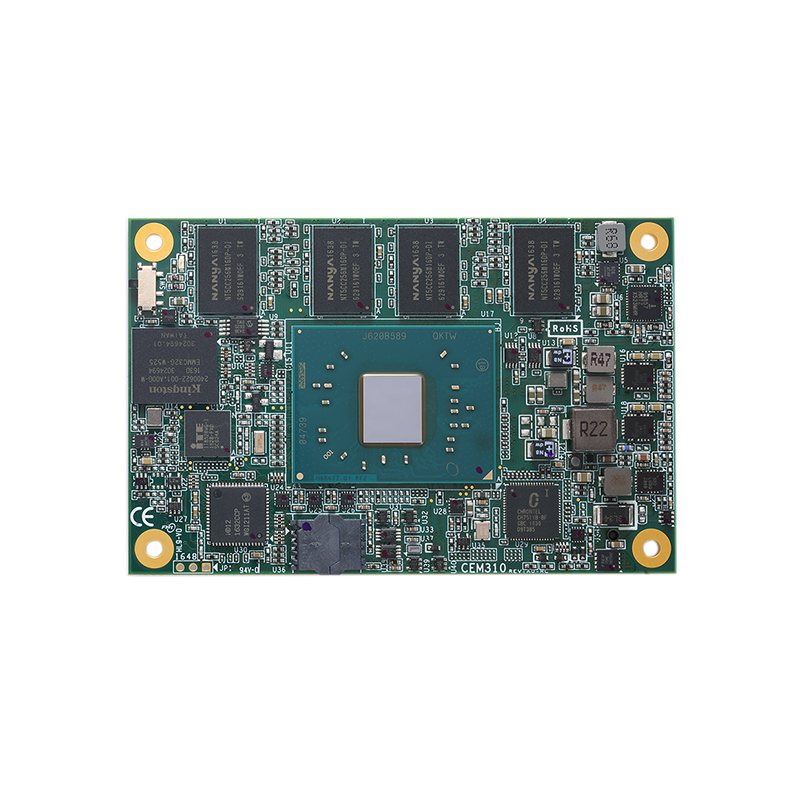

CEM311

Status : Available

COM Express Type 10 Mini Module with Intel® Pentium® Processor N4200 & Celeron® Processor N3350

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM311
CEM311
Dual-View

Dual-View

Low Power

Low Power

Solid CAP

Solid CAP

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
  • Onboard 4GB DDR3L memory
  • Max. up to 4 lanes of PCI Express
  • 2 SATA-600
  • 2 USB 3.0 and 8 USB 2.0

Specifications

CPU
  • Intel® Pentium® processor N4200 & Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • Onboard 4GB DDR3L memory
BIOS
  • AMI
Serial
  • 2 x Serial TX/RX
USB
  • 2 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x DDI (DP, HDMI, DVI)
  • 1 x LVDS (eDP optional)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • eMMC 5.0 upt o 64GB (optional)
  • 2 x SATA-600
Expansion
  • 4 x PCIe x1 devices (3 x1 while internal LAN is connected)
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C
Battery
  • N/A
Power Input
  • ATX: +12V,+5VSB
  • AT: +12V
  • Wide range input: +4.75V to +20V
Watchdog Timer
  • 65536 levels, 0 - 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20ºC to +70ºC (-4ºF to +158ºF)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 84 x 55 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM311PG-N4200 (P/N-E38D311103)
    COM Express Type 10 compact module with Intel® Pentium® N4200, DDI/LVDS, USB 3.0 and GbE LAN
  • CEM311PG-N3350 (P/N-E38D311100)
    COM Express Type 10 compact module with Intel® Celeron® N3350, DDI/LVDS, USB 3.0 and GbE LAN
  • CEM311-G3C-P1G (P/N-E38D311107)
    COM Express Type 10 compact module with Intel® Pentium® N4200, DDI/LVDS, USB 3.0, GbE LAN, LPDDR4 8GB, and eMMC 64GB
  • CEM311-H2B-P1G (P/N-E38D311108)
    COM Express Type 10 compact module with Intel® Pentium® N3350, DDI/LVDS, USB 3.0, GbE LAN, LPDDR4 4GB, and eMMC 32GB
  • 7128D311000E
    CEM311 heat spreader
  • E39J011100
    CEM311 heat sink without fan
