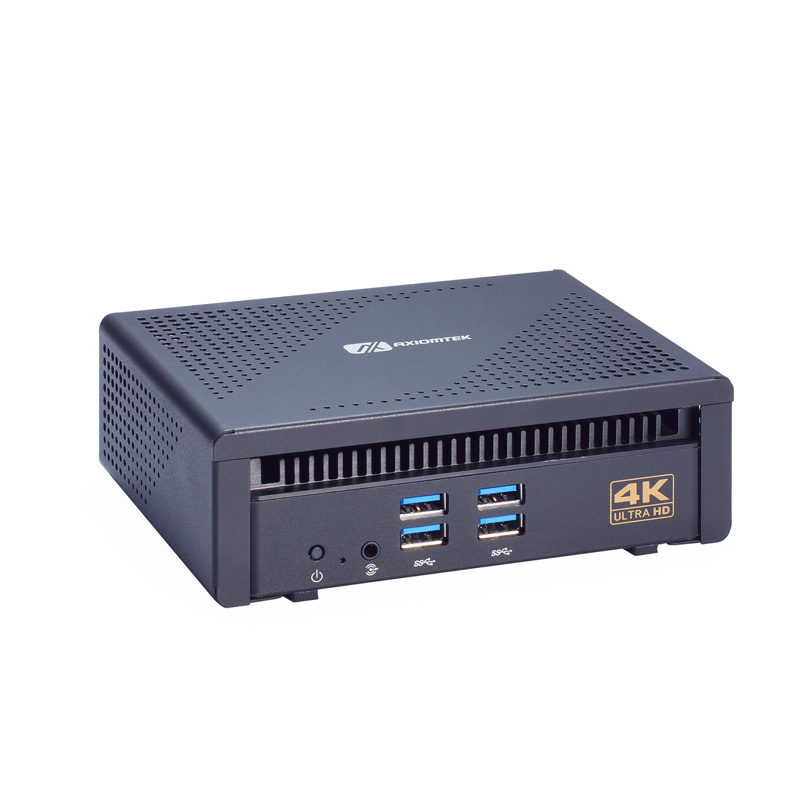

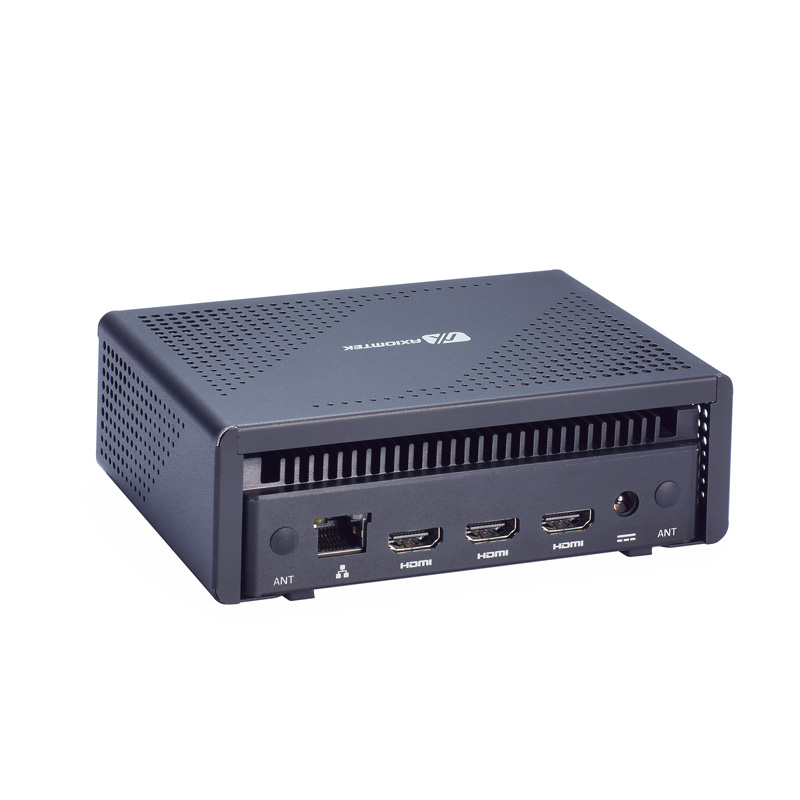

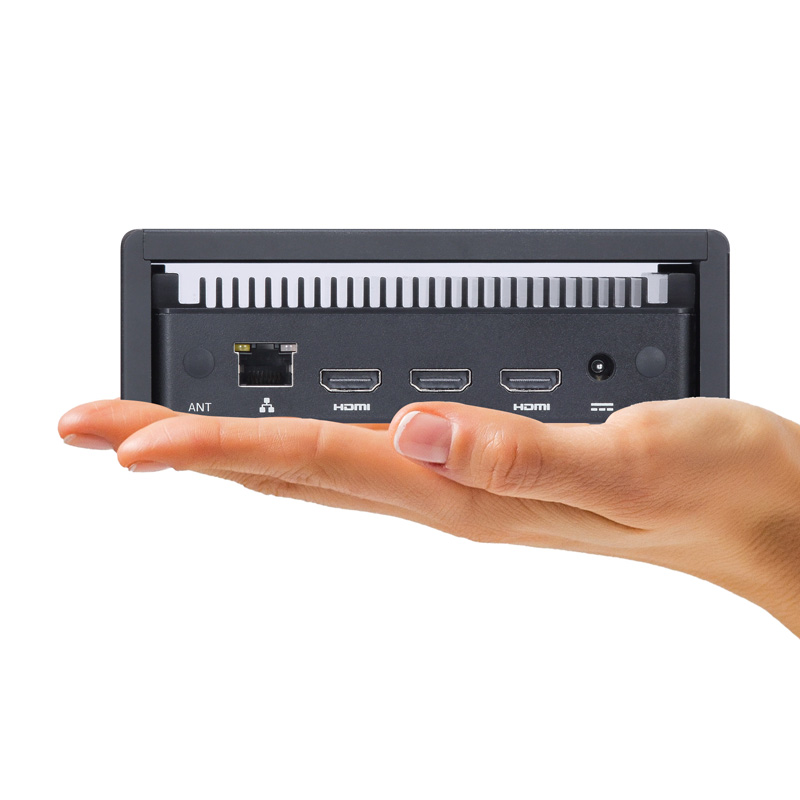

DSP302

Status : Available

Fanless Digital Signage Player with Intel® Celeron® Processor N6210/J6413, 3 HDMI, 4 USB, and 1 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
DSP302
DSP302
DSP302
Axiomtek EAPI

Axiomtek EAPI

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Celeron® processor N6210/J6413
  • 4GB LPDDR4 memory onboard (8GB optional)
  • 3 HDMI 2.0 in support of 4K resolution
  • 4 USB 3.2 Gen 2 and 1 GbE LAN
  • 1 full-size PCI Express Mini Card slot for WiFi/BT/3G/4G
  • 1 M.2 Key M 2242 slot for SATA/PCIe

Specifications

CPU
  • Intel® Celeron® processor N6210/J6413
Chipset
  • SoC integrated
System Memory
  • LPDDR4 4GB memory onboard (8GB optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec./min.
COM
  • N/A
USB
  • 4 x USB 3.2 Gen 2
Ethernet
  • 1 x GbE LAN
Display
  • 3 x HDMI 2.0 (CPU: J6413)
  • 2 x HDMI 2.0 (CPU: N6210)
Audio
  • 1 x Audio jack (combo)
Storage
  • 1 x 64GB eMMC onboard (128G optional)
  • 1 x M.2 Key M 2242 slot (SATA/PCIe x2 signal)
Expansion
  • 1 x Full-size PCI Express Mini Card slot for WiFi/BT/3G/4G (PCIe x1, USB 2.0 signal)
  • 1 x M.2 Key M slot (SATA/PCIe x2 signal)
  • 1 x SIM card slot
Others
  • 1 x Power switch
  • 2 x Antenna opening
TPM
  • Support Intel® PTT
Power Supply
  • +12V DC-in
Vibration Endurance
  • N/A
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions<br>(W x D x H)
  • 106.2 x 149 x 48.4 mm (4.19'' x 5.87'' x 1.91'')
Weight (net/gross)
  • 0.90 kg (1.98 lb)/1.57 kg (3.47 lb)
Mounting
  • Wall mount
EOS Support
  • Win10 IoT/Win11/Linux
Software Support
  • N/A
Certifications
  • CE, FCC class A

Ordering Information

  • DSP302-N6210-2HDMI4G64G (P/N-E22K302100)
    Fanless 4K digital signage player with Intel® Celeron® processor N6210, 2 HDMI, 4 USB, 1 GbE LAN, 4GB LPDDR4, and 64GB eMMC
  • DSP302-J6413-3HDMI4G64G (P/N-E22K302101)
    Fanless 4K digital signage player with Intel® Celeron® processor J6413, 3 HDMI, 4 USB, 1 GbE LAN, 4GB LPDDR4, and 64GB eMMC
  • DSP302-J6413-3HDMI8G128G (P/N-E22K302102)
    Fanless 4K digital signage player with Intel® Celeron® processor J6413, 3 HDMI, 4 USB, 1 GbE LAN, 8GB LPDDR4, and 128GB eMMC
  • 8812K3020A0E
    DSP302 wall mount kit (E)
  • 599000000900
    US power code
  • 59903000080E
    EU power code

Download

Drivers

Date Description Version Download File
2023/04/07 LAN VA1.0
2023/04/07 CSE VA1.0
2023/04/07 RtkUWP VA1.0
2023/04/07 Audio VA1.0
2023/04/07 Graphics VA1.0
2023/04/07 Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/06/17 user's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/09/15 UKCA Declaration of Conformity
2023/08/31 CE LVD Verification
2023/08/31 FCC Verification
2023/08/31 CE-Conformity Declaration
2023/08/31 CE EMC Verification
