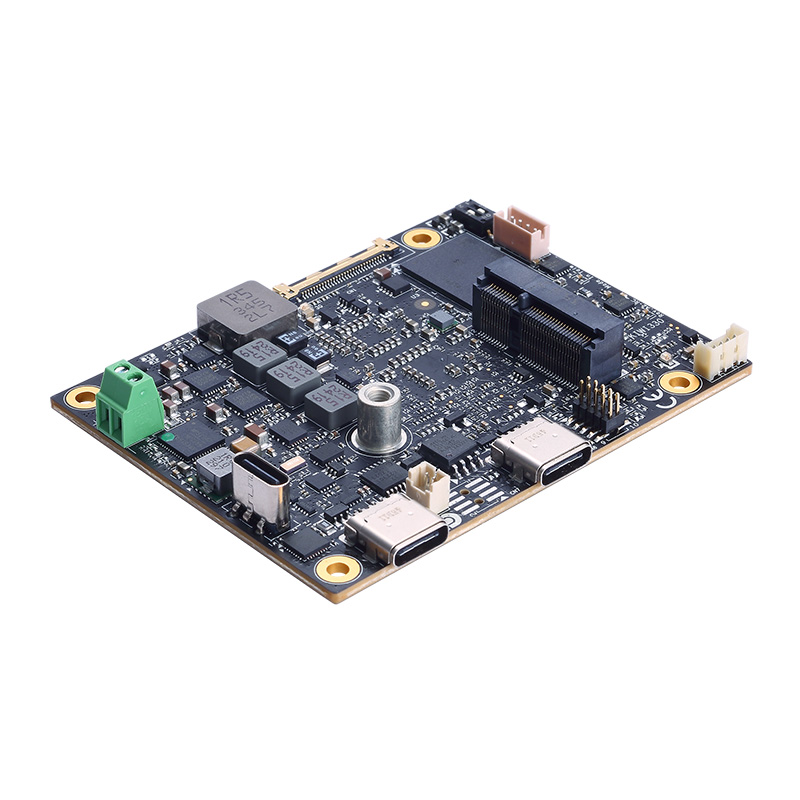

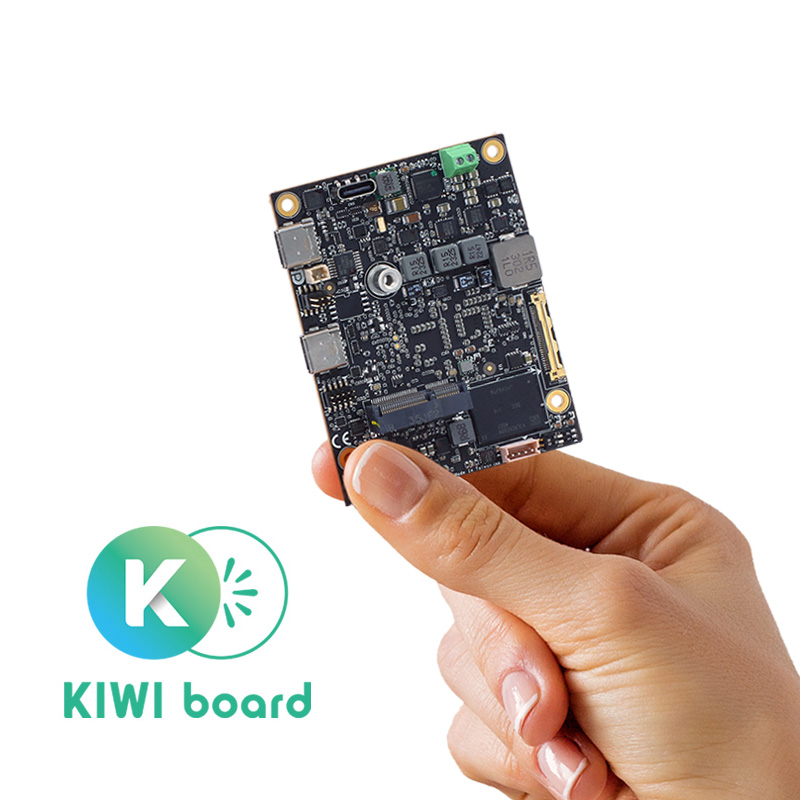

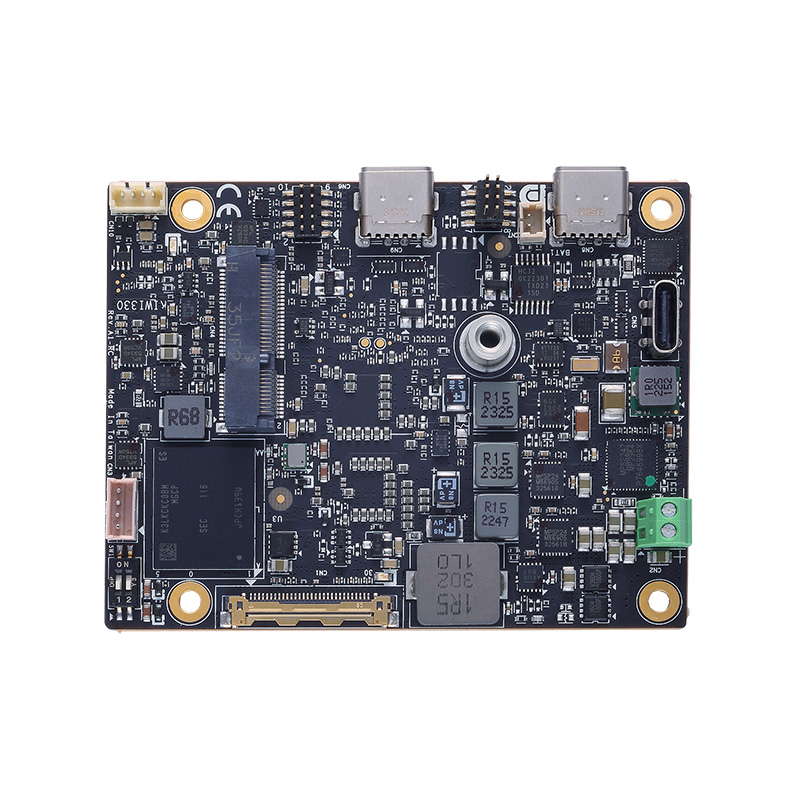

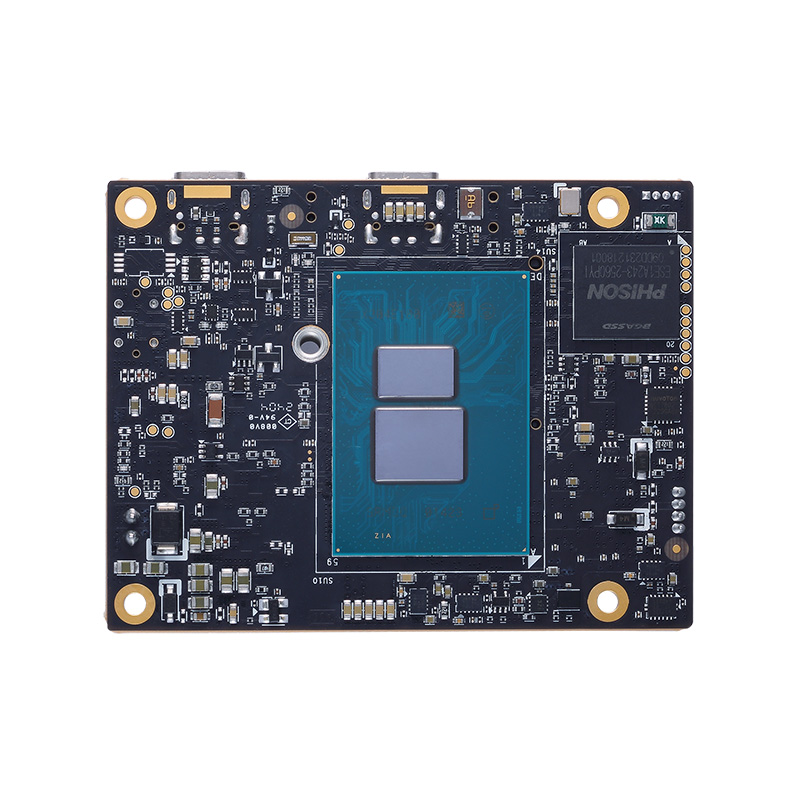

KIWI330

1.6" SBC with Intel® Alder Lake-N Processor, LPDDR5, eDP, M.2 Key E, 2 USB 3.2 (Type-C), and USB 3.2 (Vertical Type-C)

Status：Available

Features

Super tiny 1.6-inch embedded board
Intel® Alder Lake-N processor onboard
Onboard 4GB LPDDR5 memory
Onboard 64GB NVMe SSD storage
Supports M.2 Key E socket
Supports eDP for display
Supports operating system: Linux, Windows®

CPU	Intel® Alder Lake-N processor
Chipset	SoC integrated
System Memory	On-board 4GB LPDDR5
BIOS	AMI
COM	N/A
USB	Horizontal: 1 x USB 3.2 Type-C (2 x USB 3.2 + 2 x USB 2.0 + 5V/3A + DisplayPort) 1 x USB 3.2 Type-C (2 x USB 3.2 + 2 x USB 2.0 + 5V/3A) Vertical: 1 x USB 3.2 Type-C (2 x USB 3.2 + 2 x USB 2.0 + 5V/3A) Internal: 1 x USB 2.0 header (1 x 4-pin wafer)
Ethernet	N/A
Display	1 x eDP
Audio	N/A
Storage	BGA 64GB NVMe
Expansion	1 x M.2 Key E 2230 (USB 2.0, PCIe)
Others	N/A
Battery	Lithium 3V/225 mAh
Power Input	2-pin Phoenix type
Power Requirements	12 VDC/5A
Watchdog Timer	255 levels, 1 to 255 sec
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	72 mm × 56 mm
Board Thickness	1.6 mm
Operating System	Linux, Windows®
Certifications	CE
Industrial Chassis	N/A

KIWI330-N50-S (P/N-E3D0330100)
Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD
KIWI330-N50-M5 (P/N-E3D0330103)
Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD with MIO335

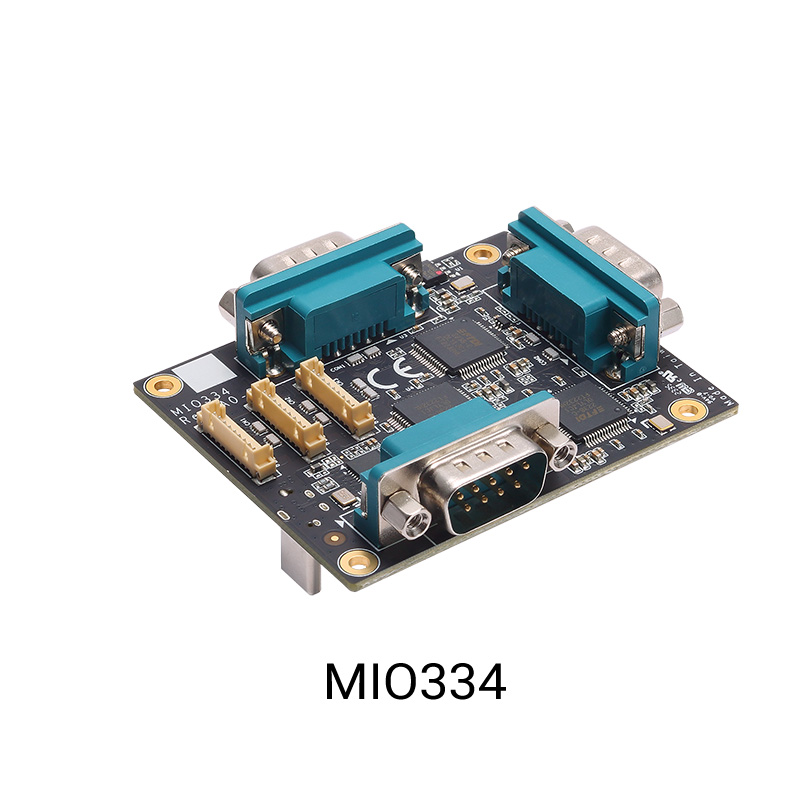

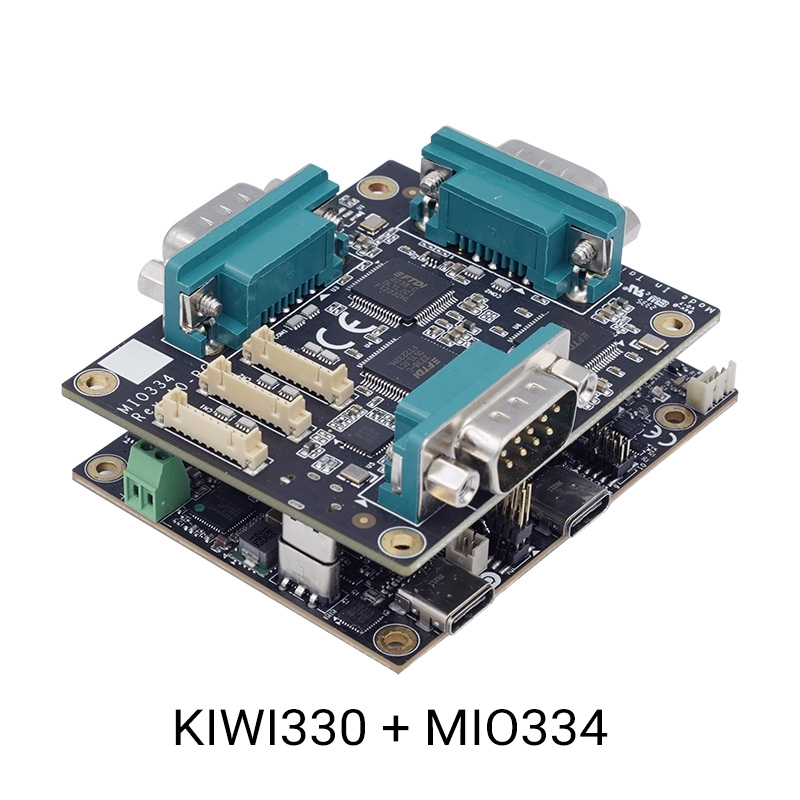

MIO334-6COM-S (P/N-E39Q334101)
6-port COM module, 3 DB9 RS-232, and 3 header RS-232

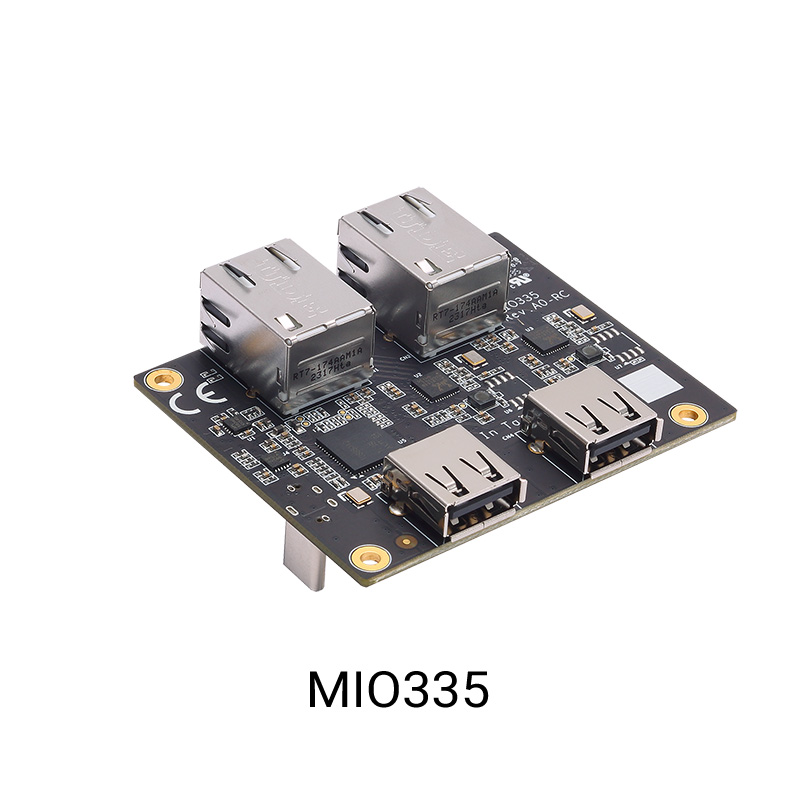

MIO335-2LAN-S (P/N-E39Q335101)
Dual GbE LAN module, 2 RJ-45 GbE LAN, and 2 USB 2.0 Type-A
USB cable (P/N-594P8802810E)
USB‑to‑1.25_4‑pin housing, L = 150 mm
COM cable (P/N-59380880250E)
COM‑port cable, DB9 - 9 × 1 P, L = 250 mm, P = 1.25
Adapter (P/N-50966124050E)
Adapter 12V 60W FSP060-DHAN3 with screw
