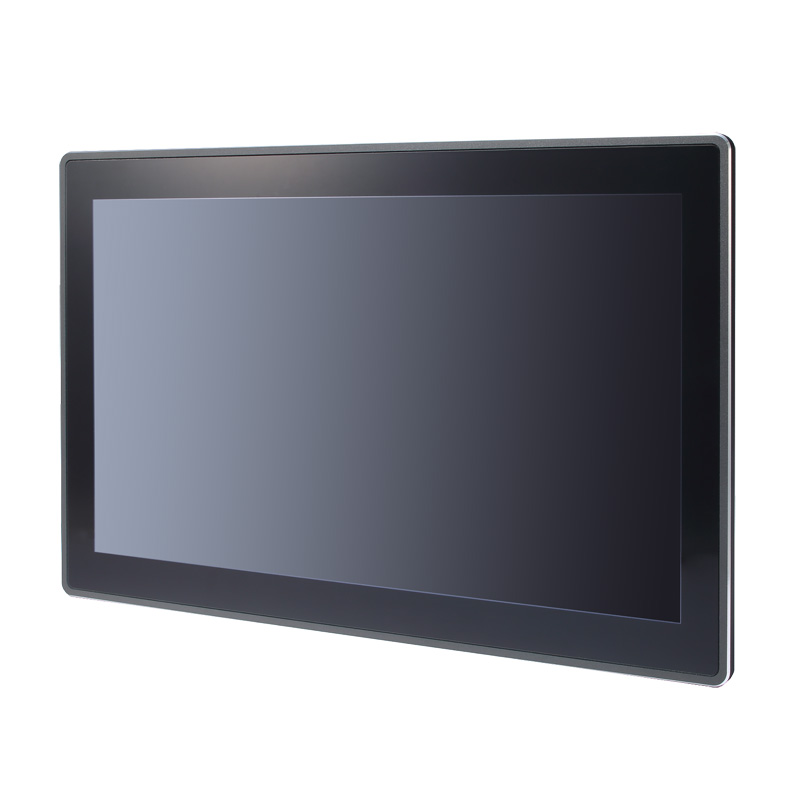

| LCD Panel |
- 23.8" FHD TFT LCD
- 250 nits
- 16:9 ratio
- 1920 x 1080 pixels
|
| SDM Module |
- Intel® SDM Small (SDM-S, 60 x 100 mm)
- Intel® SDM Large (SDM-L, 175 x 100 mm)
|
| CPU |
- SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
- SDM500L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
|
| Chipset |
|
| System Memory |
- SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
- SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
|

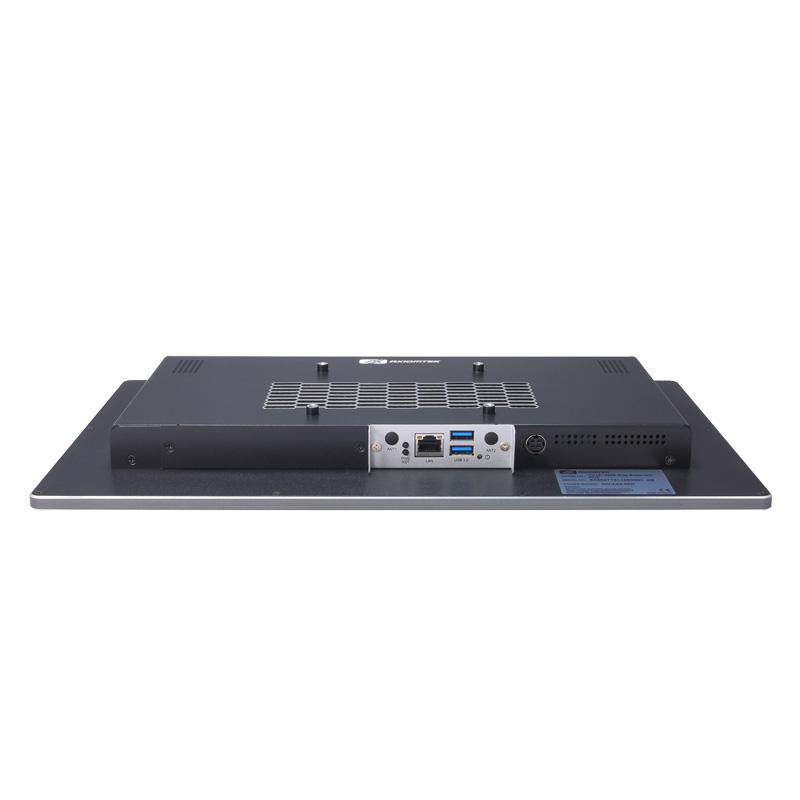

| SDM-S I/O |
- 1 x GbE LAN
- 2 x USB 3.0 Type A
- 2 x SMA antenna reserved hole
|
| SDM-L I/O |
- 1 x Power button with LED
- 1 x GbE LAN
- 4 x USB 3.0 Type A
- 1 x Audio output
- 1 x Microphone input
- 2 x SMA antenna reserved hole
|
| I/O |
|
| Touchscreen |
- Projected capacitive multi-touch
|
| Front Bezel |
|
| Expansion |
- SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
- SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
|
| Storage |
- SDM300S: eMMC 64GB onboard
- SDM500L: 1 x M.2 Key B 2242 slot, 1 x M.2 Key M 2280 slot
|
| Others |
- 2 x S.P.L. 88dB, 1.5W, 4 ohm
|
| Power Supply |
- 24V AC to DC power adapter
|
| Power Consumption |
|
| Dimensions |
- 580.3 x 47.5 x 354.7 mm (22.8" x 1.9" x 14")
|
| Weight (net/gross) |
|
| Operating Temperature |
- 0°C to +40°C (+32°F to +104°F)
|
| Operating Humidity |
- 20% - 90%, non-condensing
|
| Certi cations |
|
