- LGA1200 Intel® Xeon® or 10th gen Core™ i7/i5/i3 processor, up to 80W
- Intel® W480E chipset
- Offers up to 800W power for accelerator cards
- Supports M.2 Key B slot for 5G wireless connection
- Supports M.2 Key E slot for Wi-Fi connection
- Supports RAID 0, 1
- Supports power-on delay function
- Supports TPM 2.0

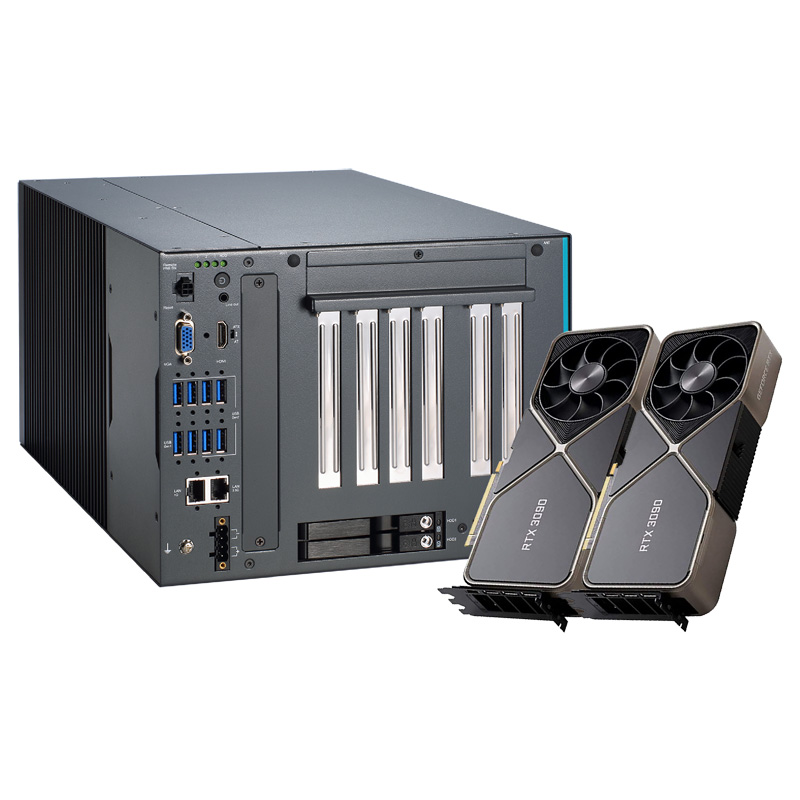

Accelerate 5G, AI, Vision at the Edge
The IPC972 is designed to support dual NVIDIA® GeForce RTX 3090 GPU cards to accelerate tremendous graphics performance for growing AI applications at the edge.

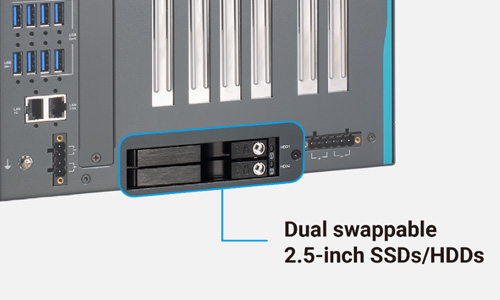

Ready for Extensive Storage Needs
This edge AI computer IPC972 is equipped with two swappable 2.5-inch SSDs/HDDs, an optional internal 2.5-inch SSD/HDD with the support of Intel® RAID 0,1 and one M.2 Key M 2280 socket for NVMe SDD.
Edge Computer with Dual GPU Expansion for AI Accelerated Processing
The IPC972 supports the Intel® Xeon® or 10th gen Intel® CoreTM i7/i5/i3 processor (code name: Comet Lake S) with the Intel® W480E chipset. With the ability to support two NVIDIA® GeForce RTX 3090 GPU cards, the IPC972 enables to facilitate image processing, real-time control, data analysis, deep learning, AOI, data acquisition, and more automation tasks.
The IPC972 supports the Intel® Xeon® or 10th gen Intel® CoreTM i7/i5/i3 processor (code name: Comet Lake S) with the Intel® W480E chipset. It has four DDR4-2933 ECC/non-ECC U-DIMM sockets with a maximum of 128GB system memory.

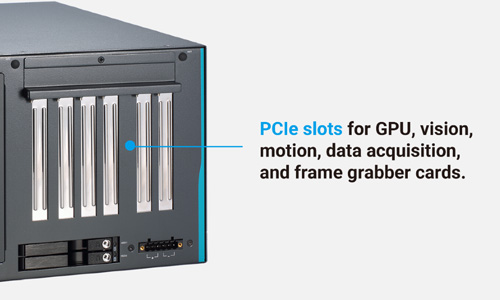

Flexible Expansion Options
The IPC972 has one I/O module slot and four PCIe slots for options. It also has one M.2 Key B 3042/3050 slot with SIM slot for 5G wireless connection, one M.2 Key E 2234 slot for Wi-Fi/Bluetooth modules and one full-size PCIe Mini Card slot with SIM slot for Wi-Fi/Bluetooth/LTE modules
For stable operation in mission-critical environments, the IPC972 has a wide operating temperature range of -10°C to +60°C and a power input of 24V DC with power-on delay function, over-voltage protection, over current protection, and reverse voltage protection.

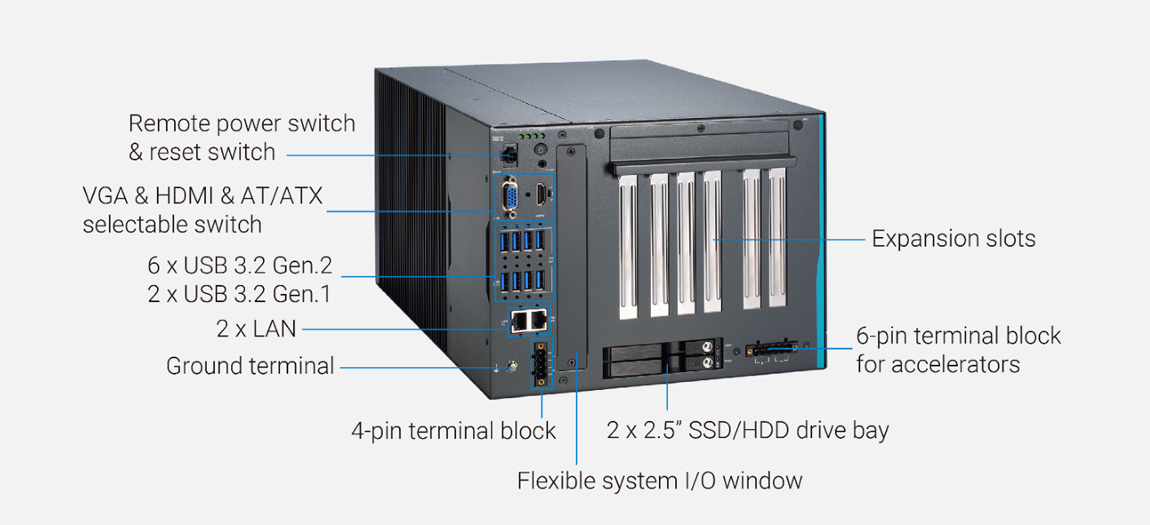

Front-Facing I/O Interfaces
The IPC972 supports rich I/O options including one 2.5GbE LAN port, one GbE LAN port, eight USB 3.2 ports, one internal USB 2.0 port, one VGA, one HDMI, one 4-pin terminal block, one audio (line-out), and one AT/ATX selectable switch.
