Features
- Intel® Open Pluggable Specification (OPS compliance)
- LGA1200 Socket 11th/10th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor (Rocket Lake)
- 2 DDR4-2933 SO-DIMM for up to 64GB of memory
- 1 M.2 Key M 2280 for NVMe storage
- 1 M.2 Key E 2230 for Wi-Fi/BT solution
- Supports USB 3.2 Gen2
- Supports Intel vPro® platform (Intel® Q570 only)
- Supports TPM 2.0
- Easy installation and maintenance
Introduction

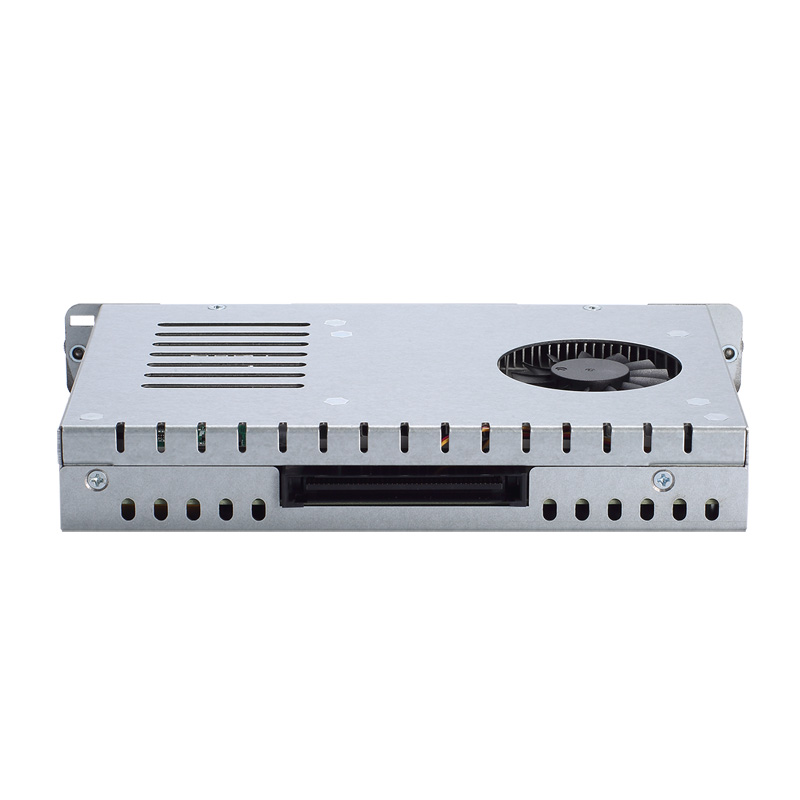

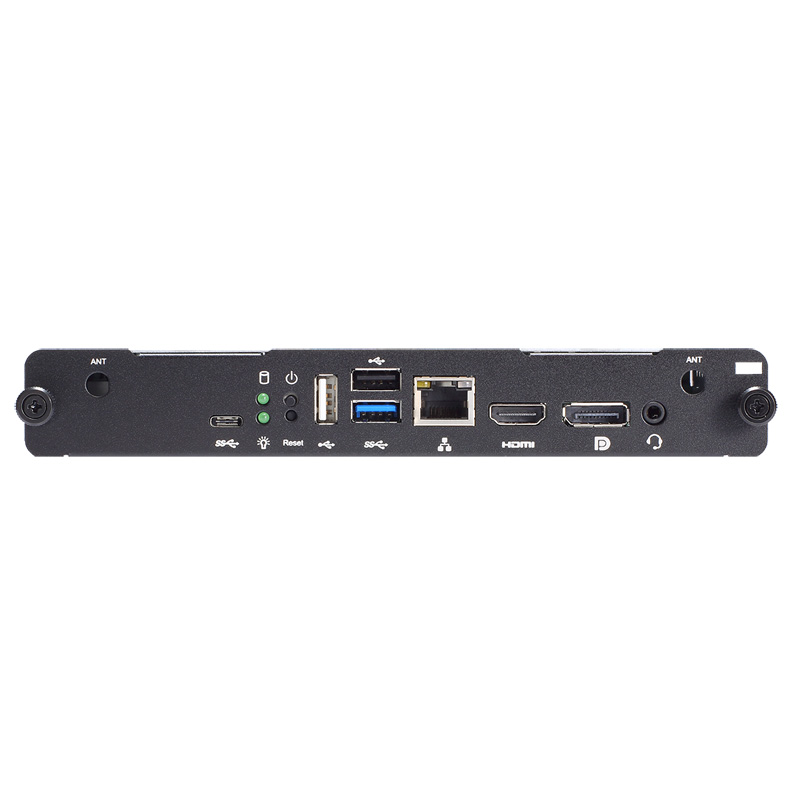

The OPS520 is powered by the latest 11th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors with the Intel® Q570/H510 chipset. Its ultra-quiet fan design makes the OPS520 excellent for interactive whiteboard applications used in meeting rooms and classrooms. The advanced OPS520 has two DDR4-2933 SO-DIMMs for up to 64GB of system memory. For great connectivity, it offers one USB 3.2 Gen2 (for Q570) or one USB 3.2 Gen1 (for H510), one USB Type C, two USB 2.0, one Gigabit LAN with Intel® i219-LM Ethernet controller, one DisplayPort 1.4, one HDMI 2.0 with 4K ultra HD, one audio jack and two antenna openings. The OPS520 signage module can be easily connected to an OPS compliant display through a standardized JAE TX-25A plug connector - which supports DisplayPort, HDMI 2.0, USB 2.0, USB 3.0, audio (Line-out) and UART signals. It also comes with one M.2 Key M 2280 supporting NVMe interface for storage and one M.2 Key E 2230 slot for Wi-Fi and Bluetooth. This smart digital signage player also comes with Trusted Platform Module (TPM) 2.0 that can provide security and privacy benefits.
