Features
- RISC-based (i.MX 6UltraLite) processor 528 MHz
- 256MB DDR3L SDRAM onboard
- 4GB eMMC Flash onboard
- 2 PCI Express Mini Card slots (Wi-Fi or 3G/4G)

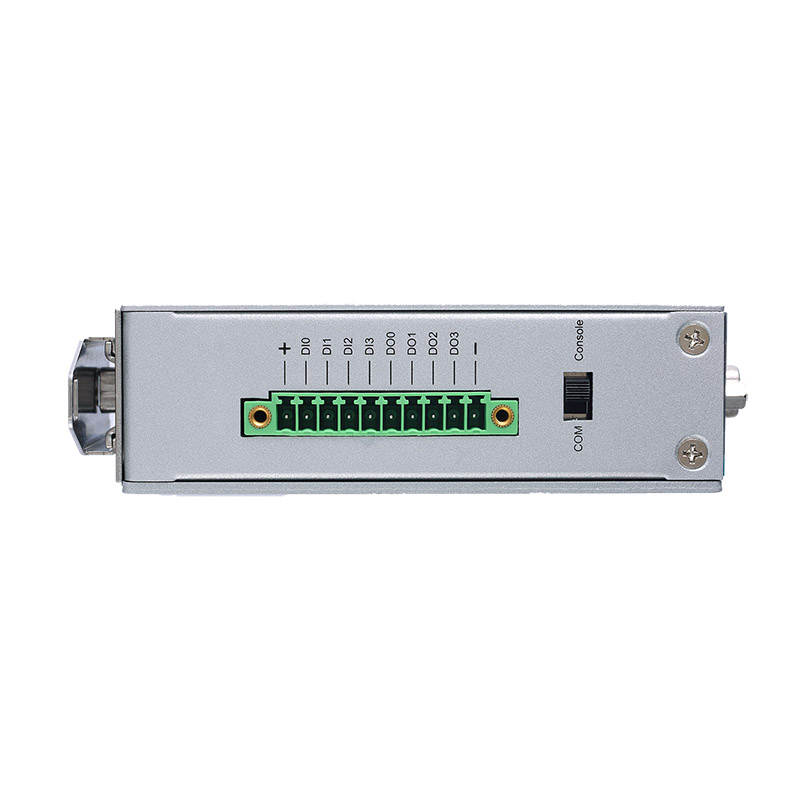

- 4 digital inputs and 4 digital outputs
- Power input range of 9 to 48 VDC with terminal block
- Embedded Linux (Yocto) operating system
- Fanless and compact design
- Wide operating temperature range from -40°C to +70°C
Introduction

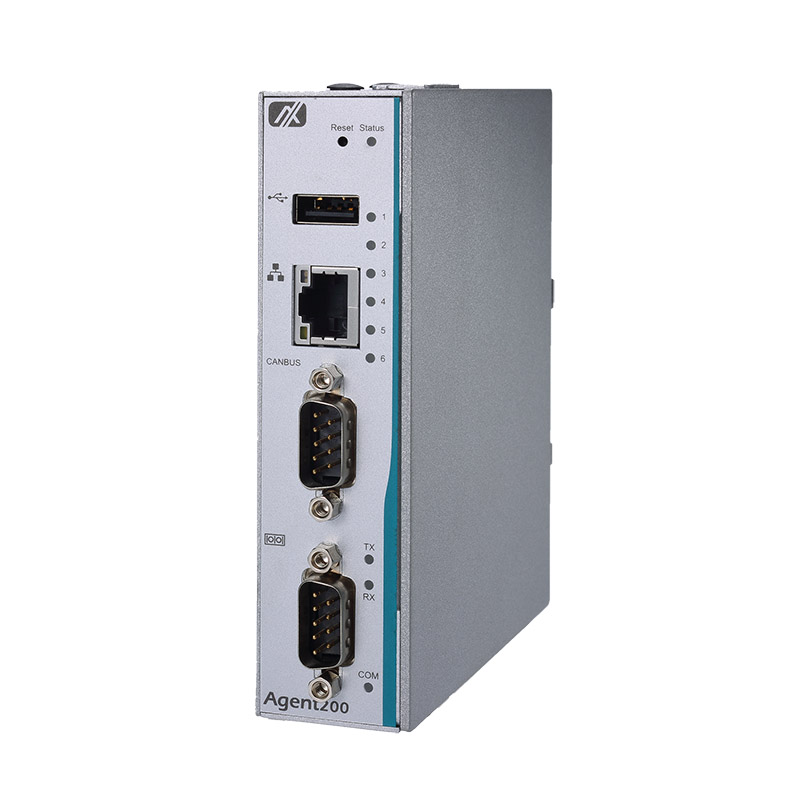

The Agent200-FL-DC is powered by the NXP i.MX 6UL processor with the ARM® Cortex™-A7 microarchitecture. Designed to meet the challenges of harsh operating environments, it supports an extended operating temperature range of -40°C to 70°C, a flexible wide voltage range of 9V to 48V DC power input, and can withstand high vibration environments up to 2G. The Agent200-FL-DC offers operational reliability, rugged design, rich features and easy maintenance. Two PCI Express Mini Card slots, one SIM card slot and two internal antennas are available for Wi-Fi, 3G/4G and GPS connections. With the ability to transmit data and manage various devices, the versatile gateway is optimized for remote control and monitoring management applications such as unmanned control rooms, industrial machines, automatic parking lots, traffic monitoring systems, etc.
