- Intel® Pentium® N4200/Celeron® N3350 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 4 USB 3.0
- 2 HDMI and 1 eDP
- 1 PCI Express Mini Card slot

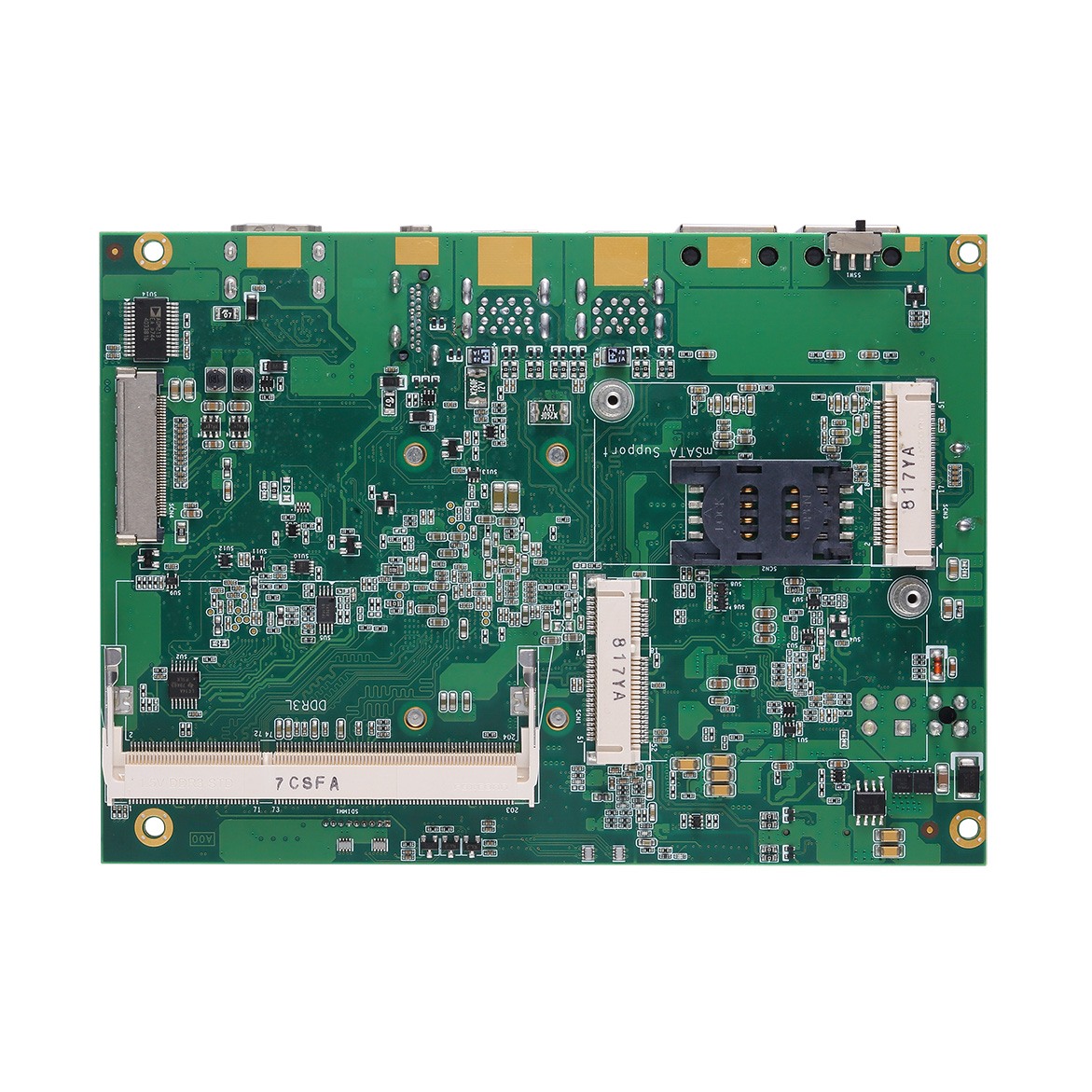

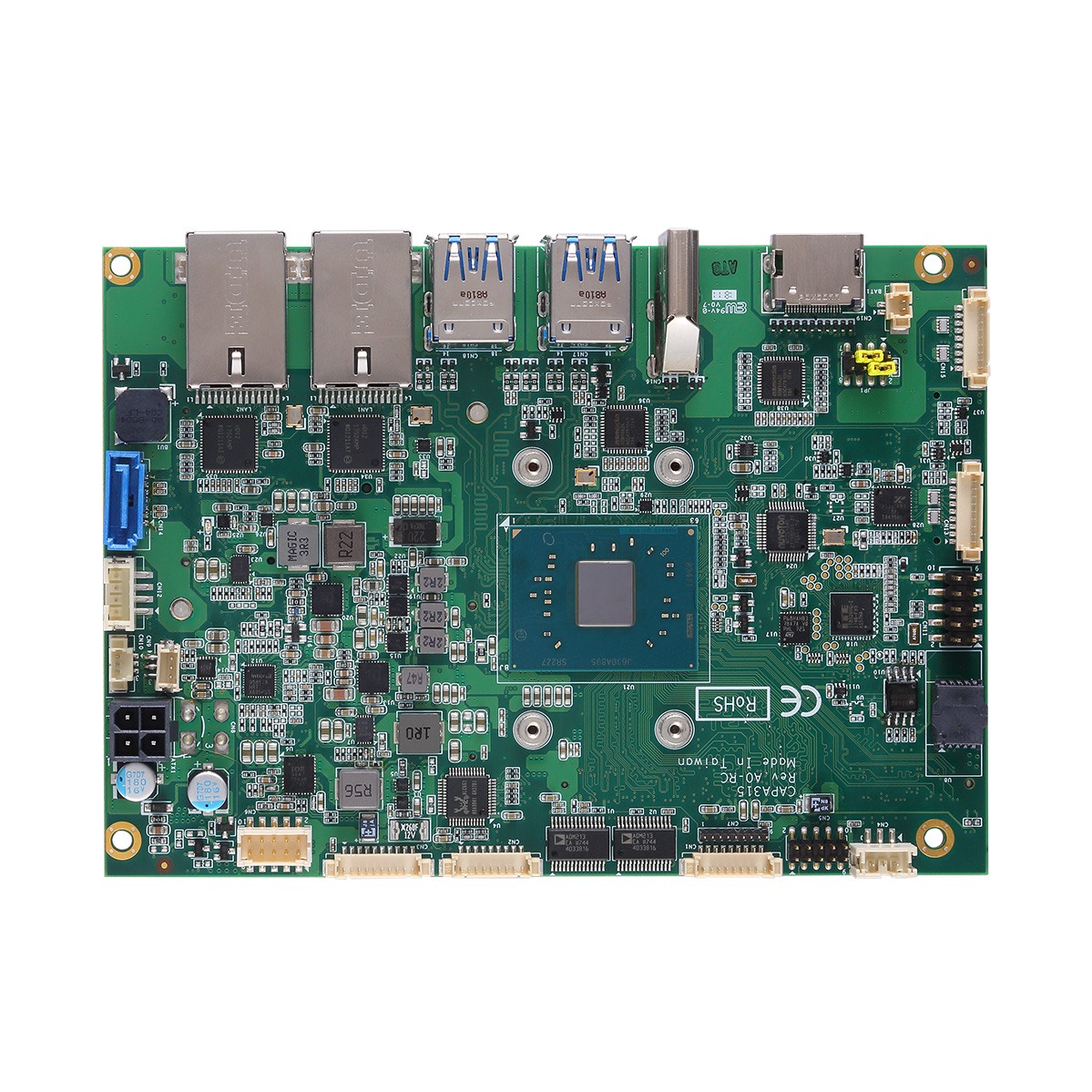

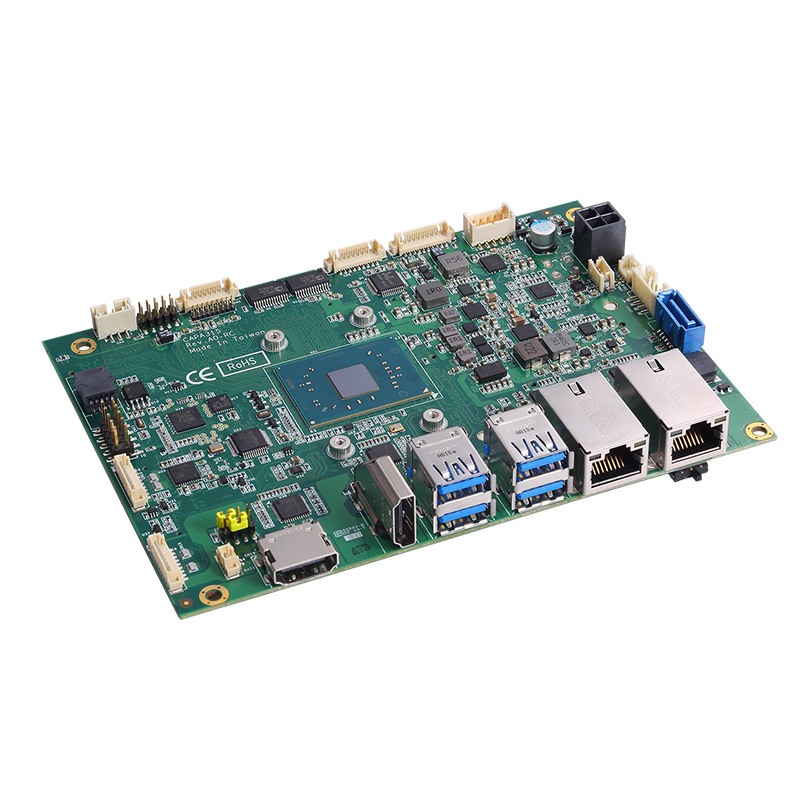

The CAPA315 is powered by the Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake). It comes with various I/O connectors and flexible expansion features within its 146 x 104 mm dimensions. The CAPA315 also has an extended operating temperature range of -20°C to 70°C to withstand the rigors of day-to-day operation. The 3.5-inch CAPA315 has one 204-pin DDR3L-1867 SO-DIMM for up to 8GB system memory. Furthermore, it comes with one RS-232/422/485, three RS-232, two USB 2.0, four USB 3.0, 8-channel digital I/O, HD Codec audio and dual Gigabit LANs with Intel® i211AT Ethernet controller. For storage requirements, it has one SATA-600 and one mSATA. Moreover, the low power embedded platform runs on +12VDC power, supporting auto power-on. For connectivity, this embedded board has a PCI Express Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections. To ensure reliable operation across platforms, the 3.5-in embedded board also supports watchdog timer, hardware monitoring functions and Trusted Platform Module 1.2 (TPM 1.2).
