Introduction

Industrial automation controllers in factory applications require solutions with high computing performance, low power consumption, rich I/O for connectivity and wide bandwidth for data acquisition. The solutions with competitive price, compact size for easy installation, long sustained product life are also essential. Ideal for such ruggedized applications, Axiomtek's embedded system, the eBOX series, is well-known for tough and compact mechanism design, no moving parts support, rich I/O interface, embedded OS support, expansion-rich capability, and both old and lately x86 architecture support.

Our Solution

Axiomtek's eBOX832-840 supports Intel® GME965 Express chipset and socket P Intel® Core™2 Duo processor, the most powerful mobile processor. One PCI Express x16 expansion slot can be backward compatible with PCI Express x1, x4 and x8. Besides,the built-in dual Gigabit Ethernet ports transfer great quantity data for data analysis during production. Therefore, this powerful, rugged platform offers a high performance solution for high speed vision, motion, automation, robotics and process control applications.

eBOX832-840 Embedded System with Intel® Core™2 Duo Processor up to 2.2 GHz, Intel® GME965E+ICH8M Chipset and PCIe x16 Slot

Axiomtek's eBOX639-822-FL, a fanless Intel® Pentium® M platform, is an application-ready embedded system. It can be easily applied into any environment due to its compact, rugged aluminum housing design. Besides, this fanless unit supports various expansion cards by offering two PCI slots. The eBOX639-822-FL is a powerful all-in-one box PC targeted at industrial motion and automation control or DVR fields.

eBOX639-822-FL Fanless Embedded System with Intel® Pentium® M Processor up to 2 GHz, Intel® 910GMLE+ICH6M Chipset and 2 PCI Slots

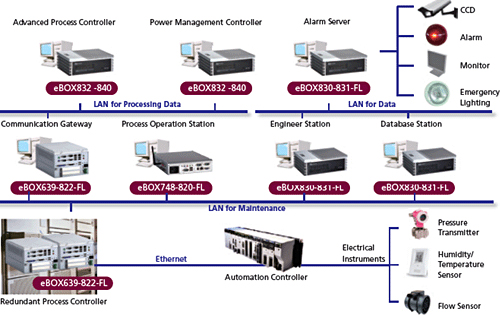

Application Diagram

Embedded Industrial Controller
