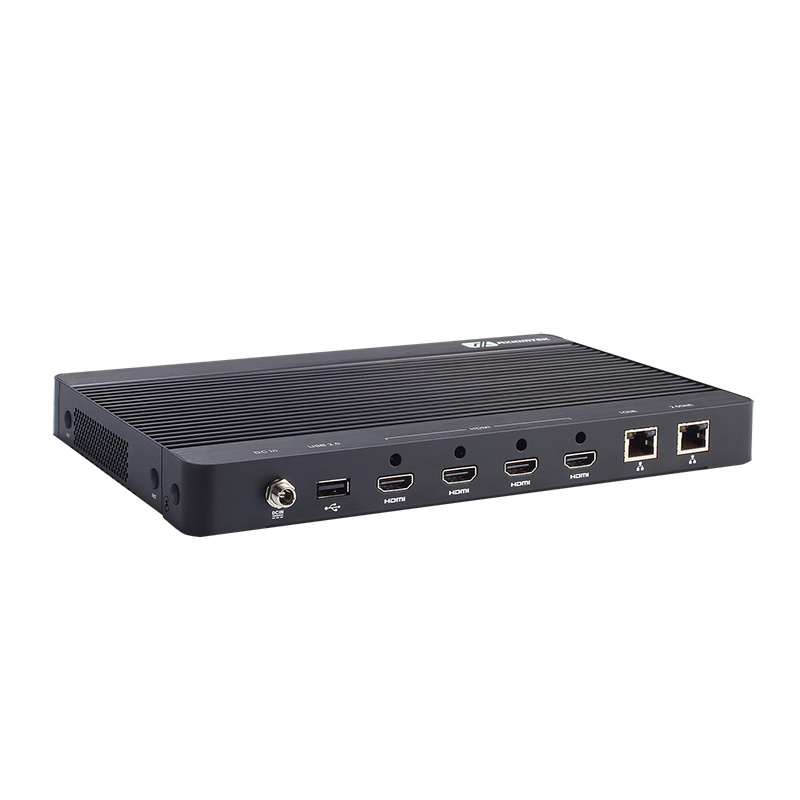

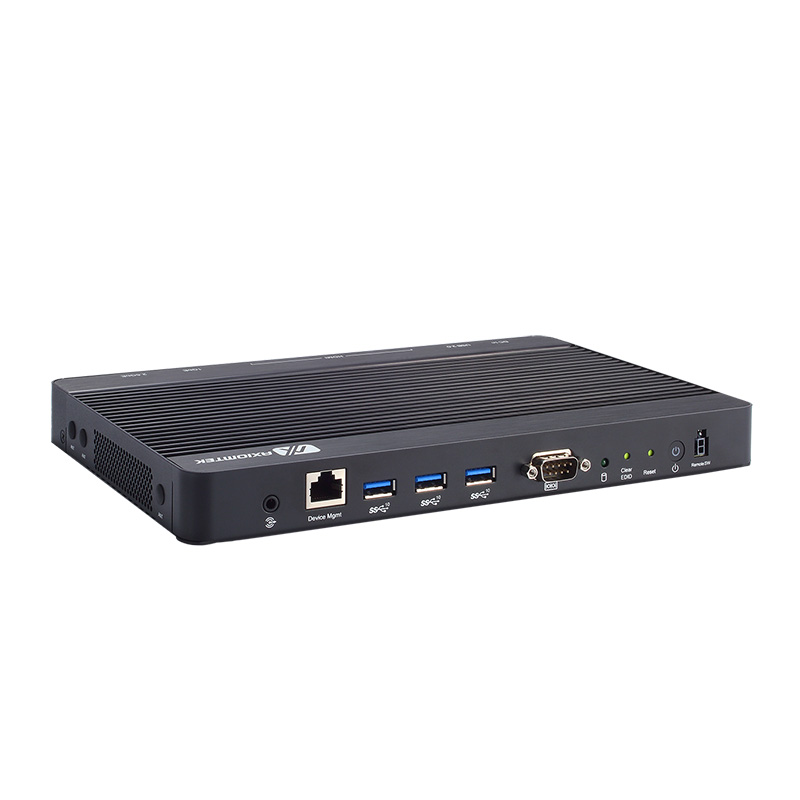

DSP511

Status : Available

4K Digital Signage Player with 11th Gen Intel® Core™ i5/i3 or Celeron® Processor, 4 HDMI, 4 USB, and 2.5G LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
DSP511
DSP511
2.5G LAN

2.5G LAN

4K

4K

Fanless

Fanless

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 11th gen Intel® Core™ i5/i3 or Celeron® processor (Tiger Lake UP3)
  • 2 DDR4-3200 SO-DIMM for up to 64GB of memory
  • 4 HDMI 2.0 in support of 4K resolution
  • 4 USB, one 2.5G LAN and GbE LAN
  • 1 M.2 Key E 2230 for Wi-Fi/Bluetooth
  • 1 M.2 Key B 3052 for 5G/LTE
  • 1 M.2 Key M 2280 for storage
  • Compliant with CE+FCC+BSMI specifications

Specifications

CPU
  • 11th gen Intel® Core™ i5/i3 or Celeron® processor (Tiger Lake)
Chipset
  • SoC Integrated
System Memory
  • 2 x DDR4-3200 SO-DIMM, max. up to 64GB
Watchdog Timer
  • 255 levels, 1 to 255 sec./min.
COM
  • 1 x RS-232
USB
  • 3 x USB 3.2 Gen 2
  • 1 x USB 2.0
Ethernet
  • 1 x 2.5G LAN
  • 1 x GbE LAN
Display
  • 4 x HDMI 2.0
Audio
  • 1 x Audio jack (combo)
Storage
  • 1x M.2 Key M 2280 (SATA & NVMe)
Expansion
  • 1 x M.2 Key E 2230 for Wi-Fi/Bluetooth
  • 1 x M.2 Key B 3052 for 5G/LTE
  • 1 x SIM card slot
Others
  • 1 x Device management
  • 1 x DC power input (lockable)
  • 1 x HDD LED
  • 1 x Power switch
  • 1 x Reset switch
  • 6 x Antenna opening
  • 1 x Remote power switch
TPM
  • TPM 2.0
Power Supply
  • +12V DC-in
Vibration Endurance
  • N/A
Operating Temperature
  • 0ºC to +50ºC (+32ºF to +122ºF)
Dimensions<br>(W x D x H)
  • 260 mm (10.24") (W) x 160 mm (6.3") (D) x 25 mm (0.99") (H)
Weight (net/gross)
  • 1.3kg (2.86 lb)/2.07kg (4.6 lb)
Mounting
  • Wall mount
EOS Support
  • Win 10 IoT, Linux
Software Support
  • Remote Device Management (RDM)
Certifications
  • CE, FCC class A

Ordering Information

  • DSP511-6305E (P/N-E22K511100)
    Digital signage player with 11th gen Intel® Celeron® 6305E processor, 4 HDMI, 2.5G LAN, and USB 3.2
  • DSP511-i3-1115G4E (P/N-E22K511101)
    Digital signage player with 11th gen Intel® Core™ i3-1115G4E processor, 4 HDMI, 2.5G LAN, and USB 3.2
  • DSP511-i5-1145G7E (P/N-E22K511102)
    Digital signage player with 11th gen Intel® Core™ i5-1145G7E processor, 4 HDMI, 2.5G LAN, and USB 3.2

Download

Drivers

Date Description Version Download File
2022/04/01 05.LAN__26.4.zip VA1.0
2022/04/01 04.Intel(R) Management Engine _15.0.10.1447v1.2.zip VA1.0
2022/04/01 03.9205_FF00_PG477_Win10_RS4_RS5_19H1_20H1_Win7_WHQL.zip VA1.0
2022/04/01 02.Intel Graphics Driver _win_101.1404.zip VA1.0
2022/04/01 01.Intel Chipset Software Installation Utility_10.1.18460.8229_3.1.7.131.zip VA1.0

Software

Manual

Date Description Version Download File
2022/04/01 DSP511 Quick Manual VA1_12-23-2021.pdf VA1.0
2022/04/01 DSP511 User's Manual VA1_12-23-2021.pdf VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/03/02 BSMI Certificate
2023/03/02 CE LVD Verification
2023/03/02 UKCA Declaration of Conformity
2023/03/02 CE-Conformity Declaration
2023/03/02 FCC Verification
2023/03/02 CE EMC Verification
