CEM710

Status : Available

COM Express Type 7 Basic Module with Intel® Xeon® D-1700 Series Processor

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote

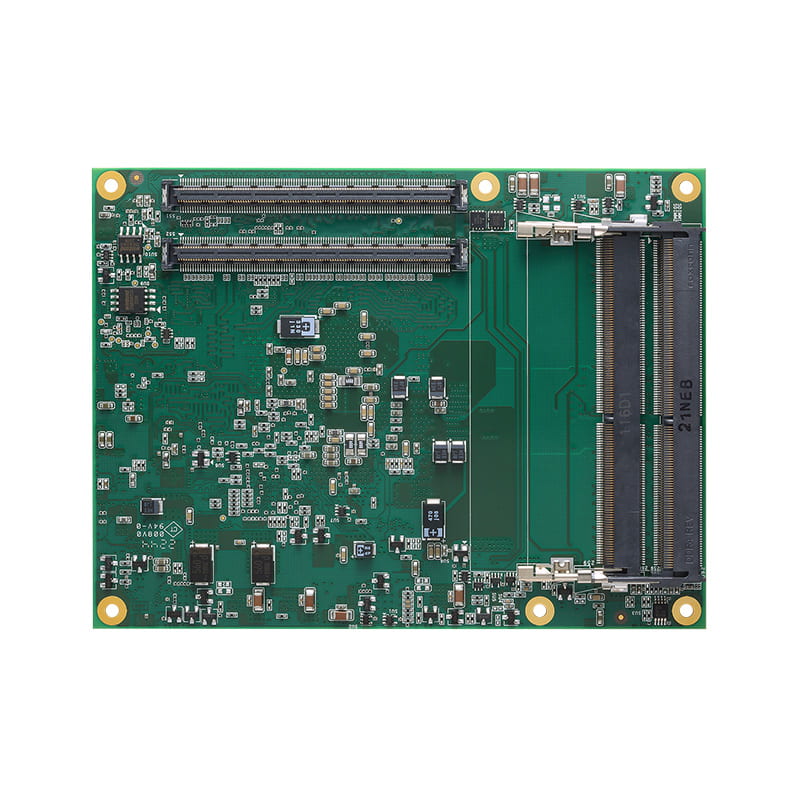

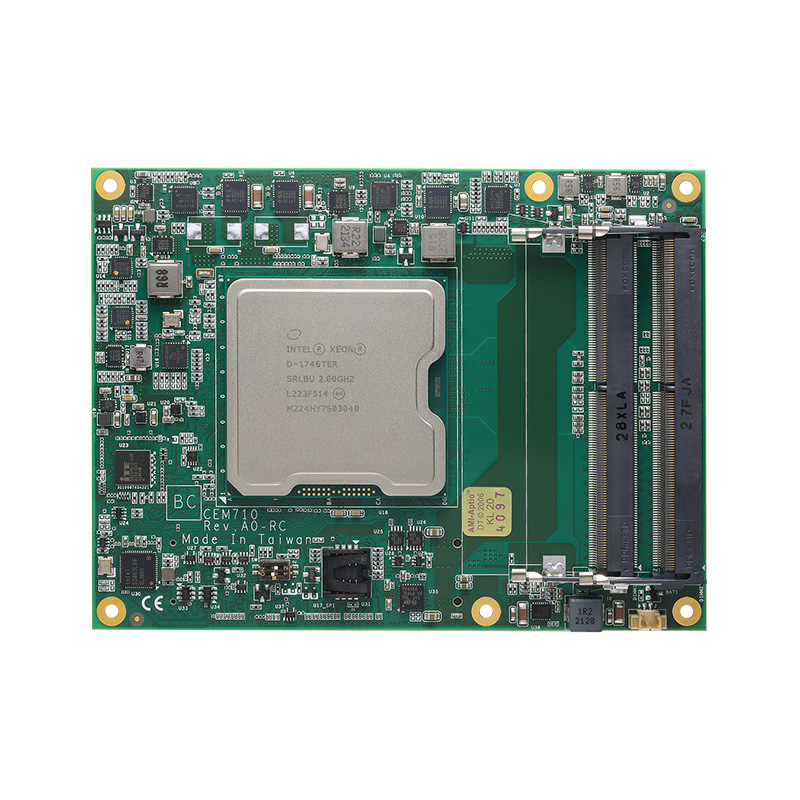

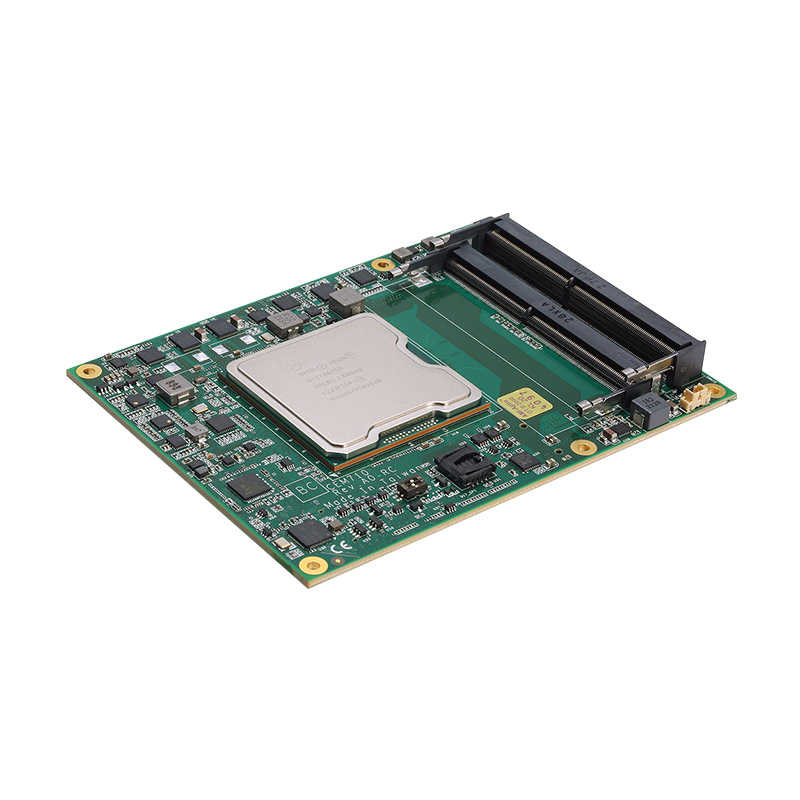

CEM710
CEM710
CEM710
Low Power

Low Power

PCIe Expansion

PCIe Expansion

Solid CAP

Solid CAP

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Xeon® D-1700 series processor (Ice Lake D)
  • 2 DDR4-2400 SO-DIMM for up to 64 GB memory
  • 1 PCIe x16 Gen3 (PEG), 1 PCIe x8 Gen3, and 6 PCIe x1 Gen3
  • 2 SATA Gen3
  • 4 USB 3.0 and 4 USB 2.0
  • 4 10GBase-KR
  • Supports TPM 2.0

Specifications

CPU
  • Intel® Xeon® D-1712TR (4 x 2.0 GHz, 10MB cache, 50G Eth, 40W)
  • Intel® Xeon® D-1715TER (4 x 2.4 GHz, 10MB cache, 50G Eth, 50W)
  • Intel® Xeon® D-1732TE (8 x 1.9 GHz, 15MB cache, 50G Eth, 52W)
  • Intel® Xeon® D-1735TR (8 x 2.2 GHz, 15MB cache, 50G Eth, 59W)
  • Intel® Xeon® D-1746TER (10 x 2.0 GHz, 15MB cache, 100G Eth, 67W)
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB with ECC support
BIOS
  • AMI
Serial
  • 2 x TX/RX
USB
  • 4 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000/2500 Mbps with Intel® I226, configured through COMe PCIe port 7
  • 4 x 10GBASE-KR with Intel® 10G external PHY
Display
  • N/A
GPIO
  • 4-CH in & 4-CH out
Audio
  • N/A
Storage
  • 2 x SATA Gen3
Expansion
  • 1 x PCIe x16 Gen3 (PEG)
  • 1 x PCIe x8 Gen3
  • 6 x PCIe x1 Gen3
Others
  • TPM 2.0
  • 1 x I2C
  • 1 x LPC
  • 1 x SPI
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Standard: 0°C to +60°C (+32°F to +140°F)
  • Extended: -40°C to +85°C (-40°F to +185°F) with system thermal solution
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • 3.5 Grms
Dimensions
  • 125 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM710-D1712TR (P/N-E38D710102)
    COM Express Type 7 basic module with Intel® Xeon® D-1712TR, 10GBASE-KR, USB 3.0, and TPM
  • CEM710-D1746TER (P/N-E38D710100)
    COM Express Type 7 basic module with Intel® Xeon® D-1746TER, 10GBASE-KR, USB 3.0, and TPM
  • CEB94701 (P/N-E394701100)
    COM Express Type 7 development board
  • E39R170102
    Cooler CEM710 L125 W94.8 T23.45
  • E39R170103
    Heatspreader CEM710 L125 W95 T11

Download

Drivers

Date Description Version Download File
2024/10/17 2_Intel_Lan_driver_all.zip VA10
2024/10/17 3_SerialPatch.zip VA10
2024/10/17 1_Chipset.zip VA10

Software

Manual

Date Description Version Download File
2024/10/17 user manual VA0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2025/01/10 FCC Verification
2025/01/10 CE-Conformity Declaration
2025/01/10 UKCA Declaration of Conformity
2025/01/10 CE EMC Verification

Frequently Asked Questions
