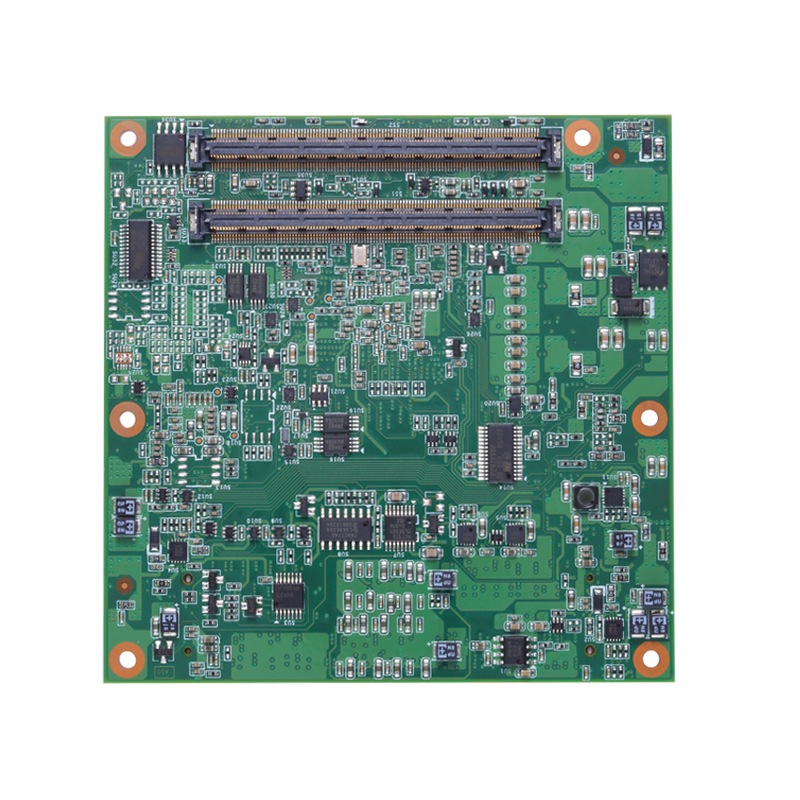

CEM843

Status : Available

COM Express Type 6 Compact Module with Intel® Atom™ Processor E3845

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM843
CEM843
Fanless

Fanless

Low Power

Low Power

Solid CAP

Solid CAP

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom™ processor E3845 (Bay Trail)
  • 2 DDR3L-1066/1333 SO-DIMM up to 8GB
  • Max. up to 6 lanes of PCIe
  • 2 SATA-300
  • 8 USB 2.0 and 1 USB 3.0
  • TPM 1.2 supported

Specifications

CPU
  • Intel® Atom™ processor E3845 1.91 GHz onboard
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
Serial
  • N/A
USB
  • 8 x USB 2.0
  • 1 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210IT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x DDI (DisplayPort, HDMI, DVI)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • 2 x SATA-300
Expansion
  • Max. up to 6 lanes of PCIe
Others
  • 1 x LPC interface
  • 1 x SPI interface
Battery
  • N/A
Power Input
  • ATX: 12V/5VSB
  • AT: 12V
Watchdog Timer
  • 255 levels, 1~255 sec. or min.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC ~ +85ºC (-40ºF ~ +185ºF)
Vibration
  • N/A
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM843PVG-E3845 (P/N-E38D843100)
    COM Express Type 6 compact module with Intel® Atom™ E3845 1.91 GHz, DDI/VGA/LVDS, GbE LAN, USB 3.0 and TPM
  • CEB94011 (P/N-E394011100)
    ATX form factor Type 6 evaluation baseboard
  • 5078D841100E
    CEM841/CEM842/CEM843 Heatspreader
  • 5078D842200E
    CEM841/CEM842/CEM843 Heatsink without fan
