Status : Available

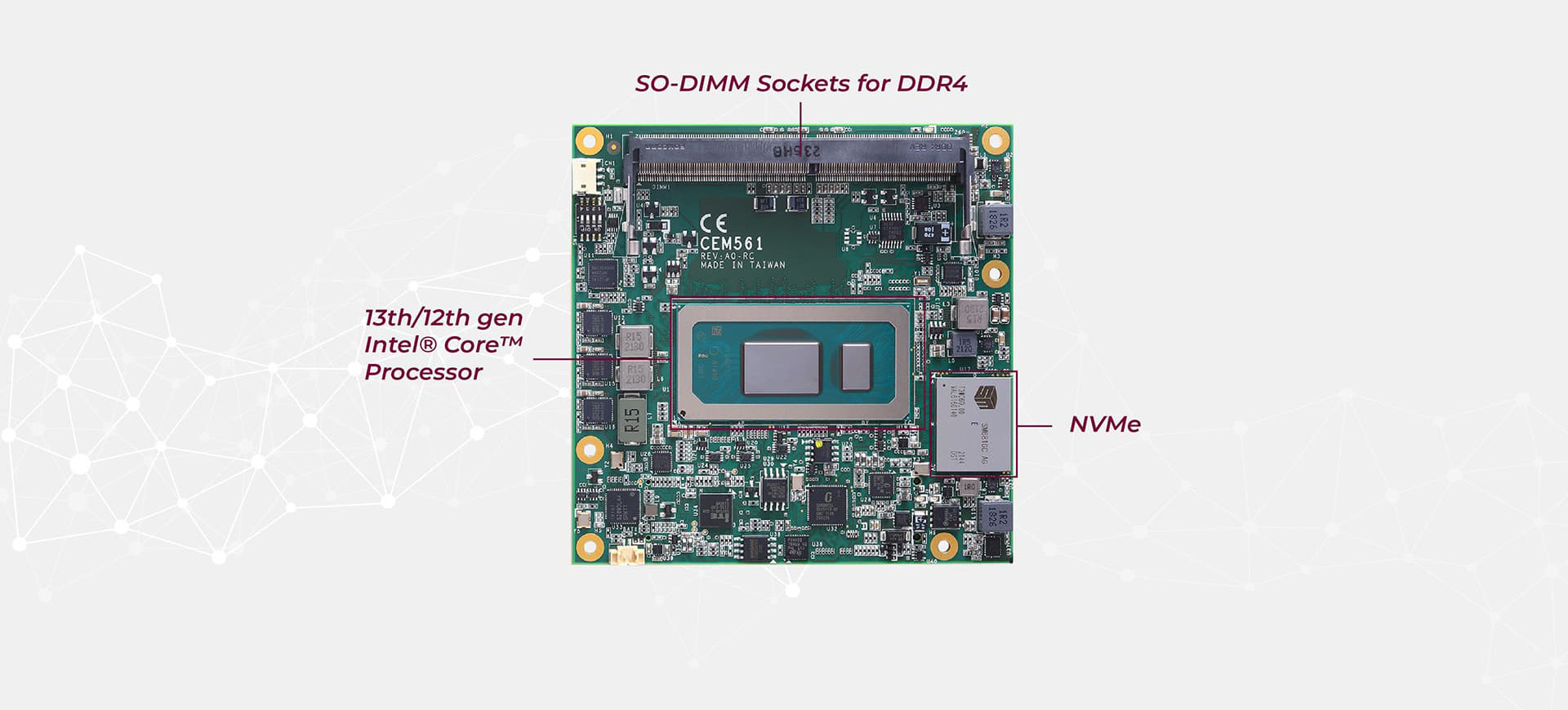

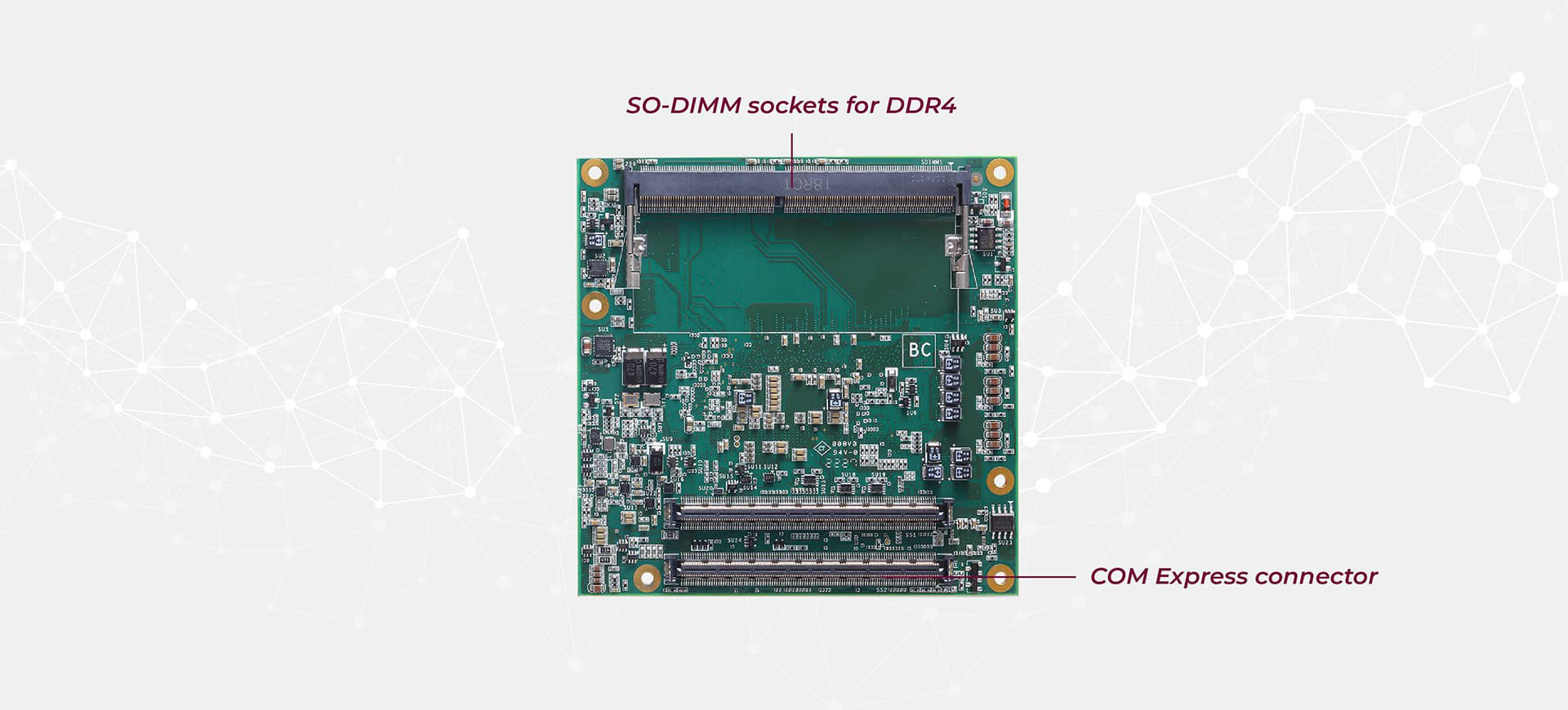

COM Express Type 6 Compact Module with 13th/12th Gen Intel® Core™ or Celeron® Processor
13th/12th Gen Intel® Core™
1 x LVDS, 1 x VGA, 2 x DisplayPort
-40°C to +85°C operating temperature 3.5Grms vibration endurance
The CEM561 is powered by 13th/12th Gen Intel® Core™ U-series processors, featuring up to two Performance-cores (P-core), eight Efficient-cores (E-core), and twelve threads. This system-on-module combines high performance with low power consumption, making it ideal for diverse edge computing applications, including industrial automation, HMIs, healthcare, and machine control.
With its enhanced Intel® Iris® Xe / UHD Graphics engine, the CEM561 delivers high-quality visuals up to 8K60 HDR and supports three simultaneous displays via LVDS, VGA, and two DisplayPort interfaces, making it ideal for demanding medical or multimedia imaging and control applications.
The CEM561 features dual-channel DDR4-3200 SO-DIMM supporting up to 64GB of memory, and an optional NVMe SSD up to 512GB, ensuring fast data access and transfer speeds.
Engineered for rugged industrial IoT environments, the CEM561 operates reliably from -40°C to +85°C, making it suitable for applications in land defense, navigation, and roadside monitoring.
The CEM561 provides one PCIe x4 Gen4 (PEG) slot and five PCIe Gen3 slots by default, with an option to expand to eight PCIe Gen3 slots if needed.
CEM561 COM Express® Type 6 CPU module with 12th/13th Gen Intel® Core™, high performance, low power, and rugged design for industrial IoT and edge computing.
