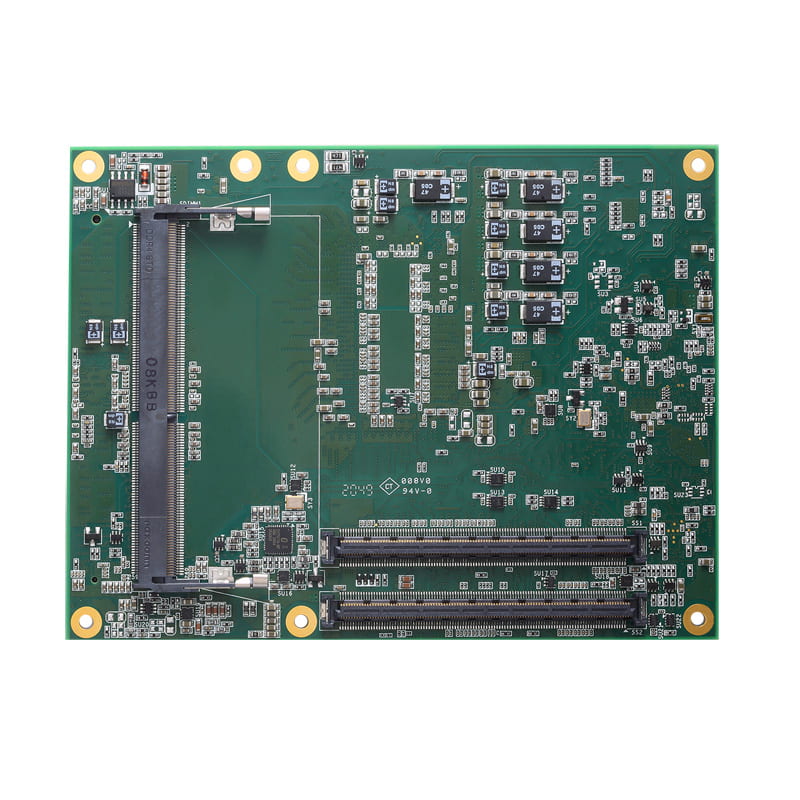

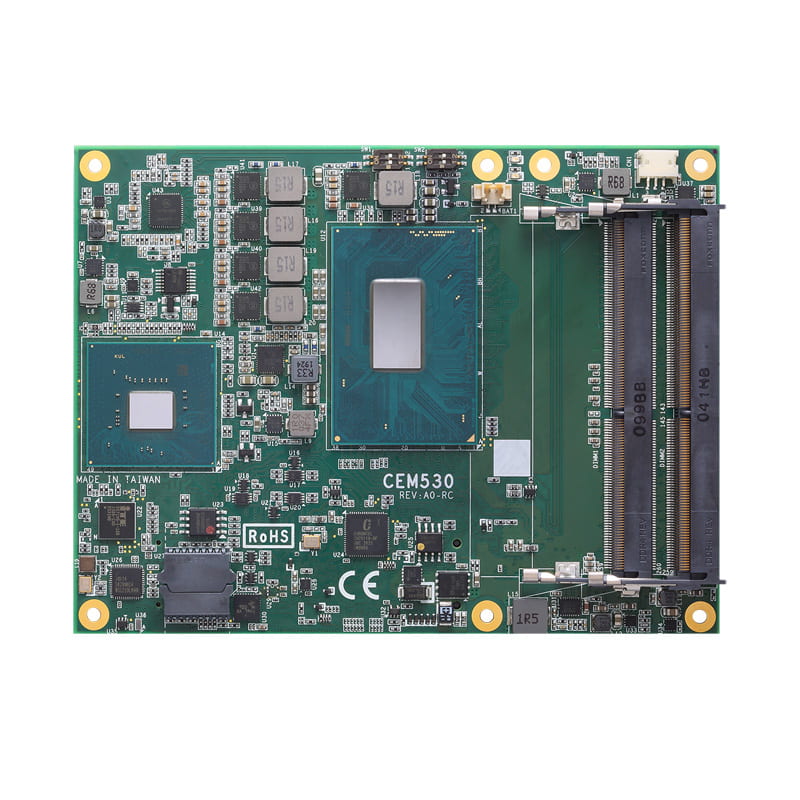

CEM530

Status : Available

COM Express Type 6 Basic Module with Intel® Xeon® or 9th/8th Gen Intel® Core™ Processor and Intel® CM246/QM370

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM530
CEM530
RAID

RAID

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Xeon® or 9th/8th gen Intel® Core™ processor
  • Intel® CM246/QM370 chipset
  • Dual channel DDR4-2666 SO-DIMM for up to 64GB of memory
  • 1 PCIe x16 and 8 PCIe x1 Gen3
  • 4 SATA Gen3 with RAID 0/1/5/10
  • 4 USB 3.2 and 8 USB 2.0
  • Supports TPM 2.0

Specifications

CPU
  • Intel® Xeon® or 9th/8th gen Intel® Core™ processor (Coffee Lake & Coffee Lake Refresh)
Chipset
  • Intel® CM246/QM370
System Memory
  • Dual-channel DDR4-2666 SO-DIMM, up to 64GB (or 96GB by request)
BIOS
  • AMI
Serial
  • 1 x LPC
  • 1 x SPI
  • 2 x TX/RX
USB
  • 4 x USB 3.2 Gen 2
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
Display
  • 1 x LVDS; 18/24-bit single/dual channel (default), optional with eDP 1.4: 4096 x 2304 @60Hz
  • 1 x VGA; 1920 x 1200 @60Hz (default)
  • 2 x DDI (DisplayPort 1.2: 4096 x 2304 @60Hz/HDMI 1.4: 4096 x 2160 @30/24Hz)
GPIO
  • 4-CH in & 4-CH out (SDIO optional)
Audio
  • HD link interface to baseboard for Codec
Storage
  • 4 x SATA Gen3 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16 Gen3
  • 8 x PCIe x1 Gen3
Others
  • TPM 2.0
  • 1 x I2C
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F) with system thermal solution (operation with heatsink and fan)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 125 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM530-E-2276ME+CM246 (P/N-E38D530106)
    COM Express Type 6 basic module with Intel® Xeon® E-2276ME, CM246, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-i7-9850HE+QM370 (P/N-E38D530107)
    COM Express Type 6 basic module with Intel® Core™ i7-9850HE, QM370, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-i3-9100HL+QM370 (P/N-E38D530102)
    COM Express Type 6 basic module with Intel® Core™ i3-9100HL, QM370, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-G4930E+CM246 (P/N-E38D530105)
    COM Express Type 6 basic module with Intel® Core™ G4930E, CM246, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-E-2176ME+CM246 (P/N-E38D530108)
    COM Express Type 6 basic module with Intel® Xeon® E-2176ME, CM246, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-i7-8850H+QM370 (P/N-E38D530110)
    COM Express Type 6 basic module with Intel® Core™ i7-8850H, QM370, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-i5-8400H+QM370 (P/N-E38D530111)
    COM Express Type 6 basic module with Intel® Core™ i5-8400H, QM370, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEM530-i3-8100H+QM370 (P/N-E38D530113)
    COM Express Type 6 basic module with Intel® Core™ i3-8100H, QM370, DDI/LVDS, GbE LAN, USB 3.0, and TPM
  • CEB94011 (P/N-E394011100)
    CEB94011 COM Express Type 6 evaluation board
  • E39J015100
    CEM530/CEM520 heat sink with fan
  • E39J006100
    CEM530/CEM520 heat spreader
