CEM521

Status : Available

COM Express Type 6 Compact Module with 8th Gen Intel® Core™ & Celeron® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM521
CEM521
Low Power

Low Power

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 8th gen Intel® Core™ i7/i5/i3 and Celeron® processors (Whiskey Lake-U)
  • 2 dual-channel DDR4-2400 SO-DIMM for up to 64GB
  • Max. up to 8 lanes of PCI Express
  • 3 SATA Gen3
  • 4 USB 3.0 and 8 USB 2.0
  • Supports eMMC for up to 64G (optional)
  • TPM 2.0 supported

Specifications

CPU
  • Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE processor (Whiskey Lake-U) & Intel® Celeron® processor 4305UE
Chipset
  • SoC integrated
System Memory
  • 2 x Dual-channel DDR4-2400 SO-DIMM slot, up to 64GB
BIOS
  • AMI
Serial
  • 1 x LPC
  • 1 x SPI
  • 2 x TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i219-LM)
Display
  • 1 x LVDS (optional eDP 1.4: 4096 x 2304@60Hz)
  • 1 x VGA 1920 x 1200 @60Hz (default)
  • 1 x DDI (DisplayPort 1.2: 4096 x 2304@60Hz/HDMI 1.4: 4096 x 2160@30/24Hz)
GPIO
  • 4-CH in & 4-CH out (SDIO optional)
Audio
  • HD link interface to baseboard for Codec
Storage
  • 3 x SATA Gen3
Expansion
  • 8 x PCI Express Gen3 (max. 5 PCIe devices without LAN)
Others
  • 1 x I2C
  • TPM 2.0
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM521-i7-8665UE (P/N-E38D521100)
    COM Express Type 6 Compact module with Intel® Core™ i7-8665UE, DDI, VGA, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM521-i5-8365UE (P/N-E38D521102)
    COM Express Type 6 Compact module with Intel® Core™ i5-8365UE, DDI, VGA, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM521-i3-8145UE (P/N-E38D521104)
    COM Express Type 6 Compact module with Intel® Core™ i3-8145UE, DDI, VGA, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM521-Cel-4305UE (P/N-E38D521105)
    COM Express Type 6 Compact module with Intel® Celeron® 4305UE, DDI, VGA, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM521-i7-8665UE (Ind.) (P/N-E38D521110)
    COM Express Type 6 compact module with Intel® Core™ i7-8665UE DDI VGA LVDS GbE LAN USB 3.0 and TPM (wide temperature)
  • CEM521-i5-8365UE (Ind.) (P/N-E38D521111)
    COM Express Type 6 compact module with Intel® Core™ i5-8365UE DDI VGA LVDS GbE LAN USB 3.0 and TPM (wide temperature)
  • CEM521-i3-8145UE (Ind.) (P/N-E38D521112)
    COM Express Type 6 compact module with Intel® Core™ i3-8145UE DDI VGA LVDS GbE LAN USB 3.0 and TPM (wide temperature)
  • CEB94011 (P/N-E394011100)
    COM Express Type 6 evaluation board
  • E39J016100
    CEM521 heat sink with fan
  • 7128D521000E
    CEM521 heat spreader

Download

Drivers

Date Description Version Download File
2020/08/20 SerialPatch driver VA1.0
2020/08/20 RST(Rapid Storage Technology) driver VA1.0
2020/08/20 ME driver VA1.0
2020/08/20 LAN driver VA1.0
2020/08/20 Graphic driver VA1.0
2020/08/20 Chipset driver VA1.0

Software

Manual

Date Description Version Download File
2025/11/20 User's Manual VA2
2020/08/14 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/07 UKCA Declaration of Conformity
2020/05/19 CE-Conformity Declaration

You Might Also Like

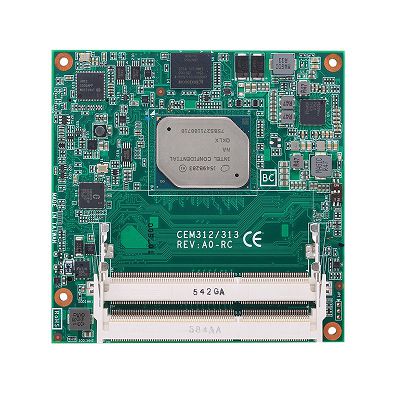

Picture of CEM312
