CEM501

Status : Available

COM Express Type 6 Compact Module with 6th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

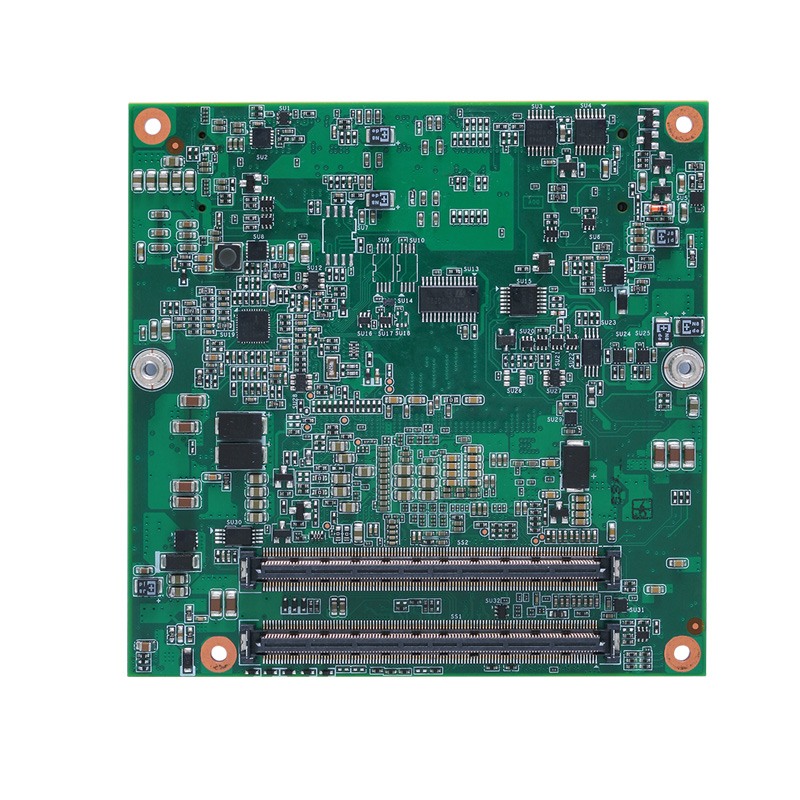

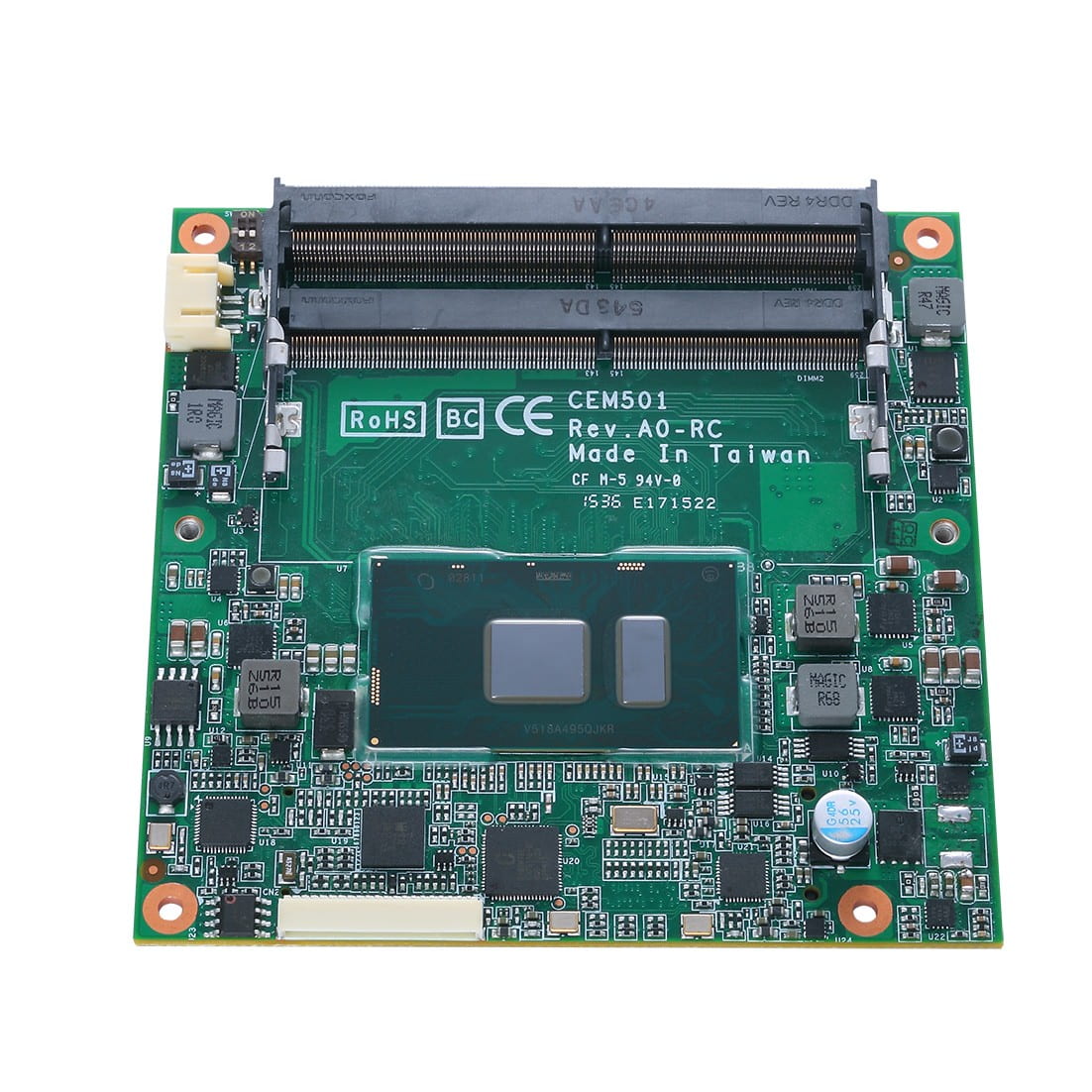

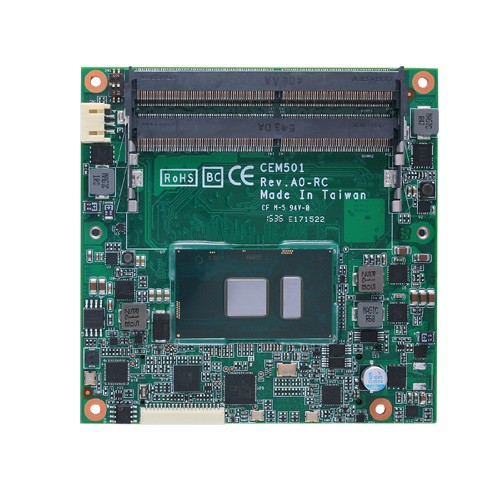

CEM501
CEM501
CEM501
Low Power

Low Power

Solid CAP

Solid CAP

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 6th gen Intel® Core™ i7/i5/i3 and Celeron® processors (Skylake-U)
  • 2 DDR4-2133 SO-DIMM, up to 32GB
  • Max. up to 6 lanes of PCI Express
  • 3 SATA-600
  • 4 USB 3.0 and 8 USB 2.0
  • AXView 2.0 intelligent remote management software
  • TPM 1.2 supported

Specifications

CPU
  • 6th generation Intel® Core™ processor: i7-6600U 2.6 GHz, i5-6300U 2.4 GHz, i3-6100U 2.3 GHz onboard
  • Intel® Celeron®-3955U 2.0 GHz onboard
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin SO-DIMM DDR4-2133 up to 32 GB
BIOS
  • AMI
Serial
  • 2 x Serial TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 2 x DDI (DisplayPort/HDMI/DVI); 1 DDI optional with VGA
  • 1 x LVDS; 18/24-bit dual channel (eDP optional)
GPIO
  • 4-IN & 4-OUT (SDIO optional)
Audio
  • HD link interface to baseboard for Codec
Storage
  • 3 x SATA-600
Expansion
  • 6 lanes of PCI Express Gen. 3.0
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0 ~ 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity
  • N/A
Vibration
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM501PG-CEL-3955U (P/N-E38D501100)
    COM Express Type 6 compact module Intel® Celeron® 3955U (2.0 GHz), DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM501PG-i7-6600U (P/N-E38D501102)
    COM Express Type 6 compact module with Intel® Core™ i7-6600U (2.6 GHz), DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM501PG-i5-6300U (P/N-E38D501103)
    COM Express Type 6 compact module with Intel® Core™ i5-6300U (2.4 GHz), DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM501PG-i3-6100U (P/N-E38D501101)
    COM Express Type 6 compact module with Intel® Core™ i3-6100U (2.3 GHz), DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEB94011 (P/N-E394011100)
    CEB94011 COM Express Type 6 evaluation board
  • TS007-CEM501 (P/N-E39J007100)
    CEM501 heat sink with fan
  • 5078D501200E
    CEM501 heat spreader

Download

Drivers

Date Description Version Download File
2017/07/11 LAN Driver V1.1
2017/07/11 Graphic Driver V1.1
2017/07/11 ME Driver V1.1
2017/07/11 Chipset Driver V1.1

Software

Manual

Date Description Version Download File
2017/08/08 User's Manual V2.0
2017/07/11 Quick Manual V2.0

Design Guide

Date Description Version Download File
2018/08/17 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/07 UKCA Declaration of Conformity
2017/08/04 CE-Conformity Declaration
