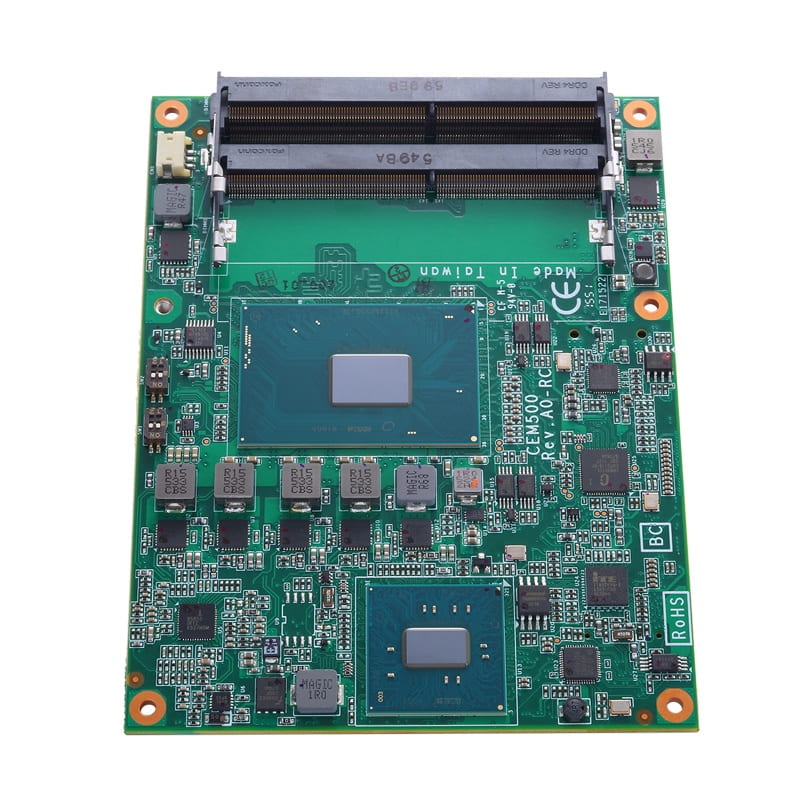

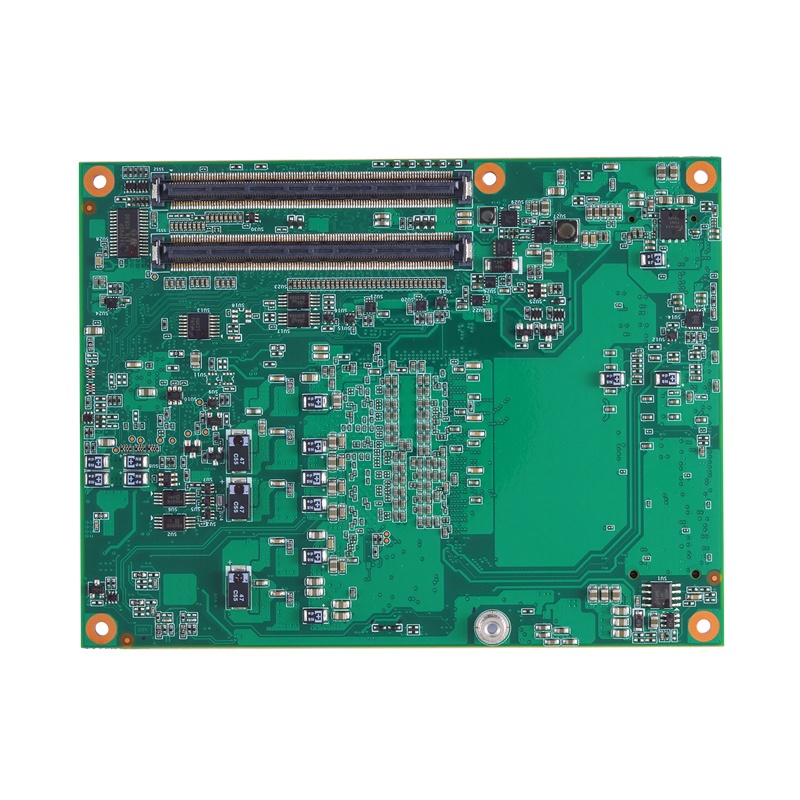

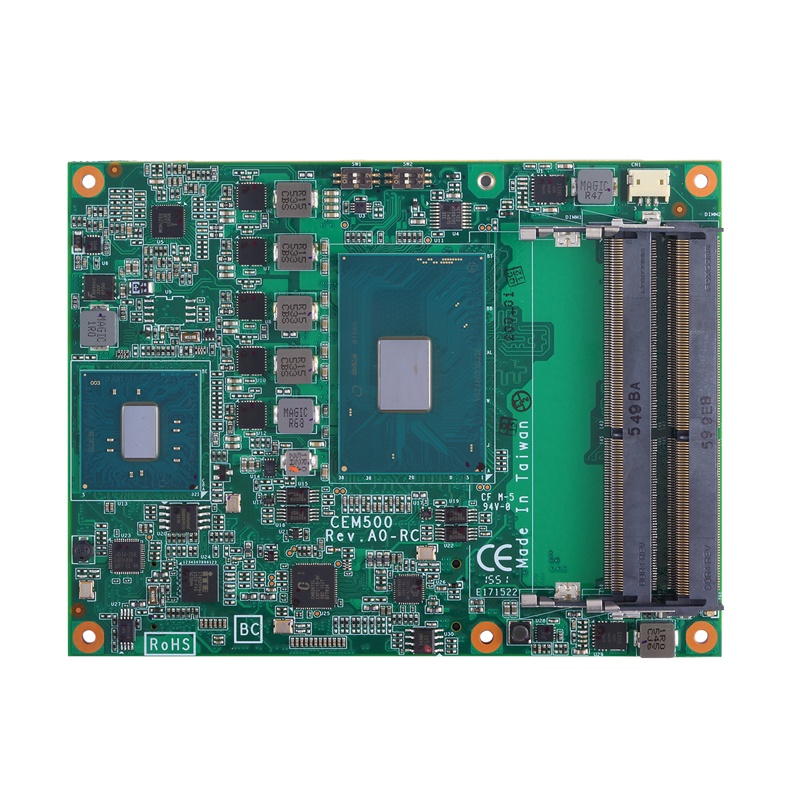

CEM500

Status : Available

COM Express Type 6 Basic Module with Intel® Xeon® and 6th Gen Intel® Core™ i7/i5/i3 Processor, Intel® CM236/QM170/HM170

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM500
CEM500
CEM500
Axiomtek EAPI

Axiomtek EAPI

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 6th gen Intel® Xeon® and Core™ i7/i5/i3 processors (Skylake-H)
  • Intel® CM236/QM170/HM170 chipset
  • 2 DDR4-2133 SO-DIMM, up to 32GB ECC or non-ECC
  • 1 x PCIe x16 and 8 x PCIe x1 Gen. 3
  • 4 SATA-600 with RAID 0/1/5/10
  • 4 USB 3.0 and 8 USB 2.0
  • Intel® AMT 11.0 and TPM function supported
  • AXView 2.0 intelligent remote management software

Specifications

CPU
  • Intel® Xeon® and 6th generation Intel® Core™ processor (Skylake H): E3-1505M v5 (45 W), i7-6820EQ (45 W), i7-6822EQ (25 W), i5-6440EQ (45 W), i3-6100E (35 W)
Chipset
  • Intel® CM236/QM170/HM170
System Memory
  • 2 x DDR4-2133 SO-DIMM ECC or non-ECC, up to 32GB
BIOS
  • AMI
Serial
  • 2 x TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 1 x LVDS ;18/24-bit single/dual channel (default), optional with eDP
  • 1 x VGA up to 1920 x 1200 @60Hz (default)
  • 2 x DDI (DP/HDMI/DVI)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16
  • 8 x PCIe x1
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C interface
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
Watchdog Timer
  • 65536 levels, 0~65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC ~ +85ºC (-40ºF ~ +185ºF)
Vibration
  • N/A
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 125 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM500PG-E3-1505M+CM236 (P/N-E38D500109)
    COM Express Type 6 basic module with Intel® Xeon® E3-1505M v5 2.8 GHz, CM236, ECC, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM500PG-i3-6100E+CM236 (P/N-E38D500105)
    COM Express Type 6 basic module with Intel® Core™ i3-6100E 2.7 GHz, CM236, ECC, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM500PG-i7-6822EQ+QM170 (P/N-E38D500106)
    COM Express Type 6 basic module with Intel® Core™ i7-6822EQ 2.0 GHz, QM170, DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM500PG-i7-6820EQ+QM170 (P/N-E38D500100)
    COM Express Type 6 basic module with Intel® Core™ i7-6820EQ 2.8 GHz, QM170 DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM500PG-i5-6440EQ+QM170 (P/N-E38D500101)
    COM Express Type 6 basic module with Intel® Core™ i5-6440EQ 2.7 GHz, QM170 DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEM500PG-i3-6100E+QM170 (P/N-E38D500108)
    COM Express Type 6 basic module with Intel® Core™ i3-6100E 2.7 GHz, QM170 DDI/LVDS, GbE LAN, USB 3.0 and TPM
  • CEB94011 (P/N-E394011100)
    ATX form factor Type 6 evaluation board
  • TS008-CEM500 (P/N-E39J008100)
    CEM500 heat sink with fan
  • TS006-CEM500 (P/N-E39J006100)
    CEM500 Heatspreader

Download

Drivers

Date Description Version Download File
2022/05/03 01.Intel Chipset Software Installation Utility VA1.2
2017/09/20 04.Intel Network Driver VA1.2
2017/09/20 05.Intel(R) USB 3.0 Driver VA1.2
2017/09/20 02.Intel Graphics Driver VA1.2
2017/09/20 03.Intel Management Engine Firmware VA1.2

Software

Manual

Date Description Version Download File
2018/11/14 Quick Manual VA1
2017/03/23 CEM500 User's Manual VA1_06-24-2016 VA1.1

Design Guide

Date Description Version Download File
2018/08/17 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
2017/08/03 CE-Conformity Declaration
