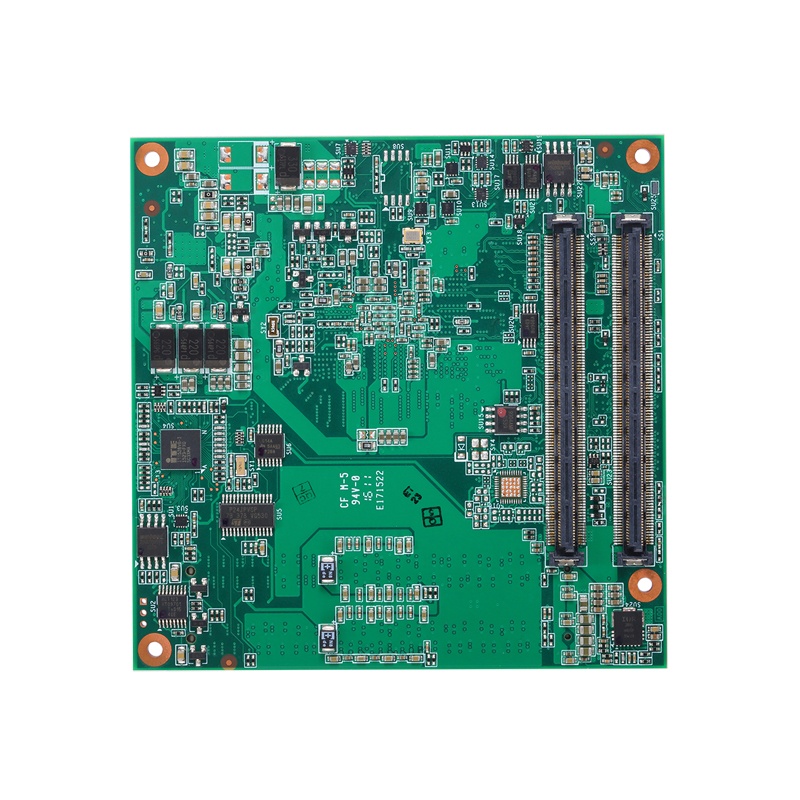

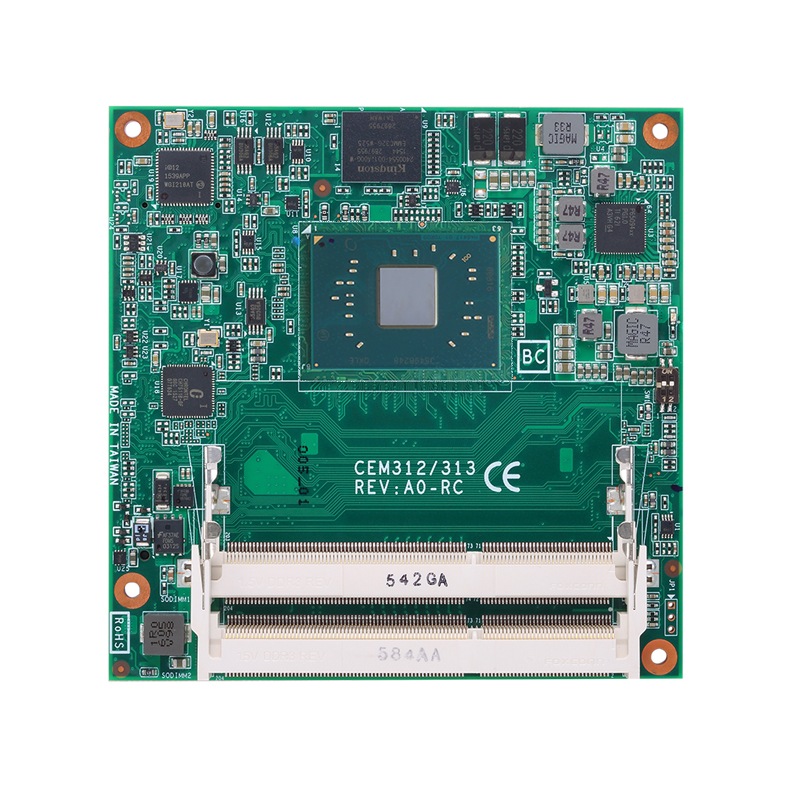

CEM313

Status : Available

COM Express Type 6 Compact Module with Intel® Pentium® Processor N4200 & Celeron® Processor N3350

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM313
CEM313
Dual-View

Dual-View

Low Power

Low Power

Solid CAP

Solid CAP

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
  • 2 DDR3L-1600 SO-DIMM up to 8GB
  • Max. up to 4 lanes of PCIe
  • 2 SATA-600
  • 4 USB 3.0 and 8 USB 2.0
  • AXView 2.0 intelligent remote management software for industrial IoT applications
  • TPM 1.2 supported (optional)

Specifications

CPU
  • Intel® Pentium® processor N4200 & Celeron® processor N3350 onboard (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 2 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
Serial
  • 2 x Serial TX/RX
USB
  • 4 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 2 x DDI (DisplayPort, HDMI, DVI); VGA optional
  • 1 x LVDS; 18/24-bit single channel (eDP optional)
GPIO
  • 4-IN & 4-OUT
Audio
  • HD link interface to baseboard for Codec
Storage
  • eMMC 5.0 up to 64GB (optional)
  • 2 x SATA-600
Expansion
  • 4 x PCIe lanes (3 lanes while internal LAN is connected)
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C
  • 3.5 Grms vibration endurance
Battery
  • N/A
Power Input
  • ATX: 12V, +5VSB
  • AT: 12V
Watchdog Timer
  • 65536 levels, 0~65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20ºC ~ +70ºC (-4°F ~ 158°F)
Vibration
  • 3.5 Grms
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM313PG-N4200 (P/N-E38D313100)
    COM Express Type 6 compact module with Intel® Pentium® processor N4200, DDI/LVDS, USB 3.0 and GbE LAN
  • CEM313PG-N3350 (P/N-E38D313101)
    COM Express Type 6 compact module with Intel® Celeron® processor N3350, DDI/LVDS, USB 3.0 and GbE LAN
  • CEB94011 (P/N-E394011100)
    CEB94011 COM Express Type 6 evaluation board
  • 7128D313000E
    CEM313 heat spreader
  • 7118D313000E
    CEM313 heat sink without fan

Download

Drivers

Date Description Version Download File
2021/06/22 Serial IO Driver VA1.2
2021/06/22 LAN Driver VA1.2
2021/06/22 Graphic Driver VA1.2
2021/06/22 TXE Driver VA1.2
2021/06/22 Chipset Driver VA1.2

Software

Manual

Date Description Version Download File
2019/03/14 Quick Manual VA2
2019/03/14 User's Manual VA3

Design Guide

Date Description Version Download File
2018/08/28 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/07 UKCA Declaration of Conformity
2017/08/04 CE-Conformity Declaration
