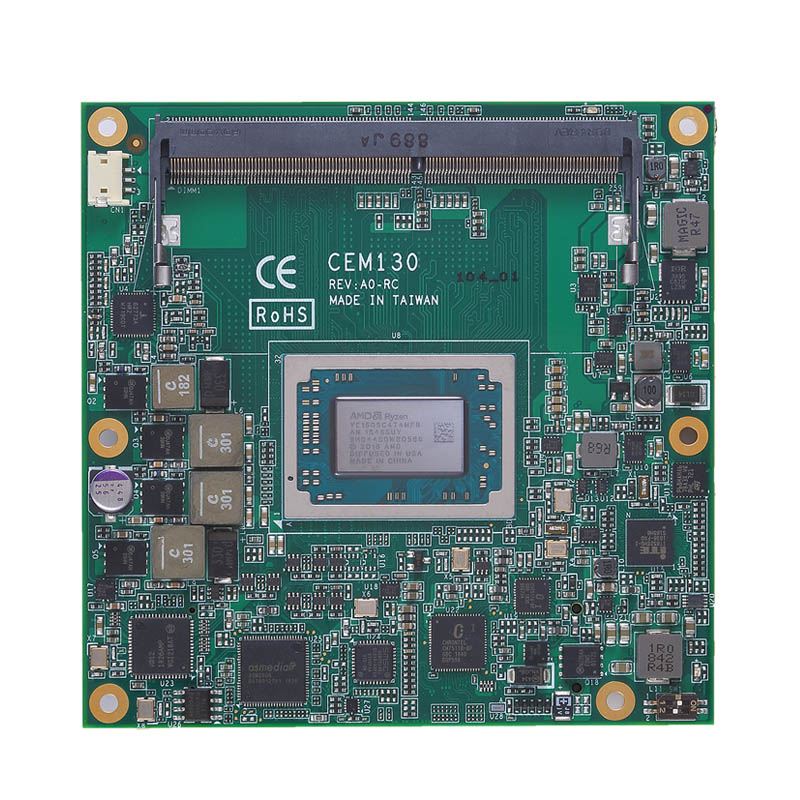

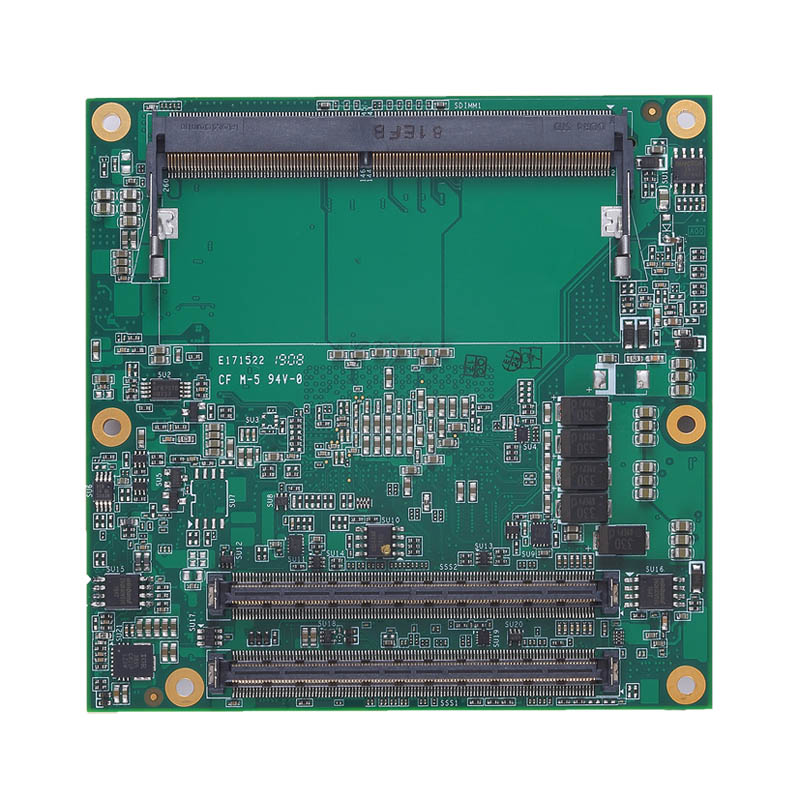

CEM130

Status : Available

COM Express Type 6 Compact Module with AMD Ryzen™ Embedded V1000 Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEM130
CEM130
Low Power

Low Power

TPM

TPM

Triple-View

Triple-View

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • AMD Ryzen™ Embedded V1000 processors
  • 2 DDR-2400/3200 SO-DIMM for up to 64GB of memory
  • Max. up to 7 lanes of PCI Express
  • 2 SATA-600
  • 3 USB 3.0 and 8 USB 2.0
  • TPM 2.0 supported
  • Wide voltage input from +8V to +20V

Specifications

CPU
  • AMD Ryzen™ Embedded V1000 series
  • V1202B / 2.3 GHz (12-25W)
  • V1605B / 2.0 GHz (12-25W)
  • V1756B / 3.25 GHz (35-54W)
  • V1807B / 3.35 GHz (35-54W)
Chipset
  • SoC integrated
System Memory
  • 2 x Dual-channel DDR4-2400/3200 non-ECC/ECC SO-DIMM, up to 64GB
BIOS
  • AMI
Serial
  • 1 x LPC
  • 1 x SPI
  • 2 x TX/RX
USB
  • 3 x USB 3.0
  • 8 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i210)
Display
  • 1 x VGA; 1920 x 1200 @60Hz
  • 1 x LVDS dual-channel 18/24-bit or eDP 1.3 (optional)
  • 2 x DDI (HDMI 1.4, DVI, DisplayPort 1.2)
GPIO
  • 4-CH in & 4-CH out
Audio
  • HD link interface to baseboard for Codec
Storage
  • 2 x SATA-600
Expansion
  • 7 x PCIe x1 via PCIe bridge
Others
  • 1 x I2C
Battery
  • N/A
Power Input
  • ATX: +12V, +5VSB
  • AT: +12V
  • Wide range input: +8V to +20V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Vibration
  • N/A
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 95 x 95 mm
Board Thickness
  • 2.0 mm
Certifications
  • CE

Ordering Information

  • CEM130-V1202B (P/N-E38D130103)
    COM Express Type 6 Compact module with AMD Ryzen™ Embedded V1202B, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM130-V1605B (P/N-E38D130102)
    COM Express Type 6 Compact module with AMD Ryzen™ Embedded V1605B, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM130-V1756B (P/N-E38D130101)
    COM Express Type 6 Compact module with AMD Ryzen™ Embedded V1756B, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEM130-V1807B (P/N-E38D130100)
    COM Express Type 6 Compact module with AMD Ryzen™ Embedded V1807B, DDI, LVDS, GbE LAN, USB 3.0 and TPM
  • CEB94011 (P/N-E394011100)
    COM Express Type 6 application board
  • E39J014100
    CEM130 heat sink with fan
  • 7128D130000E
    CEM130 heat spreader
