CEB94022

Status : Available

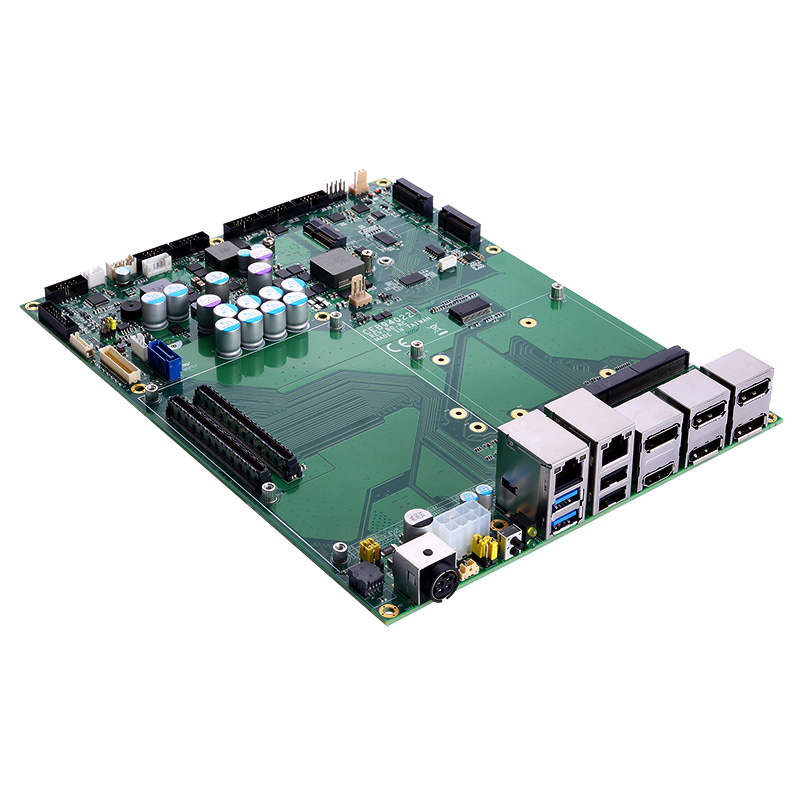

COM Express Type 6 Application Board with MXM Slot

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEB94022
CEB94022
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • MXM type A/B supported
  • SATA 3.0
  • LVDS, VGA, HDMI, and DisplayPort
  • 4 USB 2.0 and 2 USB 3.0
  • 3 x M.2 slot (Key E/B/M)
  • 3 RS-232/422/485 and 1 RS-232

Specifications

CPU
  • COM Express™ Type 6 module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
Serial
  • 1 x RS-232
  • 3 x RS-232/422/485
USB
  • 4 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 1 x 10/100/1000/2500 Mbps Ethernet (Intel® I226)
  • 1 x 10/100/1000/2500 Mbps (by COMe model) signals routed from the CPU module
Display
  • 1 x LVDS
  • 1 x VGA
  • 1 x HDMI (from COM express module)
  • 1 x DisplayPort (from COM Express module)
  • 4 x DisplayPort (from MXM)
GPIO
  • 4-CH in & 4-CH out
Audio
  • Line-in/Line-out/MIC-in
Storage
  • 1 x SATA 3.0
Expansion
  • MXM Type A/B slot
  • M.2 Key E 2230
  • M.2 Key B 3052
  • M.2 Key M 2280
Others
  • TPM (depends on COM Express module)
  • SMBus
  • 1 x I2C
Battery
  • Lithium 3V/220mAH
Power Input
  • DC 19 to 24V via adapter/12V via ATX 8-pin connector
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Vibration
  • N/A
Dimensions
  • 245 x 190 mm
Board Thickness
  • 1.6mm
Certifications
  • CE

Ordering Information

  • CEB94022 (P/N-E394022103)
    COM Express Type 6 application board with MXM slot, 3 M.2 slots, 2 LANs, LVDS, VGA, and multiple I/O features
  • CEM500 Series
    COM Express Type 6 Basic module with 6th Gen Intel® Xeon® and Core™ i7/i5/i3 processors (Skylake-H)
  • CEM510 Series
    COM Express Type 6 Basic module with Intel® Xeon® E3 or 7th Gen Intel® Core™ i7/i5/i3 processors (Kaby Lake-H)
  • CEM501 Series
    COM Express Type 6 Compact module with 6th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Skylake-U)
  • CEM511 Series
    COM Express Type 6 Compact module with 7th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® 3965U processor (Kaby Lake-U)
  • CEM322 series
    COM Express Type 6 Compact module with Intel® Pentium®, Celeron®, or Atom® x6000 Series processors
  • CEM530 series
    COM Express Type 6 Basic module with Intel® Xeon® or 9th/8th Gen Intel® Core™ processors and Intel® CM246/QM370 chipset
  • CEM561 series
    COM Express Type 6 Compact module with 13th/12th Gen Intel® Core™ or Intel® Celeron® processors
  • CEM570 series
    COM Express Type 6 Basic module featuring Intel® Core™ Ultra processor family (Meteor Lake-U/H)

Download

Drivers

Software

Manual

Date Description Version Download File
2026/06/10 User manual VA2
2025/10/27 User's manual VA4

Design Guide

Date Description Version Download File
2023/03/14 COM-Express-Technical-Manual_Design-Guide_V3 v3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
