CEB94011

Status : Available

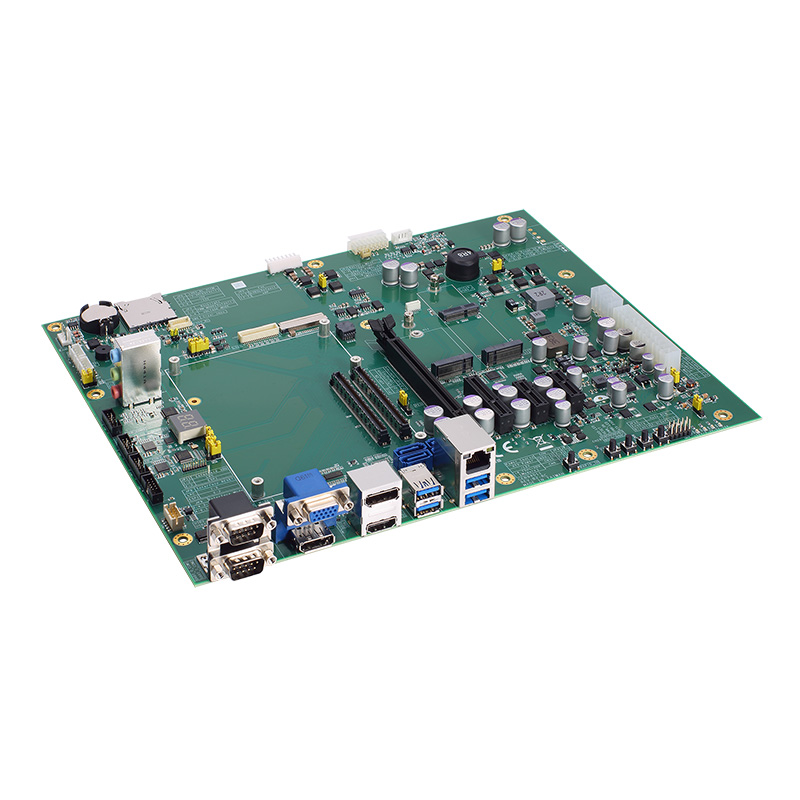

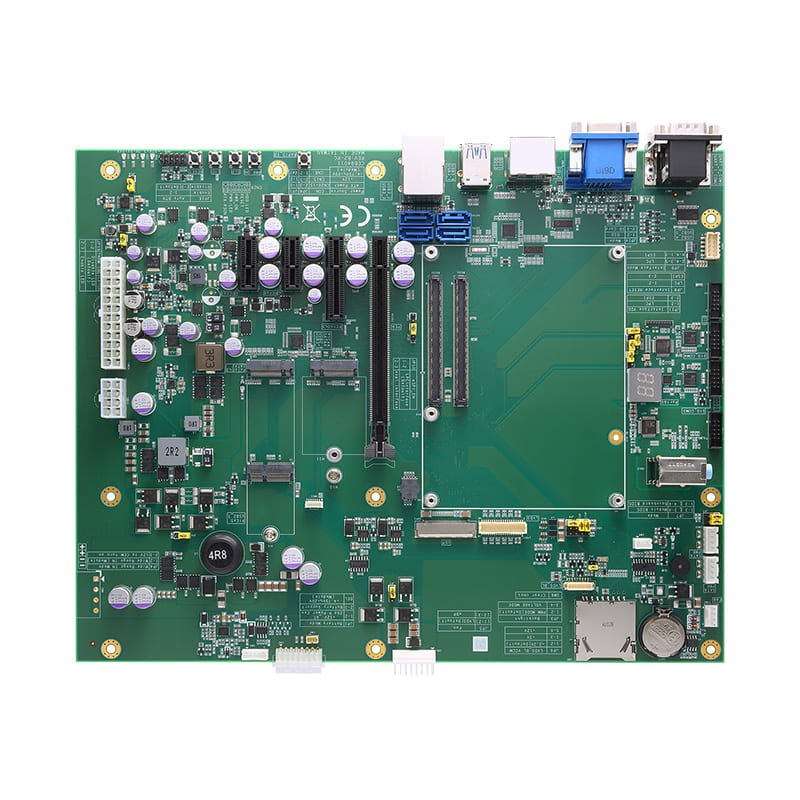

COM Express Type 6 Development Baseboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEB94011
CEB94011
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • COM Express type 6 baseboard for evaluation purposes
  • USB 3.2 Gen 2 supported
  • Supports M.2 Key M, B, and E
  • Port 80 display for debugging
  • Smart battery supported

Specifications

CPU
  • COM Express™ Type 6 module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
Serial
  • 2 x Serial TX/RX
USB
  • 4 x USB 3.2 Gen 2 (one USB 3.2 is alternative with M.2 key B USB 3.2)
Ethernet
  • 1 x RJ-45 for 10/100/1000/2500 Mbps
Display
  • 1 x LVDS; 18/24-bit dual channel
  • 1 x eDP
  • 1 x VGA
  • 1 x HDMI
  • 2 x DisplayPort
GPIO
  • 4-IN & 4-OUT
Audio
  • Line-in/Line-out/MIC-in
Storage
  • 4 x SATA-600
  • 1 x SD card socket
Expansion
  • 1 x PCIe x16
  • 1 x PCIe x4
  • 1 x M.2 Key E 2230 (PCIe x1, 1 x USB 2.0)
  • 1 x M.2 Key B 2242 (PCIe x1, USB 2.0 / optional USB 3.2 with USB-A, optional SATA with SATA port)
  • 1 x M.2 Key M 2280 (PCIe x4)
  • 2 x PCIe x1
Others
  • 1 x LPC interface
  • 1 x SPI interface
  • 1 x I2C
  • Port 80 display dual 7 segments port
  • Smart Battery (with AX98252)
Battery
  • Lithium 3V/220mAH
Power Input
  • AT/ATX Power
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • N/A
Dimensions
  • 243 x 305 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • CEB94011 (P/N-E394011101)
    COM Express Type 6 evaluation baseboard rev. B.x with PCI Express, 1 GbE LAN, HDMI/DisplayPort, and multiple I/O features
  • CEM312 series
    COM Express Type 6 Compact module with Intel Atom® x5 and x7 processor
  • CEM313 series
    COM Express Type 6 Compact module with Intel® Pentium® and Celeron® or Atom® x6000 series processors
  • CEM322 series
    COM Express Type 6 Compact module with Intel® Pentium®/Celeron® or Atom® x6000 series processors
  • CEM500 series
    COM Express Type 6 Basic module with Intel® Xeon®, 6th Gen Intel® Core™ i7/i5/i3 processor, and Intel® CM236/QM170/HM170
  • CEM501 series
    COM Express Type 6 Compact module with 6th Gen Intel® Core™ i7/i5/i3 and Celeron® processor
  • CEM510 series
    COM Express Type 6 Basic module with Intel® Xeon® E3/7th Gen Intel® Core™ i7/i5/i3 processors
  • CEM511 series
    COM Express Type 6 Compact module with 7th Gen Intel® Core™ and Celeron® processor
  • CEM521 series
    COM Express Type 6 Compact module with 8th Gen Intel® Core™ and Celeron® processor
  • CEM530 series
    COM Express Type 6 Basic module with Intel® Xeon® or 9th/8th Gen Intel® Core™ processor and Intel® CM246/QM370
  • CEM561 series
    COM Express Type 6 Compact module with 13th/12th Gen Intel® Core™ or Celeron® processor

Download

Drivers

Date Description Version Download File
2018/01/03 Audio VA1.1

Software

Manual

Date Description Version Download File
2025/11/04 CEB94011 User's Manual VA3_09-24-2019 VA3
2019/10/03 CEB94011 User's Manual VA2_07-12-2017 VA3

Design Guide

Date Description Version Download File
2018/08/17 COM Express Technical Manual and Design Guide V3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity

You Might Also Like

Picture of CEM312

CEM312

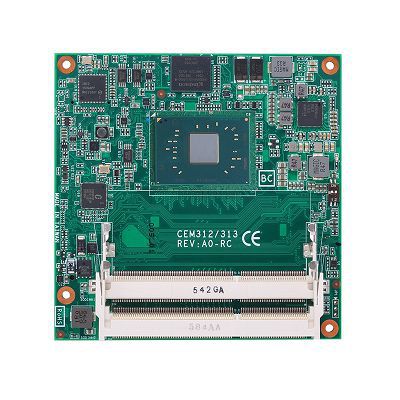

Picture of CEM313

CEM313

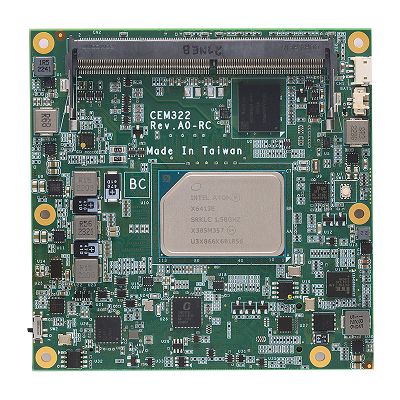

Picture of CEM322
