CEB94017

Status : Available

COM Express Type 10 Development Baseboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CEB94017
CEB94017
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • COM Express type 10 baseboard for evaluation purposes
  • USB 3.2 Gen 2 supported
  • Supports Mini PCIe slot
  • Port 80 display for debugging
  • Smart battery supported

Specifications

CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
Serial
  • 1 x LPC interface
  • 1 x SPI interface
  • 2 x Serial TX/RX
USB
  • 2 x USB 3.2 Gen 2
  • 8 x USB 2.0
Ethernet
  • 1 x RJ-45 for 10/100/1000/2500 Mbps
Display
  • 1 x LVDS; 18/24-bit single channel 1 x eDP
  • 1 x HDMI
  • 1 x DisplayPort
GPIO
  • 4-CH in & 4-CH out
Audio
  • 1 x Audio jack
Storage
  • 2 x SATA 3.0
Expansion
  • 1 x PCIe x4
  • 4 x PCIe x1
  • 1 x Mini PCle (PCle x1)
Others
  • 1 x I2C
  • 1 x SD card reader (alternative with DIO 4-in/4-out)
  • Port 80 display
  • SMBus
  • Smart battery
Battery
  • Lithium 3V/220mAH
Power Input
  • AT/ATX power
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC to +85ºC (-40ºF to +185ºF)
Vibration
  • N/A
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 293.4 x 171.5 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • CEB94017 (P/N-E394017102)
    COM Express Type 10 evaluation baseboard rev. B.x with PCI Express, 2.S GbE LAN, HDMI/DisplayPort, and multiple I/O features
  • CEM846 series
    COM Express Type 10 Mini Module with InteI Atom® E3800
  • CEM310 series
    COM Express Type 10 Mini Module with InteI Atom® x5 and x7 processor
  • CEM311 series
    COM Express Type 10 Mini Module with InteI® Pentium® processor N4200 & Celeron® Processor N3350
  • CEM320 series
    COM Express Type 10 Mini Module with Intel Atom® x6000E/RE series or Intel® Celeron® N/J series
  • CEM330 series
    COM Express Type 10 Mini Module with Intel Atom® X7000 or InteI® Core™ i3, N-series processors
  • CEM568 series
    COM Express Type 10 Mini Module with 13th Gen InteI® Core™ or processor U300E

Download

Drivers

Date Description Version Download File
2019/11/20 HD Audio VA1.2

Software

Manual

Date Description Version Download File
2026/04/30 CEB94017B User's Manual VB0_04-30-2026 VB0

Design Guide

Date Description Version Download File
2023/03/14 COM-Express-Technical-Manual_Design-Guide_V3 v3.1

Technical Announcement

Certificates

Date Description Version Download File
2021/12/07 UKCA Declaration of Conformity

You Might Also Like

Picture of CEM310

CEM310
Picture of CEM311

CEM311
Picture of CEM320

CEM320
NEW
Picture of CEM330

CEM330

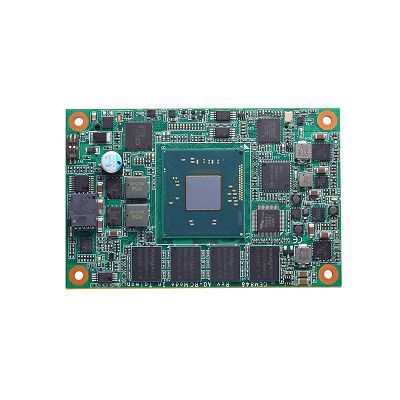

Picture of CEM846
