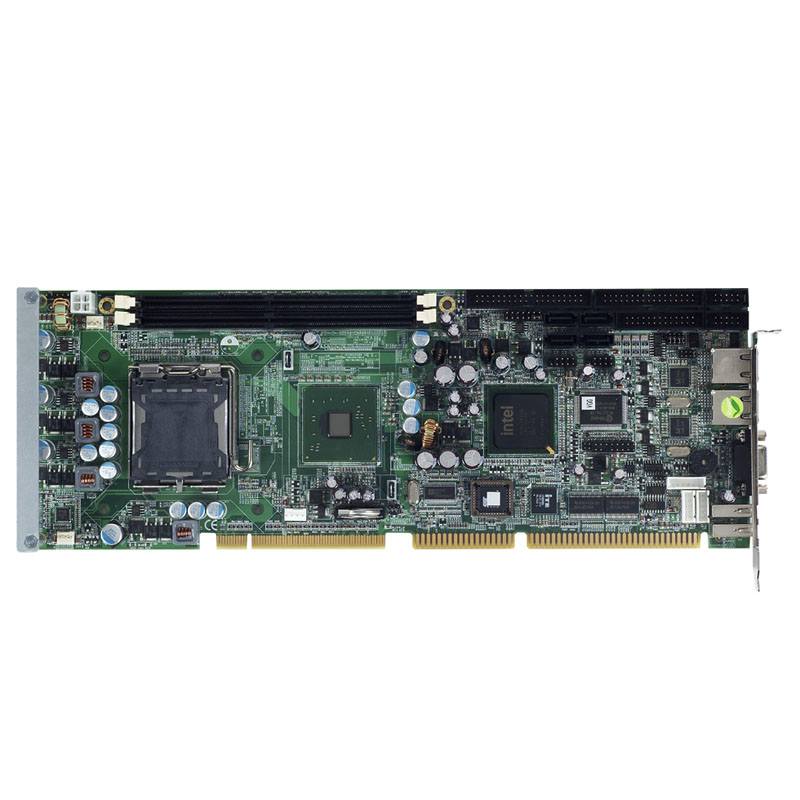

SBC81206

The cost-effective SBC81206 PICMG 1.0 PCI/ISA single board computer is based on the Mobile Intel® 945GC Express chipset to support Intel® Core™2 Duo processor in LGA775 socket with up to 800MHz FSB. The new Intel® GMA 950 graphics core is built into the Mobile Intel® 945GC Express chipset, which features powerful graphics performance and excellent visual quality for multi-media environments. The SBC81206 full size single board computer also supports high bandwidth dual-channel DDR2 533/677 DIMM sockets up to 2GB memory. With AXIOMTEK¡¦s SBC81206 single board computer, it is a great opportunity to upgrade your system with powerful yet energy-efficient Intel® Core™2 Duo processor.

• LGA775 for Intel® Core™2 Duo/Pentium® D/Pentium® 4/Celeron® processors with 533/800 MHz
• Intel® 945GC + ICH7/7R
• 2 DDR2 DIMM support up to 2GB memory capacity
• With Intel® GMA 950 high performance integrated graphics controller
• ISA with up to 500mA high drive supported

• SBC81206VGG (P/N-E381206100) LGA775 socket PICMG 1.0 full-size CPU card with VGA, 2 10/100/1000Mbps
• SBC81206VGGR (P/N-E381206101) LGA775 socket PICMG 1.0 Full-size CPU card with VGA, 2 10/100/1000Mbps and RAID
• SBC81206VG (P/N-E381206102) LGA775 socket PICMG 1.0 full-size CPU card with VGA, 10/100/1000Mbps
• E9C900B001 LGA775 P4 cooler3-pin H
• 5938A808010E 2 x USB port cable, L=190mm
• 59380000290E PS/2 keyboard & mouse cable with bracket
• E93242100 AX93242-RC HD audio converter kit
