NA-820

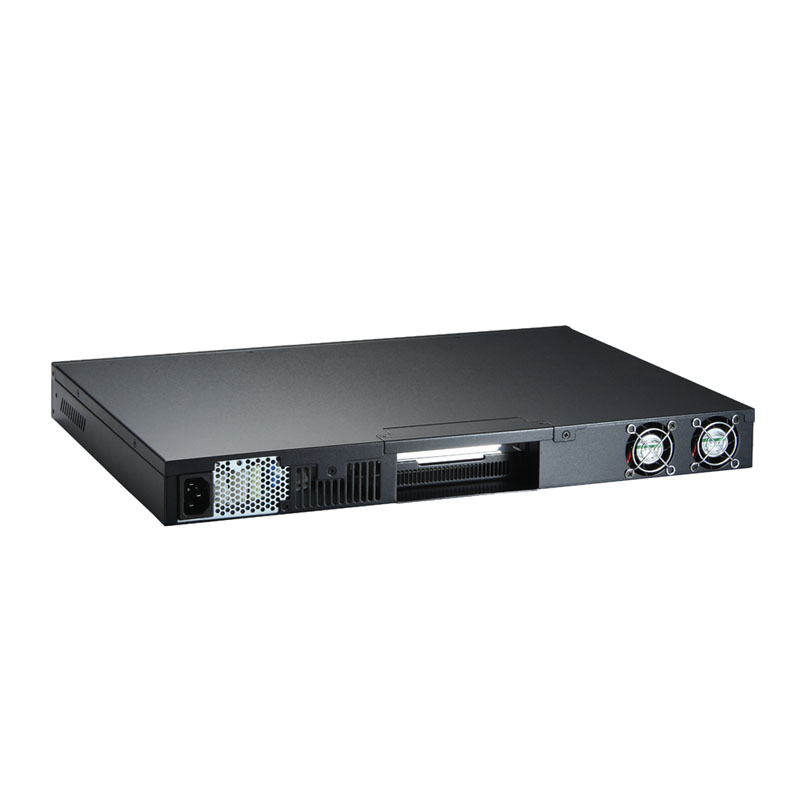

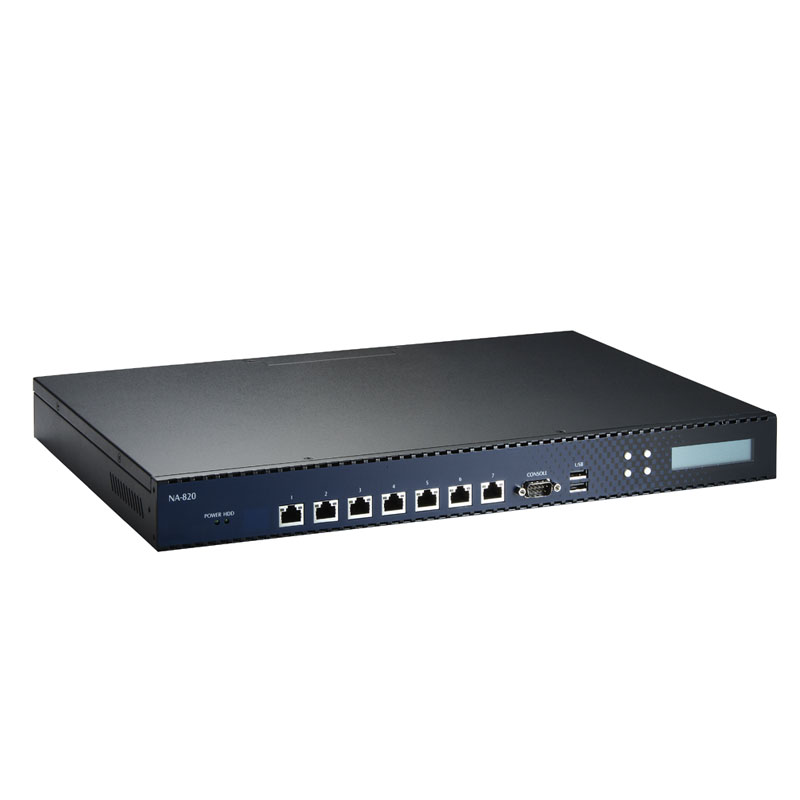

1U Rackmount Network Appliance Platform with LGA775 Intel® Core™2 Duo Processor and 7 LANs

  • Features
  • Ordering Information
  • Download
  • Related Products
    • LGA775 socket Intel® Pentium® 4/ Pentium® D/ Core™2 Duo processors
    • Supports seven 10/100/1000Mbps Ethernet ports (Intel® 82573L)
    • Supports BIOS redirected to COM port
    • Support one 2.5" IDE or SATA HDD
    • Suitable for VPN, network bandwidth controller, firewall and UTM applications

    Introduction

    The NA-820 is a 1U rackmount network security hardware platform for VPN, firewall and other network security applications. It supports LGA775 socket for Intel® Pentium® 4 processors and Core™2 Duo processor, and up to 4GB of two DDR II DIMM memory. For storing event log data, the NA-820 utilizes one internal 2.5" HDD. It also supports LAN bypass function for two LAN groups through WDT and GPIO pin definition without downtime. The NA-820 is a dual core and high performance solution for Small to Medium sized businesses.

    • NA-820-R7GI
      1U high performance network appliance with LGA775 socket for Intel® Pentium® 4/Core™2 Duo CPU, 7 10/100/1000Mbps
    • CK9A102
      Cable kit (P/N-880800006A0E)
  • BIOS

    Date Description Version File Size
    2010/1/11 Standard BIOS A12.10.0.057 449.2KB

    Drivers

    Date Description Version File Size
    2010/1/11 IAA driver Driver CD A1.2 18,502.9KB
    2010/1/11 Chipset driver Driver CD A1.2 847.4KB
    2010/1/11 VGA Driver Driver CD A1.2 35,541.7KB
    2010/1/11 Ethernet Driver Driver CD A1.2 60,595.8KB
    2010/1/11 WDT&Lan Bypass demo code For Linux Driver CD A1.2 33.3KB
    2010/1/11 AX89063 LCM Test Utility Driver CD A1.2 369.6KB

    Manual

    Date Description Version File Size
    2010/1/11 User's manual A2 1,619.0KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    The object is under update temporarily, please download it later.

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    The object is under update temporarily, please download it later.
