PICO831

Intel® Atom™ N2600/ N2800 Pico-ITX SBC with Intel® NM10 Chipset, LVDS/ VGA, LAN and Audio

  • Features
  • Ordering Information
  • Download
  • Related Products
    • Intel® Atom™ processor N2800 (1.8 GHz)/ N2600 (1.6 GHz) dual core onboard
    • 1 DDR3 SO-DIMM supports up to 4 GB memory capacity
    • 4 USB 2.0 ports
    • 2 COM ports
    • Display: LVDS, VGA

    Introduction

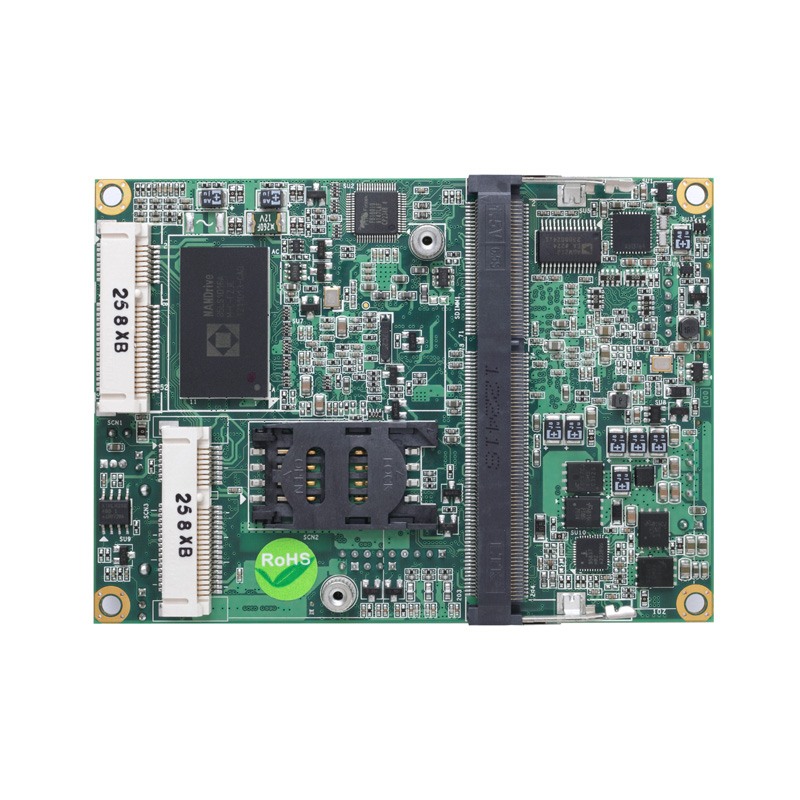

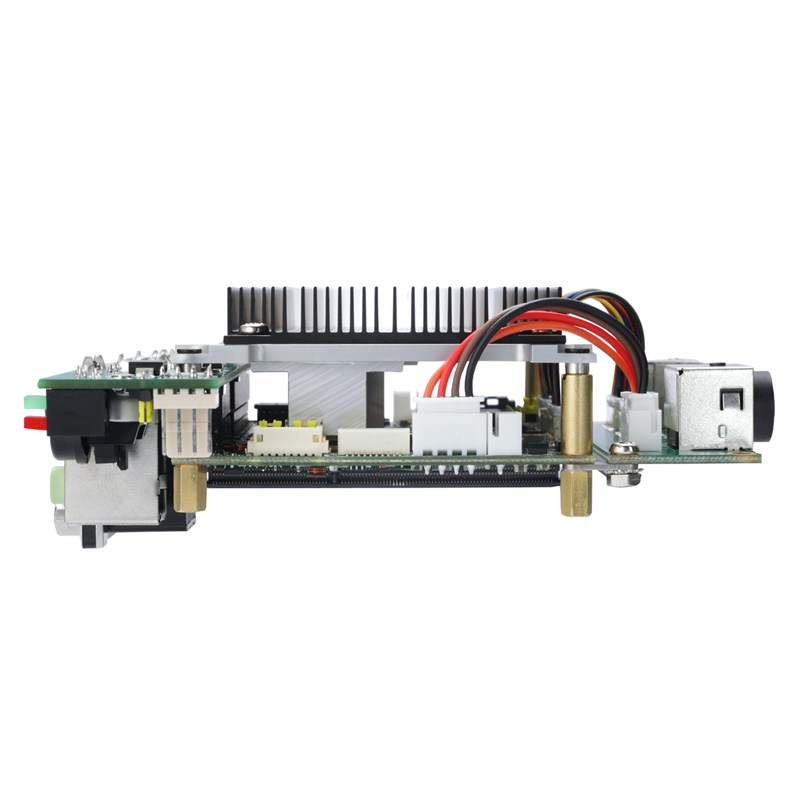

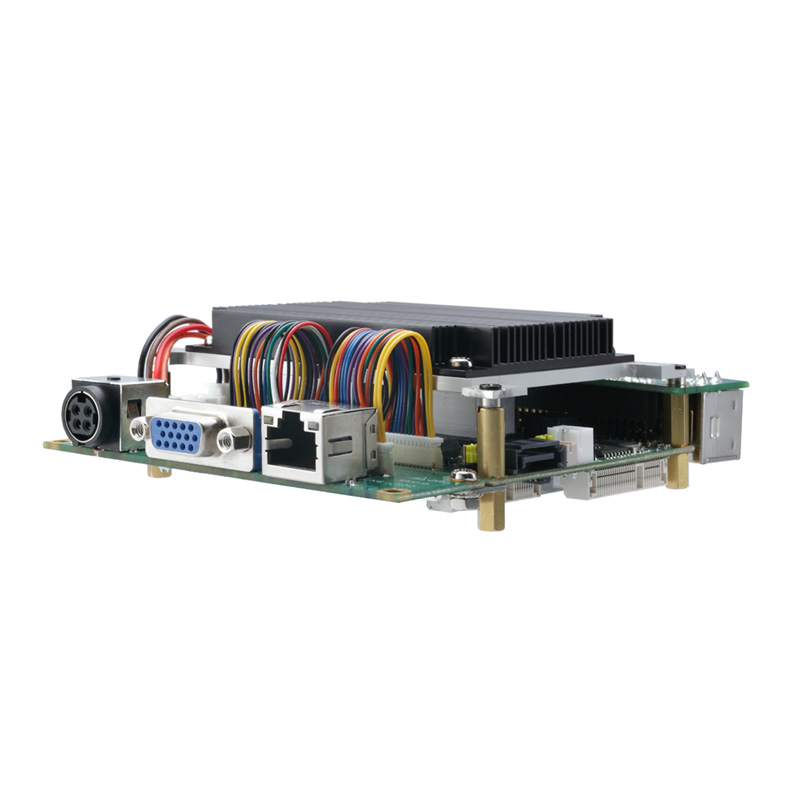

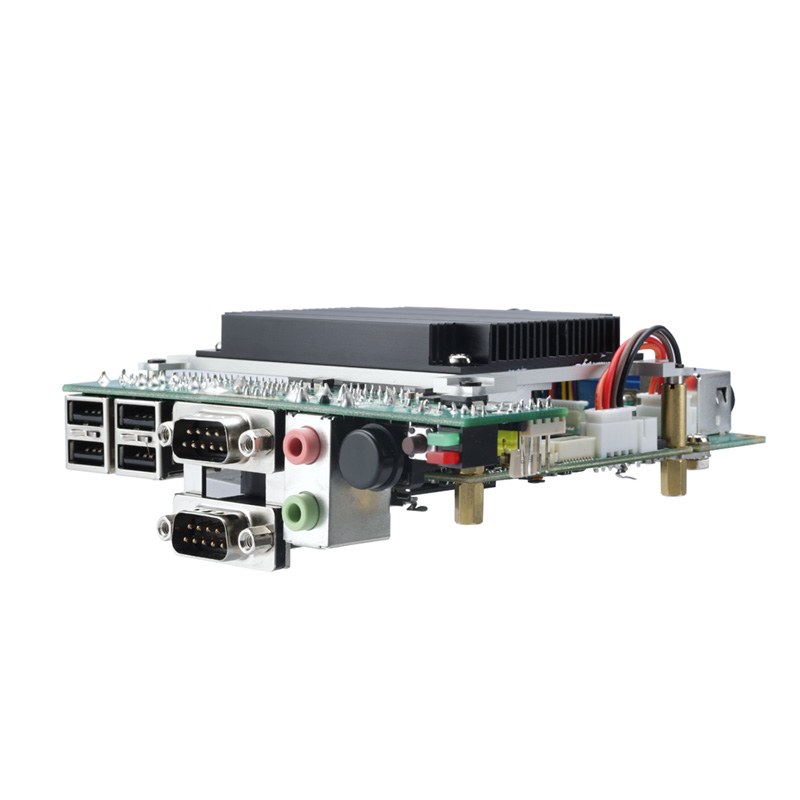

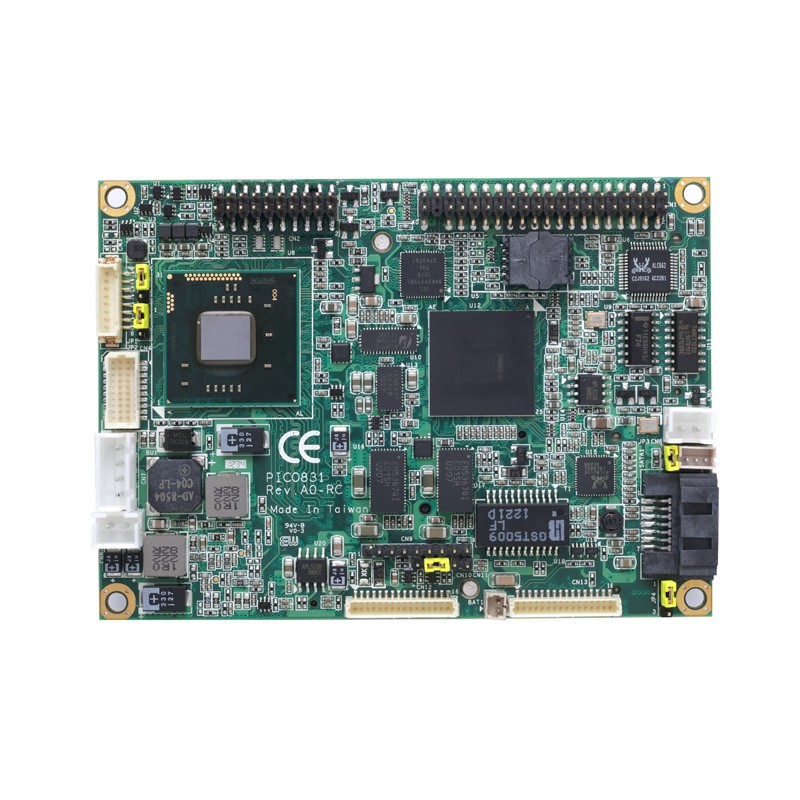

    The PICO831 extreme-compact Pico-ITX SBC is designed to support the newest ultra low-power Intel® Atom™ dual core processor N2800 1.86 GHz and N2600 1.6 GHz with the Intel® NM10 Express chipset. The PICO831's compact size, ultra low power consumption, and high performance make it a perfect fit for space-limited and power saving environments. The system memory on PICO831 can support either 2 GB or 4 GB of DDR3, depending on the processor. Its onboard SATA-3Gb/s connector and optional SATA SSD meet storage requirements with ease. Considering to the various demands and networking requests, the tiny embedded board comes with full-size and half-size PCI Express Mini Card slots. It also provides internal connectors for VGA, 18/24-bit single channel LVDS and a Gigabit Ethernet, and a flexible I/O pin-header that integrates audio, four of USB 2.0, two of COM, LED, and power on/off interfaces. This Pico-ITX form factor board offers an excellent solution for in-vehicle PCs, medical imaging, gaming, in-flight entertainment systems, industrial automation systems, and the portable devices

    • PICO831VGA-N2600 (P/N-E38H831101)
      Pico-ITX SBC with Intel® Atom™ processor N2600 1.6 GHz, VGA/LVDS, 1 10/100/1000Mbps, 2 COM, 4 USB and Audio
    • PICO831VGA-N2800 (P/N-E38H831100)
      Pico-ITX SBC with Intel® Atom™ processor N2800 1.8 GHz, VGA/LVDS, 1 10/100/1000Mbps, 2 COM, 4 USB and Audio
  • BIOS

    Date Description Version File Size
    2013/6/20 PICO831 BIOS V1.00 1,142.3KB

    Drivers

    Date Description Version File Size
    2013/6/20 Chipset Driver V1.0 2,537.4KB
    2013/6/20 Graphic driver V1.0 14,662.2KB
    2013/6/20 LAN driver V1.0 3,705.4KB
    2013/6/20 uAPI driver A1.0 24,045.8KB
    2013/6/20 Audio driver A1.0 79,766.4KB

    Manual

    Date Description Version File Size
    2013/6/20 PICO831 User's Manual A1.0 5,103.7KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    Date Description Version File Size
    2013/3/7 PICO831 CE-Conformity Declaration N/A 26.7KB

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    The object is under update temporarily, please download it later.
