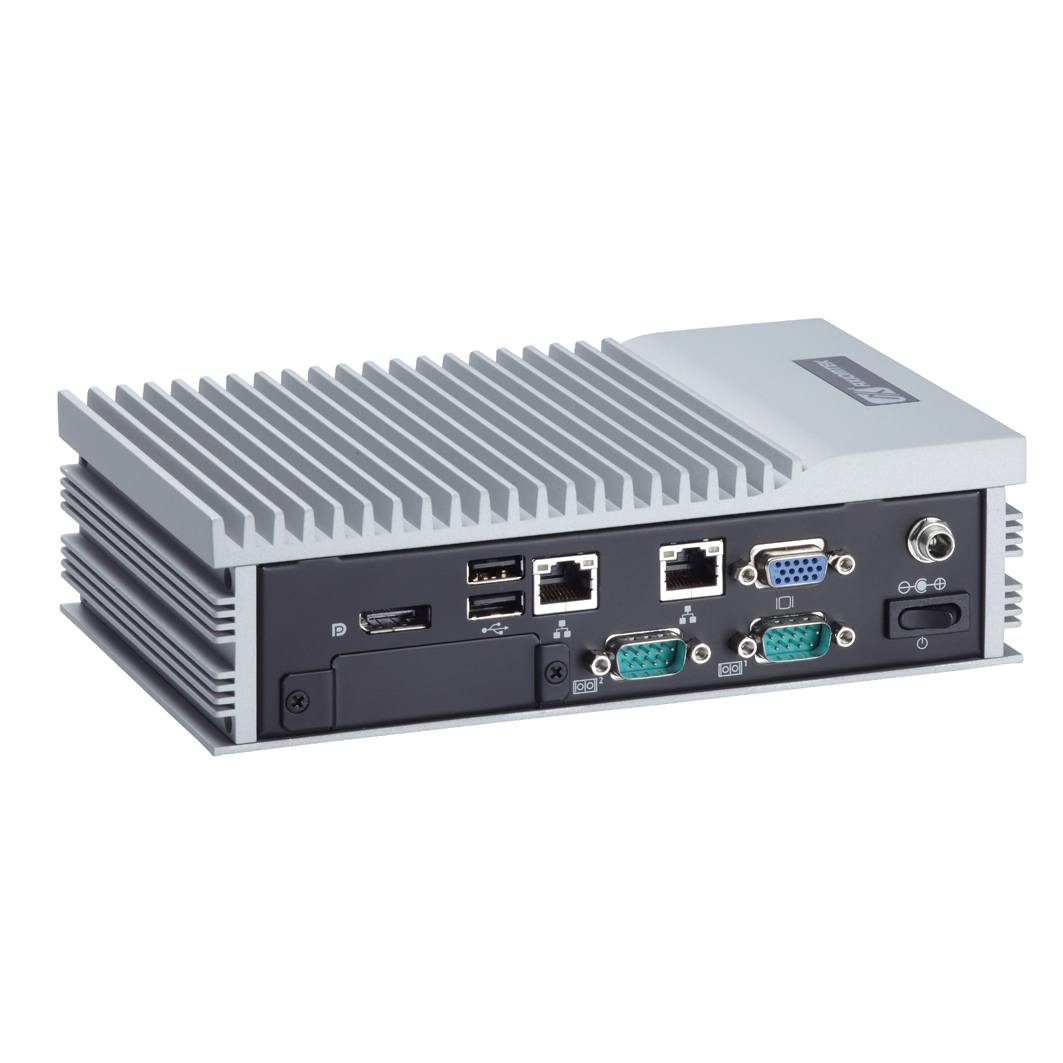

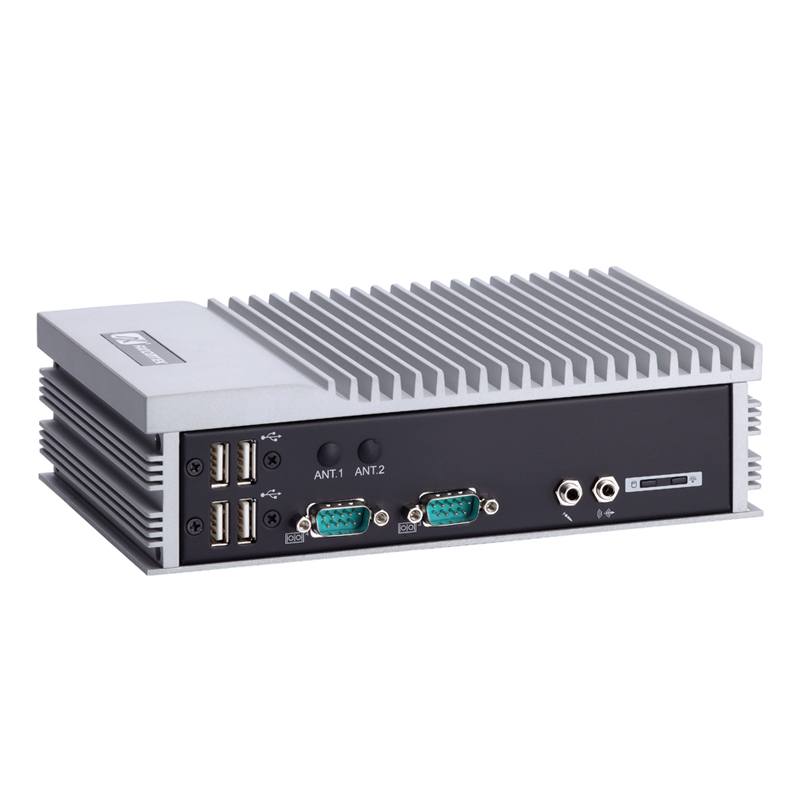

eBOX623-831-FL

Fanless Embedded System with Intel® Atom™ Processor N2600 1.6 GHz or D2550 1.86 GHz, VGA and DisplayPort, 2 GbE LAN,6 USB and 4 COM

  • Features
  • Ordering Information
  • Download
  • Related Products
    • Intel® Atom™ Cedarview processor N2600 1.6 GHz dual core/D2550 1.86 GHz dual core
    • Intel® NM10 chipset
    • Supports Jumbo Frame(9k), WoL, PXE Remote Boot
    • High performance 204-pin DDR3-1066/1333 SO-DIMM max.up to 4 GB
    • One 2.5 SATA drive bay and 1 CFast™ slot ,mSATA
    • Supports VGA and DisplayPort dual display

    Introduction

    Axiomtek ultra low-power fanless embedded system with Intel® Cedar Trail platform and dual display interfaces, the eBOX623-831-FL, is available now! It provides advanced graphics processing capability via the new dual core Intel® Atom™ Cedarview processor N2600 at 1.6 GHz or D2550 1.86 GHz in 45nm technology with Intel® NM10 Express chipset. This slim yet compact embedded system supports system memory of one 204-pin DDR3 800 MHz maximum up to 2 GB with N2500 and DDR3 1066/1333 MHz maximum up to 4 GB with D2550. By adopting the new Intel® Cedar Trail platform, fanless eBOX623-831-FL boosts graphics performance and power efficiency. With the optimized graphics capability and dual view support (VGA and DisplayPort), the rugged unit is an ideal fit for automatic optical inspection, digital signage appliance (DSA), POS/Kiosk, embedded controller, factory automation and more applications.

    • eBOX623-831-FL-D2550-US
      Fanless embedded system with Intel® Atom™ processor D2550 1.86 GHz, VGA, DisplayPort, 2 GbE LAN, 6 USB, 4 COM, 60W AC/DC adapter, US power cord
    • eBOX623-831-FL-D2550-EU
      Fanless embedded system with Intel® Atom™ processor D2550 1.86 GHz, VGA, DisplayPort, 2 GbE LAN, 6 USB, 4 COM, 60W AC/DC adapter, EU power cord
    • eBOX623-831-FL-N2600-US
      Fanless embedded system with Intel® Atom™ processor N2600 1.6 GHz, VGA, DisplayPort, 2 GbE LAN, 6 USB, 4 COM, 60W AC/DC adapter, US power cord
    • eBOX623-831-FL-N2600-EU
      Fanless embedded system with Intel® Atom™ processor N2600 1.6 GHz, VGA, DisplayPort, 2 GbE LAN, 6 USB, 4 COM, 60W AC/DC adapter, EU power cord
    • 2.5 SATA HDD
      40 GB or above
    • 2.5 SATA SSD
      4 GB or above
    • DDR3 SODIMM
      1 GB ~ 4 GB (regarding to CPU model)
    • CFast™
      512 MB or above
    • Wifi module
    • USB wifi module
    • GPS module
    • Graphic codec module
    • Wall mount kit
    • Din rail kit
    • VESA mount kit
    • Power cord
  • BIOS

    The object is under update temporarily, please download it later.

    Drivers

    Date Description Version File Size
    2014/5/5 Audio Driver VA1.1 79,843.2KB
    2014/5/5 Chipset Driver VA1.1 2,617.0KB
    2014/5/5 Ethernet Driver VA1.1 27,417.0KB
    2014/5/5 Graphic Driver VA1.1 14,832.4KB
    2014/5/5 TPM Driver VA1.1 52,962.6KB

    Manual

    The object is under update temporarily, please download it later.

    Software

    Date Description Version File Size
    2014/5/5 uAPI utility N/A 24,051.7KB

    CE Conformity Declaration

    Date Description Version File Size
    2013/3/21 eBOX623-831-FL CE Conformity Declaration N/A 23.1KB

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    Date Description Version File Size
    2014/2/6 eBOX623-831-FL OD B0 B0 188.7KB
